Shop SCHAEFER

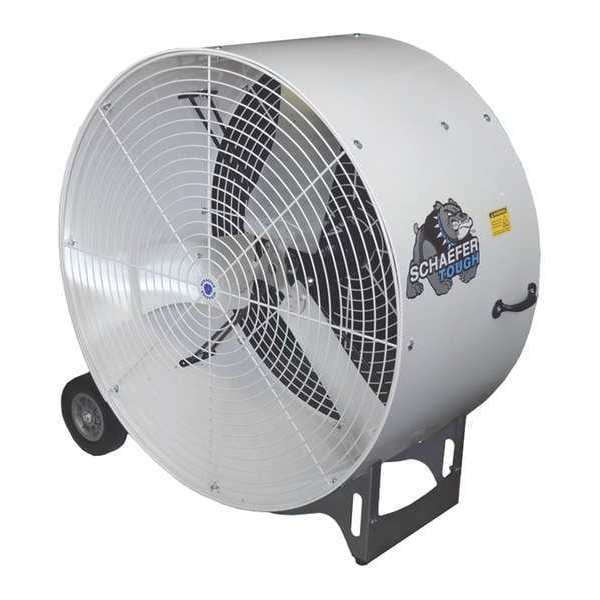

Standard Duty Air Circulator, Floor Mount, 36 in Blade Dia, 115V, 11,700 cfm, Non-Oscillating

  • Mfr # VKM36-O

  • Zoro # G8834463

product price:
$
835.99
/ea
Additional $120.00 delivery surcharge applies per item.
See details
Zoro's best price: not eligible for any other offers or promotions

Key Features

Blade Diameter
36 in
Oscillation
Non-Oscillating
Number of Speeds
1
Voltage
115/230V AC
Phase
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
VKM36-O
Zoro #
G8834463
UPC #
-
Country of Origin
United States

Dimensions

Blade Diameter
36 in
Width
40 3/4 in
Shaft Dia.
5/8 in
Outside Dia.
37-3/4"
Max. Depth
19-3/4"
Height
39 3/4 in
Depth
19 3/4 in
Fan Cord Length
5 ft

Details

Oscillation
Non-Oscillating
Number of Speeds
1
Voltage
115/230V AC
Phase
Single
Motor HP
1/2 hp
Air Flow
11,700 cfm
Drive Type
Direct Drive
Blade Material
Steel
Sound Level
75 dBA
Item
Circulating Fan
CFM/Watt
25.1
Motor RPM
825
Environmental Applications
Industrial
Standards
AMCA Standard 230.99
Max. Ambient Temp.
104 Degrees F
Wire Guard Finish
Powder Coated
Application
Spot Cooling and People Cooling
Guard Material
Steel
Thermal Protection
Auto
Motor Type
Permanent Split Capacitor
Number of Blades
3
Assembled
Yes
Motor Insulation
F
Fan Mounting Location
Floor
CFM High
11,000
Air Velocity @ 10 Ft.
700 fpm
Air Velocity @ 20 Ft.
550 fpm
Mobile/Stationary
Mobile
Fan Style
Standard
Fan Accessory Style
Standard
Hz
60 Hz
Air Velocity @ 40 Ft.
400 fpm
Watts
439 W
Housing Material
Polyethylene
Motor Enclosure
Totally Enclosed Air-Over
Bearing Type
Ball
Wheeled Base
Mobile
Amps
7/3.5 A
Fan Housing Material
Polyethylene
Assembly Required
No
RPM
865 RPM
Material
Polyethylene
Color
White
Motor hp
1/2 hp
Bearing Protection
Sealed
Fan Shape
Drum
Fan Power Source
Plug-In
For Location
Barn, Fitness Center, Manufacturing Plant, Warehouse
Guard Color
White
Features
Stackable
Airflow
11,700 cfm
Removable Base
Permanently Lubricated

Description

Standard-Duty Industrial Fan, Blade Dia. 36 in, Mobile, Non-Oscillating, 1 Speeds, Voltage 115/230V AC, 1 Phase, CFM High 11,000, Air Velocity @ 20 Ft. 550 fpm, Motor HP 1/2 hp, Motor RPM 825, Operating Amps 7.0/3.5, Fan Mounting Location Floor, Fan Accessory Style Standard, Fan RPM 865, Sound Level 75 dBA, Max. Ambient Temp. 104 Degrees F, Hz 60 Hz, Watts 439, Motor Type Permanent Split Capacitor, Drive Type Direct Drive, Outside Dia. 37-3/4 In., Height 39 3/4 in, Width 40 3/4 in
