  9. Standard Duty Air Circulator, Floor Mount, 42 in Blade Dia, 115V, 7700/11,000 cfm, Non-Oscillating

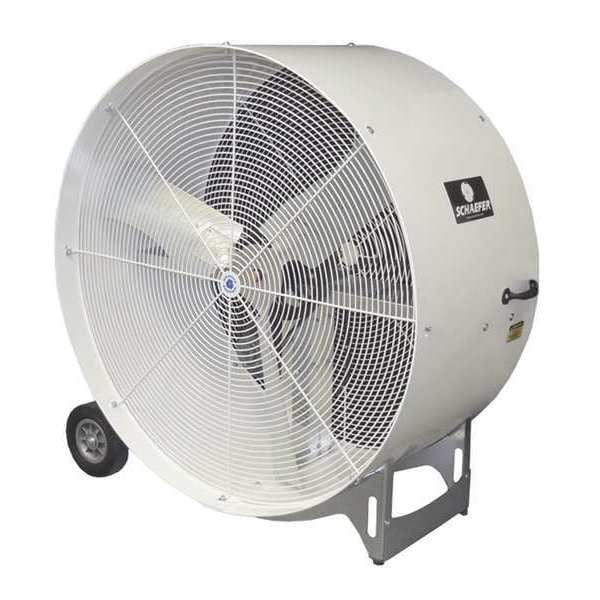

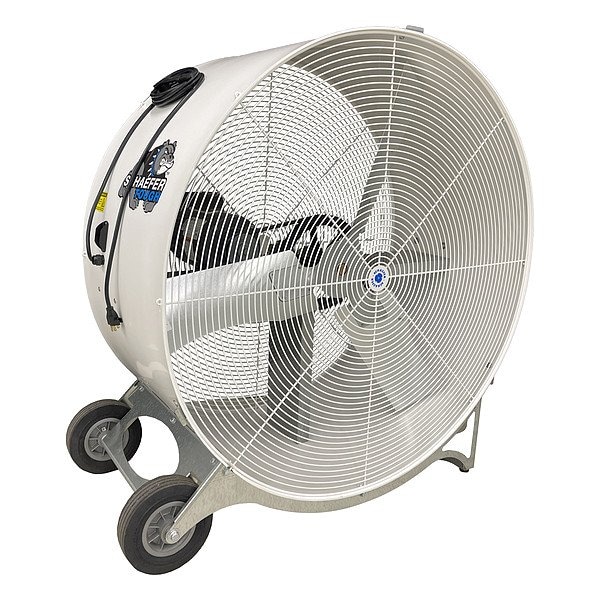

Schaefer Standard Duty Air Circulator, Floor Mount, 42 in Blade Dia, 115V, 7700/11,000 cfm, Non-Oscillating VKM42-2-O - main

Standard Duty Air Circulator, Floor Mount, 42 in Blade Dia, 115V, 7700/11,000 cfm, Non-Oscillating

  • Mfr # VKM42-2-O

  • Zoro # G2218697

product price: $1,471.99
/ea
Item requires special delivery charges. A $140.00 per item surcharge will be applied.

Key Features

Blade Diameter
42 in
Oscillation
Non-Oscillating
Number of Speeds
2
Voltage
115V
Phase
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
VKM42-2-O
Zoro #
G2218697
UPC #
-
Country of Origin
United States

Dimensions

Blade Diameter
42 in
Outside Dia.
43-3/4 in
Height
45-3/4 in
Width
45-1/2 in
Shaft Dia.
5/8 in
Max. Depth
22 in
Fan Cord Length
5 ft
Depth
22 in

Details

Oscillation
Non-Oscillating
Number of Speeds
2
Voltage
115V
Phase
1
Motor HP
3/4
Air Flow
7700/11,000 cfm
Drive Type
Belt Drive
Blade Material
Galvanized Steel
Sound Level
72 dBA
Item
Air Circulator
Wire Guard Finish
Gloss Powder Coated
Guard Material
Steel
CFM Low
10900
Motor Insulation
Class B
Max. Ambient Temp.
104 Degrees F
Hz
60
CFM High
16600
Air Velocity @ 40 Ft.
300 fpm
Environmental Applications
Industrial
Motor Type
Permanent Split Capacitor
Air Velocity @ 10 Ft.
700/450 fpm
Fan Mounting Location
Floor
Housing Material
Polyethylene
Assembled
Yes
Fan Style
Standard Duty
CFM/Watt
14.7/25.6
Standards
UL, cUL, CSA
Application
Spot Cooling and People Cooling; Air Circulation
Motor Enclosure
Totally Enclosed Air Over
Watts
1129/425 W
Number of Blades
3
Air Velocity @ 20 Ft.
425 fpm
Bearing Type
Self-Aligning Pillow Block Bearings
Motor RPM
565/379 RPM
Thermal Protection
Automatic
Fan Accessory Style
Standard
Mobile/Stationary
Mobile
RPM
565/379
Assembly Required
No
Amps
12.3/5.6
Wheeled Base
Mobile
Fan Housing Material
Polyethylene
Material
Polyethylene
Color
White
Motor hp
3/4 hp

Description

Circulating Fan, Fan Mounting Location Floor, Number of Speeds 2, Blade Dia. 42 in, Non-Oscillating, Fan Cord Length 5 ft, Fan Power Source Plug-In, 1129/425 W Watts, 379 RPM, 565 RPM RPM, Number of Blades 3, 12.3/5.6 A Amps, Height 45 3/4 in, Width 45 1/2 in, 60 Hz Hz, Bearing Type Self-Aligning Pillow Block Bearings, Blade Material Steel, Steel, White, AMCA Standard 230.99
