  11. Flanged Ball Bearing, 1-3/8in dia, 1/2in W

This item is Discontinued.

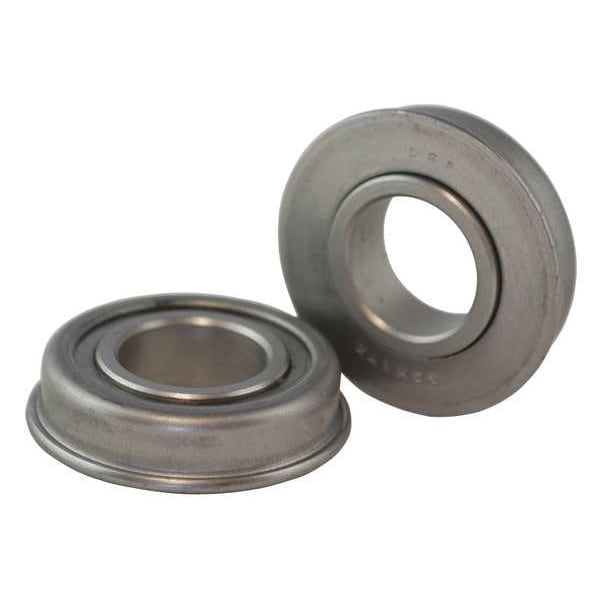

Schatz Bearing Flanged Ball Bearing, 1-3/8in dia, 1/2in W TW6

Flanged Ball Bearing, 1-3/8in dia, 1/2in W (Discontinued)

  • Mfr # TW6
  • Zoro # G1895568
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TW6
Zoro #
G1895568
UPC #
-
Country of Origin
United States

Dimensions

Bore Dia.
0.5 in
Outside Dia.
1.375 in
Width
0.5 in
Flange Dia.
1 17/32 in
Flange Thickness
0.06 in
Flange Diameter
1.53 in
Bore Diameter
1/2 in
Outside Diameter
1 3/8 in
Outer Ring Width
0.5 in

Details

Item
Unground Flanged Radial Ball Bearing
Bearing Type
Ball
Seal Material
Synthetic Rubber
Ball Material
Carbon Steel
Dynamic Load Capacity
120 lb
Max. RPM
500 RPM
Lubrication
Gadus S2 V100 2
Temp. Range
-25 Degrees to 130 Degrees F
Flange Type
Flanged
Closure
Double Sealed
Bearing Industry Number
TW6
Minimum Temperature
-25 Degrees F
Ring Material
Alloy Steel
Maximum Temperature
130 Degrees F
Includes Retaining Ring
No
Lubricant Material
Gadus-S2-V100-2
Application
Baggage Systems, Conveyors, Food Processing Equipment, Material Handling, Medical Processing
Dynamic Radial Load Capacity
120 lbf
Seal Type
Contact
Maximum Speed
500 RPM
System of Measurement
Inch

Description

Unground Flanged Radial Ball Bearing, Bearing Industry Number TW6, Bore Diameter 1/2 in, Closure Double Sealed, Outer Ring Width 0.5 in, Outside Diameter 1 3/8 in, Ring Material Alloy Steel, Seal Type Contact, System of Measurement Inch, Application Baggage Systems, Conveyors, Food Processing Equipment, Material Handling, Medical Processing, Ball Material Carbon Steel, Dynamic Radial Load Capacity 120 lbf, Flange Diameter 1.53 in, Flange Thickness 0.06 in, Flange Type Flanged
