  13. Deadbolt, HD, Oil Rubbed Bronze, 6 Pins

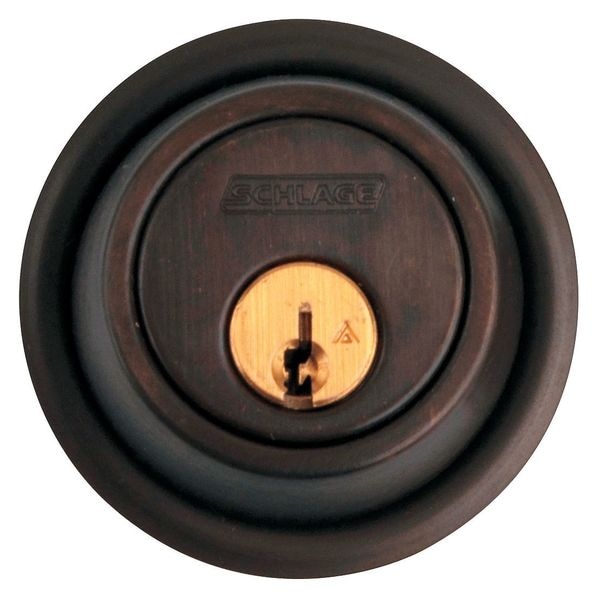

Schlage Deadbolt, HD, Oil Rubbed Bronze, 6 Pins B562P 613 - main

Deadbolt, HD, Oil Rubbed Bronze, 6 Pins

  • Mfr # B562P 613

  • Zoro # G5144194

product price: $116.99
/ea
Free Shipping & Returns

Key Features

Mortise / Cylindrical
Cylindrical
Location Type
Commercial
Lockset Grade
1
Series
B560
For Door Thickness
1-3/8 in to 1-7/8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
B562P 613
Zoro #
G5144194
UPC #
-
Country of Origin
Mexico

Dimensions

For Door Thickness
1-3/8 in to 1-7/8 in
Throw Length
1 in
Faceplate Height
2 1/4 in
Strike Plate Height
2 3/4 in
Door Thickness - Maximum
1 7/8 in
Strike Plate Width
1 1/8 in
Door Thickness - Minimum
1 3/8 in
Faceplate Width
1 1/8 in

Details

Mortise / Cylindrical
Cylindrical
Location Type
Commercial
Lockset Grade
1
Series
B560
Lockset Finish
Oil Rubbed Bronze
Keyway Type
Everest 29 S123
Key Type
Keyed Different
Standards
ANSI/BHMA A156.36-2020, BAA/TAA, CAN/ULC-S104, UL and cUL Listed
ADA Compliant
Yes
Item
Deadbolt Lock
Material
Bronze
Number of Keys
2
Lockset Fire Rating
Not Rated
Backset
2 3/8 in
Security Type
Medium-Duty
Ligature Resistant
No
Strike
Square Corner
Includes
Hardware
Pins
6
Cylinder
Double
Mortise/Cylindrical
Cylindrical
Type
Heavy Duty
Keying
Different
Grade
1
Application
Residential
Hardware
Included
Number of Pins
6
UL Fire Rating
UL10B, UL10C
Visual Indicator Message
No Message
Locking/Unlocking Access - Outside
Keyway
Fire Rating
3 hr
ANSI Grade
2
ANSI/BHMA Finish
Dark Oxidized Satin Bronze, Oil Rubbed
Ligature-Resistant
Not Ligature-Resistant
Includes Hardware
Hardware Included
Cylinder Core Type
Conventional Core Cylinder
Locking/Unlocking Access - Inside
Keyway
Includes Core
Core Included

Description

Deadbolt Lock, Cylindrical, Commercial, Lockset Grade 1, Series B560, Lockset Finish Oil Rubbed Bronze, Keyway Type Everest 29 S123, Key Type Keyed Different, Standards ANSI/BHMA A156.36-2020, BAA/TAA, CAN/ULC-S104, UL and cUL Listed, ADA Compliant Yes, Lockset Fire Rating Not Rated, Backset 2 3/8 in, Ligature Resistant No, Cylinder Double, For Door Thickness 1 3/8 in to 1 7/8 in, Includes Hardware, Material Bronze, Number of Keys 2, Pins 6, Security Type Medium-Duty, Strike Square Corner
