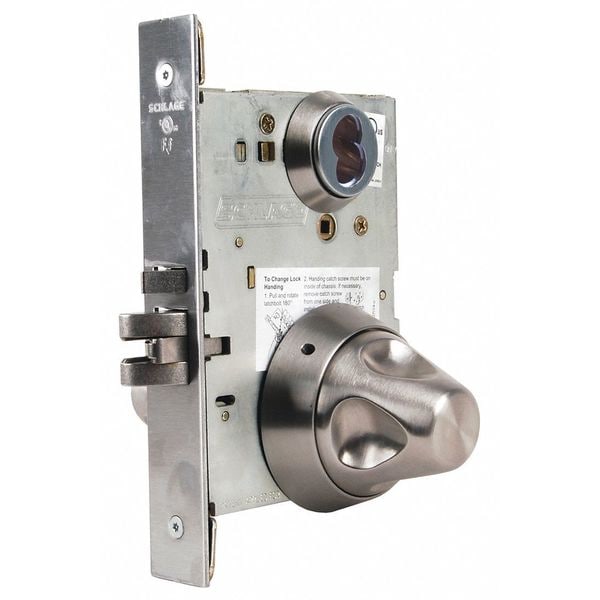

Schlage Door Lever Lockset, Mechanical, Mortise L9070BD SK1 630 - main

Door Lever Lockset, Mechanical, Mortise

  • Mfr # L9070BD SK1 630

  • Zoro # G3950858

product price: $1,604.99
/ea
Free Shipping & Returns

Key Features

Lockset Finish
Stainless Steel
Lockset Grade
1
Lockset Handle Type
Knob
Mortise / Cylindrical
Mortise
Lockset Function
Classroom
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
L9070BD SK1 630
Zoro #
G3950858
UPC #
-
Country of Origin
Mexico

Dimensions

Required Door Thickness
1-3/8 in to 1-3/4 in
Door Thickness - Maximum
1 3/4 in
Strike Plate Height
4 7/8 in
Strike Plate Width
1 1/4 in
Door Thickness - Minimum
1 3/8 in
Strike Plate Lip Length
1 3/16 in

Details

Lockset Finish
Stainless Steel
Lockset Grade
1
Lockset Handle Type
Knob
Mortise / Cylindrical
Mortise
Lockset Function
Classroom
Keyway Type
None
Key Type
Not Keyed
Series
9000
Electrical/Mechanical
Mechanical
Backset
2 3/4 in
Item
Door Lockset
Strike Dim.
2-1/4 x 1-3/4 in
Handle Material
Steel
Style
Anti Ligature Knob
For Use With
Various Door Types
Features
Breakaway Spindle, Anti-Saw Pin In Bolt, Security Blocking Hub, Two Piece Anti-Friction Tongue in Latch Bolt
Number of Pins
0
Strike Type
Curved Lip
Fire Rating - Door Hardware
3 hr
Number of Keys
0
ADA Compliant
No
Location Type
Healthcare, Institutional
Lockset Performance Strength
Standard Duty
Lockset Fire Rating
3 hr
Includes
Strike
Ligature Resistant
Yes
Standards
ANSI/BHMA A156.13-2017, BAA/TAA, Complies with ICC A117.1, Miami-Dade NOA and Florida Building Commission Listings, Texas Department of Insurance (TDI), Title 19, California State Fire Marshal Standard), CAN/ULC S104, UL 437
Cylinder Core Type
Small Format Interchangeable Core Cylinder
Mortise/Cylindrical
Mortise
Visual Indicator Message
Locked/Unlocked
Hand Orientation
Non-Handed
Latch Bolt/Dead Bolt
Dead Latch
Failure Mode
Fail Secure
Knob/Handle Material
Cast Stainless Steel, Forged Brass
ANSI/BHMA Finish
Satin Stainless Steel
Locking/Unlocking Access - Inside
Not Lockable
Ligature-Resistant
Ligature-Resistant
Lockset Style
L SK1
Locking/Unlocking Access - Outside
Keyway
UL Fire Rating
UL10C
ANSI Grade
1
Fire Rating
3 hr
Includes Core
Core Included
Performance Grade
1
Lockset Type
Mechanical
Lockset Function ANSI Code
F05
Application
Commercial

Description

Classroom Lock,SK1 Trim,Stainless Steel
