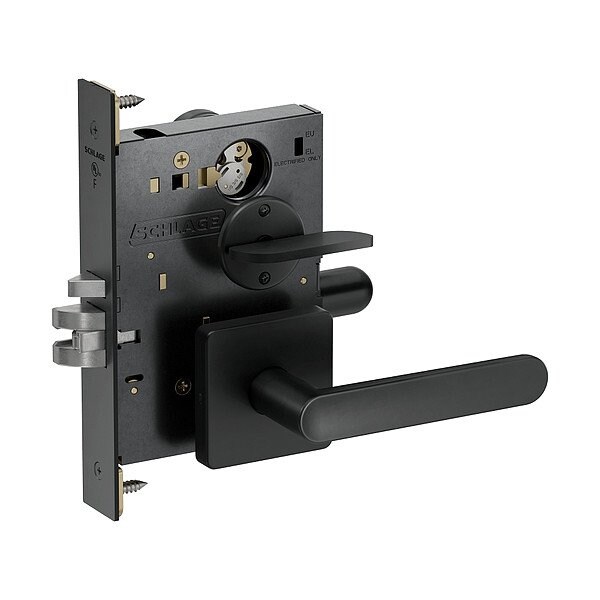

Door Lockset, 12/24V DC, Mortise

Mfr # PM050P SELD 622
Zoro # G723524989

585.99

Free Shipping & Returns

Key Features

Application

Commercial Real Estate, Hospitality, Residential, Retail

Fire Rating

3 hr

Hand Orientation

Non-Handed

Mortise/Cylindrical

Mortise

Lockset Function ANSI Code

F04

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: PM050P SELD 622
Zoro #: G723524989
UPC #: 197163386178
Country of Origin: Mexico

Dimensions

Strike Plate Width: 1 1/4 in
Strike Plate Lip Length: 1 3/16 in
Door Thickness - Maximum: 2 1/2 in
Strike Plate Height: 4 7/8 in
Door Thickness - Minimum: 1 3/8 in
Fits Chest Size: Breakaway Spindle Keeps Door Secured in the Event of Vandalism, Two Piece Anti-Friction Tongue in Latch Bolt Reduces Wear, Every Schlage Lock Undergoes Intensive Testing to Determine its ANSI Grade Level Including: Cycle, Resistance, Door Impact, Warped Door and Bolt Strength Tests, Extensive Cylinder Support for Schlage and 7 Non-Schlage Formats, Field Reversible Latch Bolt Allows Handing Change without Opening Case, Lock Status Indication for Sectional Trims (Available on Most Functions) uses Red and White Backgrounds to Ensure Quick Readability for Color Blind Individuals, Patented Everest 29(TM) S123 Keyway Provided Standard which Prohibits Unauthorized Key Duplication, Performance Series Exclusive Levers (Selena and Playa) and D Square Rose are Shared with the Pt Series(TM) Tubular Lock, Security Blocking Hub Prevents Lock Access by Removing Levers, Anti-Saw Pin in Bolt to Prevent Cut-Through

Details

Application: Commercial Real Estate, Hospitality, Residential, Retail
Fire Rating: 3 hr
Hand Orientation: Non-Handed
Mortise/Cylindrical: Mortise
Lockset Function ANSI Code: F04
Lockset Type: Mechanical
Keyway Type: S123
Number of Pins: 6
ADA Compliant: Yes
Locking/Unlocking Access - Outside: Keyway
Item: Door Lockset
Includes Core: Core Included
Backset: 2 3/4 in
Latch Bolt/Dead Bolt: Latch Bolt
Knob/Handle Material: Zinc
Voltage: 12/24V DC
ANSI/BHMA Finish: Black Painted
Failure Mode: Fail Safe or Fail Secure
ANSI Grade: 1
Locking/Unlocking Access - Inside: Thumb Turn
Key Material: Nickel Silver
Performance Grade: 1
Features: Breakaway Spindle Keeps Door Secured in the Event of Vandalism, Two Piece Anti-Friction Tongue in Latch Bolt Reduces Wear, Every Schlage Lock Undergoes Intensive Testing to Determine its ANSI Grade Level Including: Cycle, Resistance, Door Impact, Warped Door and Bolt Strength Tests, Extensive Cylinder Support for Schlage and 7 Non-Schlage Formats, Field Reversible Latch Bolt Allows Handing Change without Opening Case, Lock Status Indication for Sectional Trims (Available on Most Functions) uses Red and White Backgrounds to Ensure Quick Readability for Color Blind Individuals, Patented Everest 29(TM) S123 Keyway Provided Standard which Prohibits Unauthorized Key Duplication, Performance Series Exclusive Levers (Selena and Playa) and D Square Rose are Shared with the Pt Series(TM) Tubular Lock, Security Blocking Hub Prevents Lock Access by Removing Levers, Anti-Saw Pin in Bolt to Prevent Cut-Through
Visual Indicator Location: Inside/Outside
Lockset Style: Selena
Standards: ANSI/BHMA A156.13-2017, CAN/ULC-S104, ICC A117.1, UL 437 Listed
Key Type: Keyed Different
Includes: Dust Box
Strike Type: Curved Lip
Ligature-Resistant: Not Ligature-Resistant
Visual Indicator Message: No Message
Cylinder Core Type: Conventional Core Cylinder

Description

Door Lockset,12/24V DC,Mortise

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
