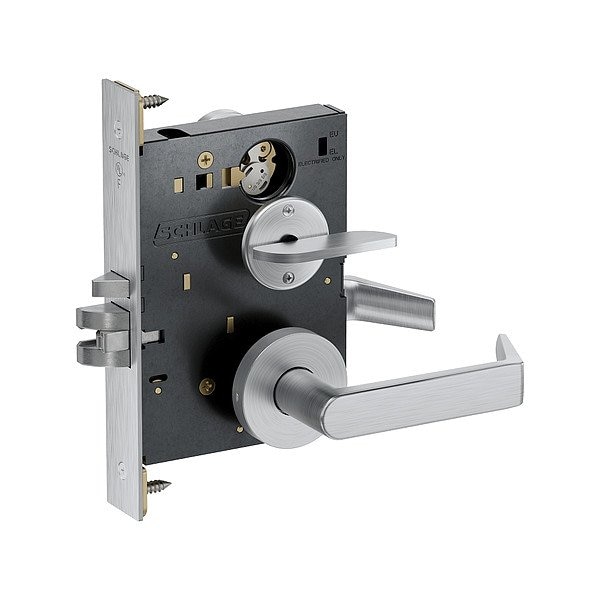

Door Lockset, 12/24V DC, Mortise

Mfr # PM056P RHOA 626
Zoro # G023524603

670.99

Free Shipping & Returns

Key Features

Application

Commercial Real Estate, Hospitality, Residential, Retail

ANSI/BHMA Finish

Satin Chromium-Plated

Key Material

Nickel Silver

Performance Grade

Strike Plate Lip Length

1 3/16 in

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: PM056P RHOA 626
Zoro #: G023524603
UPC #: 197163386345
Country of Origin: Mexico

Dimensions

Strike Plate Lip Length: 1 3/16 in
Strike Plate Width: 1 1/4 in
Door Thickness - Minimum: 1 3/8 in
Strike Plate Height: 4 7/8 in
Door Thickness - Maximum: 2 1/2 in
Fits Chest Size: Breakaway Spindle Keeps Door Secured in the Event of Vandalism, Two Piece Anti-Friction Tongue in Latch Bolt Reduces Wear, Every Schlage Lock Undergoes Intensive Testing to Determine its ANSI Grade Level Including: Cycle, Resistance, Door Impact, Warped Door and Bolt Strength Tests, Extensive Cylinder Support for Schlage and 7 Non-Schlage Formats, Field Reversible Latch Bolt Allows Handing Change without Opening Case, Lock Status Indication for Sectional Trims (Available on Most Functions) uses Red and White Backgrounds to Ensure Quick Readability for Color Blind Individuals, Patented Everest 29(TM) S123 Keyway Provided Standard which Prohibits Unauthorized Key Duplication, Performance Series Exclusive Levers (Selena and Playa) and D Square Rose are Shared with the Pt Series(TM) Tubular Lock, Security Blocking Hub Prevents Lock Access by Removing Levers, Anti-Saw Pin in Bolt to Prevent Cut-Through

Details

Application: Commercial Real Estate, Hospitality, Residential, Retail
ANSI/BHMA Finish: Satin Chromium-Plated
Key Material: Nickel Silver
Performance Grade: 1
Lockset Style: Rhodes
Visual Indicator Location: Inside/Outside
Includes Core: Core Included
Strike Type: Curved Lip
Mortise/Cylindrical: Mortise
Failure Mode: Fail Safe or Fail Secure
Includes: Dust Box
Locking/Unlocking Access - Outside: Keyway
Number of Pins: 6
ADA Compliant: Yes
Fire Rating: 3 hr
Hand Orientation: Non-Handed
Voltage: 12/24V DC
Item: Door Lockset
Key Type: Keyed Different
Keyway Type: S123
Latch Bolt/Dead Bolt: Latch Bolt
Backset: 2 3/4 in
Standards: ANSI/BHMA A156.13-2017, CAN/ULC-S104, ICC A117.1, UL 437 Listed
Features: Breakaway Spindle Keeps Door Secured in the Event of Vandalism, Two Piece Anti-Friction Tongue in Latch Bolt Reduces Wear, Every Schlage Lock Undergoes Intensive Testing to Determine its ANSI Grade Level Including: Cycle, Resistance, Door Impact, Warped Door and Bolt Strength Tests, Extensive Cylinder Support for Schlage and 7 Non-Schlage Formats, Field Reversible Latch Bolt Allows Handing Change without Opening Case, Lock Status Indication for Sectional Trims (Available on Most Functions) uses Red and White Backgrounds to Ensure Quick Readability for Color Blind Individuals, Patented Everest 29(TM) S123 Keyway Provided Standard which Prohibits Unauthorized Key Duplication, Performance Series Exclusive Levers (Selena and Playa) and D Square Rose are Shared with the Pt Series(TM) Tubular Lock, Security Blocking Hub Prevents Lock Access by Removing Levers, Anti-Saw Pin in Bolt to Prevent Cut-Through
ANSI Grade: 1
Lockset Type: Mechanical
Locking/Unlocking Access - Inside: Thumb Turn
Knob/Handle Material: Zinc
Visual Indicator Message: No Message
Ligature-Resistant: Not Ligature-Resistant
Cylinder Core Type: Conventional Core Cylinder

Description

Door Lockset,12/24V DC,Mortise
