Shop SCHLAGE

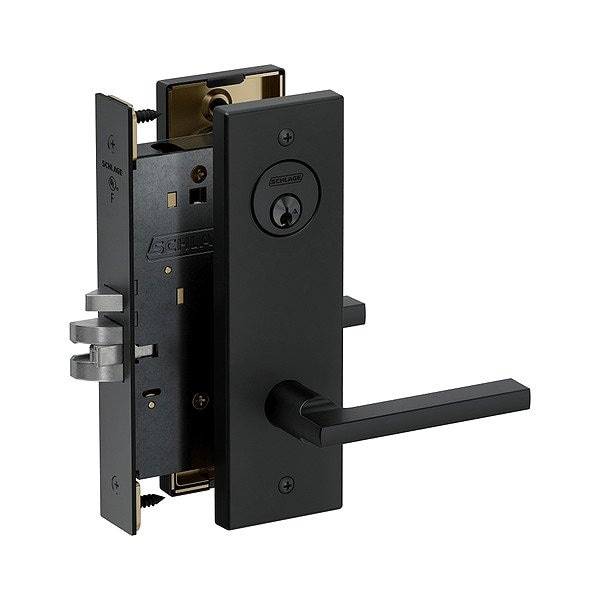

Door Lockset, 12/24V DC, Mortise

  • Mfr # PM060P LATN 622

  • Zoro # G723524064

product price:
$
823.99
/ea
Free Shipping & Returns

Key Features

Includes Core
Core Included
Lockset Function ANSI Code
F09
Strike Type
Curved Lip
Number of Pins
6
Failure Mode
Fail Safe or Fail Secure
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
PM060P LATN 622
Zoro #
G723524064
UPC #
197163386499
Country of Origin
Mexico

Dimensions

Strike Plate Lip Length
1 3/16 in
Door Thickness - Maximum
2 1/2 in
Strike Plate Width
1 1/4 in
Door Thickness - Minimum
1 3/8 in
Strike Plate Height
4 7/8 in

Details

Includes Core
Core Included
Item
Door Lockset
Lockset Function ANSI Code
F09
Strike Type
Curved Lip
Number of Pins
6
Failure Mode
Fail Safe or Fail Secure
Performance Grade
1
Key Material
Nickel Silver
Standards
ANSI/BHMA A156.13-2017, CAN/ULC-S104, ICC A117.1, UL 437 Listed
Fire Rating
3 hr
Includes
Dust Box
Hand Orientation
Non-Handed
Features
Breakaway Spindle Keeps Door Secured in the Event of Vandalism, Two Piece Anti-Friction Tongue in Latch Bolt Reduces Wear, Every Schlage Lock Undergoes Intensive Testing to Determine its ANSI Grade Level Including: Cycle, Resistance, Door Impact, Warped Door and Bolt Strength Tests, Extensive Cylinder Support for Schlage and 7 Non-Schlage Formats, Field Reversible Latch Bolt Allows Handing Change without Opening Case, Lock Status Indication for Sectional Trims (Available on Most Functions) uses Red and White Backgrounds to Ensure Quick Readability for Color Blind Individuals, Patented Everest 29(TM) S123 Keyway Provided Standard which Prohibits Unauthorized Key Duplication, Performance Series Exclusive Levers (Selena and Playa) and D Square Rose are Shared with the Pt Series(TM) Tubular Lock, Security Blocking Hub Prevents Lock Access by Removing Levers, Anti-Saw Pin in Bolt to Prevent Cut-Through
ADA Compliant
Yes
Mortise/Cylindrical
Mortise
Backset
2 3/4 in
Key Type
Keyed Different
Keyway Type
S123
Application
Commercial Real Estate, Hospitality, Residential, Retail
ANSI/BHMA Finish
Black Painted
Visual Indicator Location
Inside/Outside
Voltage
12/24V DC
Latch Bolt/Dead Bolt
Latch Bolt
Locking/Unlocking Access - Outside
Keyway
Lockset Type
Mechanical
Lockset Style
Latitude
ANSI Grade
1
Locking/Unlocking Access - Inside
Not Lockable
Knob/Handle Material
Zinc
Visual Indicator Message
No Message
Cylinder Core Type
Conventional Core Cylinder
Ligature-Resistant
Not Ligature-Resistant

Description

Door Lockset,12/24V DC,Mortise
