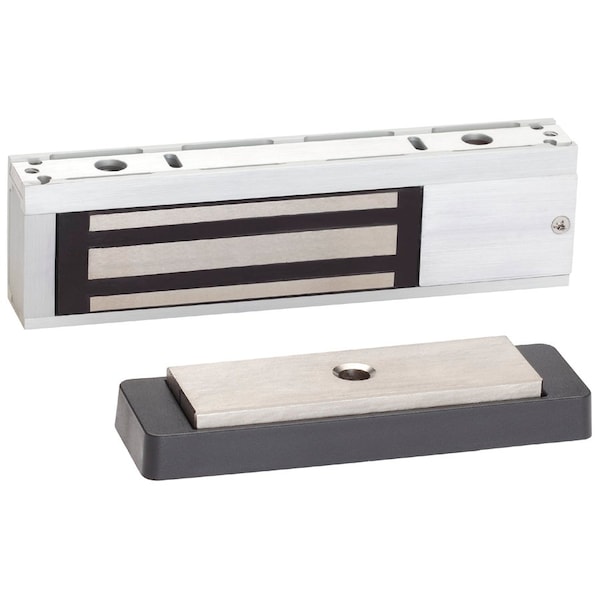

1000lb Magnet, AVS, DSM, MBS, RTD

SCHLAGE ELECTRONICS| Zoro #: G0651375| Mfr #: M450P

$384.59 /ea

This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G0651375 Mfr #: M450P
Input Voltage: 12/24VDCOptions Included: Automatic Voltage Selection, Magnetic Bond Sensor, Door Position Switch, Relock Time Delay
Lock Body Length (In.): 10-1/2Lock Body Depth (In.): 3
Item: Electromagnetic LockMfr. Series: M400
Finish: AluminumRelease Delay: 1-30 seconds
Armature Width (In.): 2Holding Force (Lb.): 1000
Armature Length (In.): 7Standards: UL1034, UL10C, ANSI/BHMA156.23
Armature Depth (In.): 1Amp Draw @ 24V: .38A
Total Projection (In.): 4Amp Draw @ 12V: .75A
Material: Hard Anodized AluminumLock Body Width (In.): 2
Country of Origin (subject to change): China

Product Description

Electromagnetic Lock, Hard Anodized Aluminum, Amp Draw @ 12V .75A, Amp Draw @ 24V .38A, Input Voltage 12/24VDC, Total Projection (In.) 4, Holding Force (Lb.) 1000, Armature Length (In.) 7, Armature Width (In.) 2, Armature Depth (In.) 1, Lock Body Length (In.) 10-1/2, Lock Body Width (In.) 2, Lock Body Depth (In.) 3, Mfr. Series M400, 1-30 seconds Release Delay, Aluminum Finish, Standards UL1034, UL10C, ANSI/BHMA156.23
