  13. Lever Lockset, Mechanical, Grd. 1

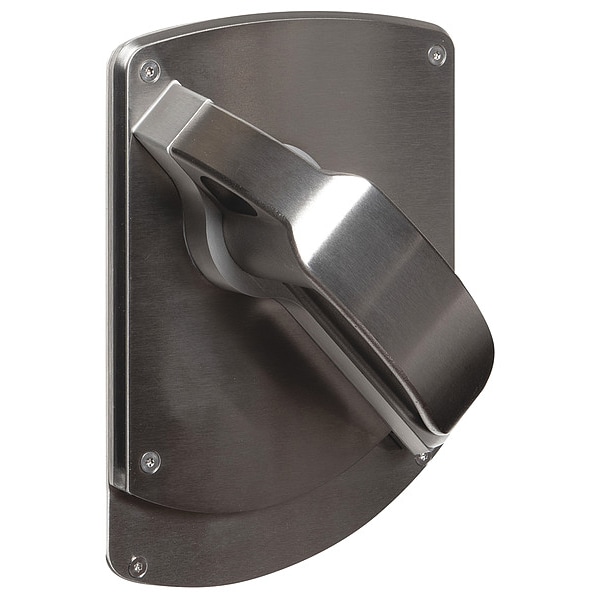

Schlage Lever Lockset, Mechanical, Grd. 1 ND10S HSLR 630 RH - main

Lever Lockset, Mechanical, Grd. 1

  • Mfr # ND10S HSLR 630 RH

  • Zoro # G4260296

product price: $1,681.99
/ea
Free Shipping & Returns

Key Features

Electrical/Mechanical
Mechanical
Lockset Handle Type
Arch Lever
Mortise / Cylindrical
Cylindrical
Lockset Function
Passage
Lockset Grade
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ND10S HSLR 630 RH
Zoro #
G4260296
UPC #
-
Country of Origin
Mexico

Dimensions

Required Door Thickness
1-3/4 in
Strike Plate Height
4 7/8 in
Door Thickness - Maximum
2 1/8 in
Strike Plate Width
1 1/4 in
Strike Plate Lip Length
1 3/16 in
Door Thickness - Minimum
1 5/8 in

Details

Electrical/Mechanical
Mechanical
Lockset Handle Type
Arch Lever
Mortise / Cylindrical
Cylindrical
Lockset Function
Passage
Lockset Grade
1
Lockset Finish
Stainless Steel
Keyway Type
None
Key Type
Not Keyed
Lockset Fire Rating
3 hr
Ligature Resistant
Yes
Number of Keys
0
Strike Type
Curved Lip
Standards
ANSI/BHMA ANSI A156.2-2017, ASTM E330, BAA/TAA, California Fire Code, E1886, E1996, FF-H-106C Series 161, Miami Dade (TAS 201, 202, 203), NYS-OMHICC Complies with ICC A117.1-2017, TDI (ASTM E330, E1886, E1996), CAN/ULC S104, UL 437
Series
HSLR
ADA Compliant
Yes
Number of Pins
0
Backset
2 3/4 in
Features
Patented Everest 29(TM) S123 keyway is provided standard which prohibits unauthorized key duplication, Restricted Geographically exclusive Primus upgraded security options offer advanced key control and exceptional physical security
Strike Dim.
4-7/8 in
Mortise/Cylindrical
Cylindrical
Handle Material
Stainless Steel
Location Type
Behavioral Health, Detention Facility
Lockset Performance Strength
Standard Duty
Fire Rating - Door Hardware
3 hr
Item
Door Lockset
Visual Indicator Message
No Message
Lockset Function ANSI Code
F75
Includes Core
Core Not Included
Hand Orientation
Right-Handed
Lockset Style
ND HSLR
Lockset Type
Mechanical
Latch Bolt/Dead Bolt
Spring Latch
Knob/Handle Material
Stainless Steel
Application
Institutional
Performance Grade
1
ANSI/BHMA Finish
Satin Stainless Steel
Locking/Unlocking Access - Inside
Not Lockable
Locking/Unlocking Access - Outside
Not Lockable
Fire Rating
3 hr
Ligature-Resistant
Ligature-Resistant
ANSI Grade
1
UL Fire Rating
UL10C

Description

Lever Lockset, Mechanical, Grd. 1
