Shop SCHLAGE

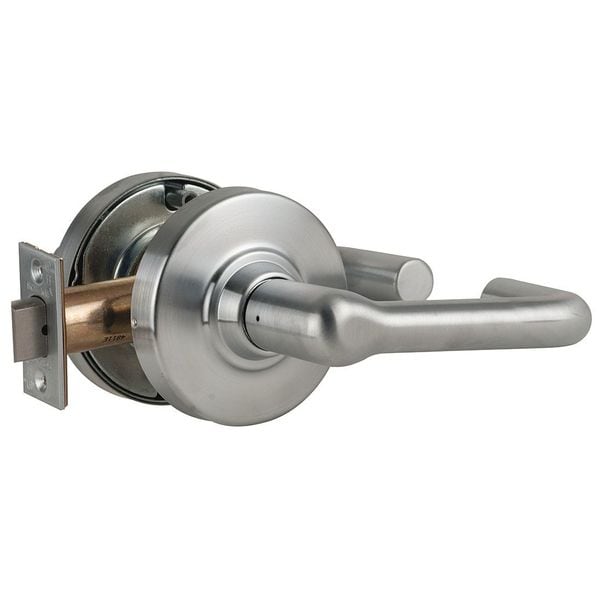

Lever Lockset, Mechanical, Passage, Grd. 1

  • Mfr # ND10S TLR 626

  • Zoro # G8696274

product price:
$
372.99
/ea
Free Shipping & Returns

Key Features

Backset
2 3/4 in
Electrical/Mechanical
Mechanical
For Use With
Wood, Steel Doors
Includes
Hardware
Key Type
Not Keyed
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
ND10S TLR 626
Zoro #
G8696274
UPC #
094726794756
Country of Origin
Mexico
Backset
2 3/4 in
Electrical/Mechanical
Mechanical
For Use With
Wood, Steel Doors
Includes
Hardware
Key Type
Not Keyed
Location Type
Commercial
Lockset Function
Passage
Lockset Grade
1
Lockset Handle Type
Lever
Mortise/Cylindrical
Cylindrical
Series
ND
Style
ND Tubular
Finish
Satin Chrome
Lockset Performance Strength
Heavy Duty
ADA Compliant
Yes
Ligature Resistant
No
Strike Type
Curved Lip
Item
Door Lockset
Lockset Finish
Satin Chrome
Handle Material
Zinc
Features
Snap-On Rose
Mortise / Cylindrical
Cylindrical
Strike Dim.
1-1/4 in x 4-7/8 in
Lockset Fire Rating
3 hr
Standards
ANSI/BHMA ANSI A156.2-2017, ASTM E330, BAA/TAA, California Fire Code, E1886, E1996, FF-H-106C Series 161, ICC Complies with ICC A117.1-2017, Miami Dade (TAS 201, 202, 203), TDI (ASTM E330, E1886, E1996), CAN/ULC S104, UL 437
Fire Rated
3 hr.
Grade
1
Application
Commercial
Function
Passage
Cylinder
Not Included
Visual Indicator Message
No Message
Lockset Style
ND Tubular
ANSI/BHMA Finish
Satin Chromium-Plated
Ligature-Resistant
Not Ligature-Resistant
Includes Hardware
Hardware Included
Locking/Unlocking Access - Outside
Not Lockable
Performance Grade
1
Includes Core
Core Not Included
ANSI Grade
1
Lockset Function ANSI Code
F75
Latch Bolt/Dead Bolt
Spring Latch
Hand Orientation
Non-Handed
Knob/Handle Material
Cast Zinc
Fire Rating
3 hr
Locking/Unlocking Access - Inside
Not Lockable
UL Fire Rating
UL10C
Lockset Type
Mechanical

Description

Lever, Heavy Duty, Lockset Function Passage, Style Tubular, Handle Material Zinc, Satin Chrome Finish, Strike Type ASA Strike, Strike Dim. 1-1/4 In. x 4-7/8 In., Fire Rated 3 hr., Grade 1, Series ND, Location Type Commercial, Backset 2-3/4 In., Cylinder Core Type Not Included, Required Door Thickness 1-3/4 In., For Use With Wood, Steel Doors, Features 10 yr. Limited Warranty for All Mechanical Functions, Includes Hardware
