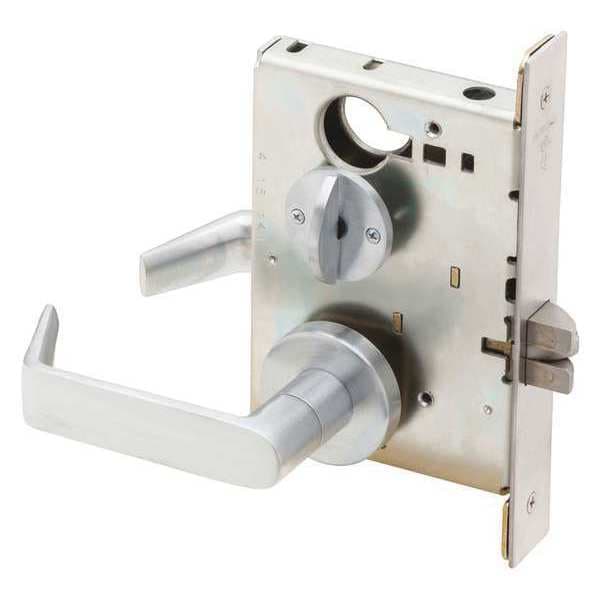

Schlage Lever Lockset, Mechanical, Privacy, Grd. 1 L9040 06A 626 - main

Lever Lockset, Mechanical, Privacy, Grd. 1

  • Mfr # L9040 06A 626

  • Zoro # G5050656

product price: $731.63
/ea
Free Shipping & Returns

Key Features

Lockset Function
Privacy
Location Type
Commercial
Electrical/Mechanical
Mechanical
Grade
1
Finish
Satin Chrome
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
L9040 06A 626
Zoro #
G5050656
UPC #
-
Country of Origin
Mexico

Dimensions

Required Door Thickness
1-3/4 in
For Door Thickness
1-3/4"
Door Thickness - Minimum
1 3/8 in
Strike Plate Height
4 7/8 in
Strike Plate Lip Length
1 3/16 in
Door Thickness - Maximum
1 3/4 in
Strike Plate Width
1 1/4 in

Details

Item
Door Lockset
Lockset Function
Privacy
Location Type
Commercial
Electrical/Mechanical
Mechanical
Grade
1
Finish
Satin Chrome
Series
L
Backset
2 3/4 in
Strike Dim.
1-1/8 in x 3-5/8 in
Includes
Dust Box
Style
L 06A
ADA Compliant
No
Lockset Grade
1
Strike Type
Curved Lip
Lockset Handle Type
Lever
Key Type
Not Keyed
Lockset Finish
Satin Chrome
Mortise / Cylindrical
Mortise
Ligature Resistant
No
Lockset Fire Rating
3 hr
Keyway Type
Everest C123
Mortise/Cylindrical
Mortise
Standards
ANSI/BHMA A156.13-2017, BAA/TAA, Complies with ICC A117.1, Miami-Dade NOA and Florida Building Commission Listings, Texas Department of Insurance (TDI), Title 19, California State Fire Marshal Standard), CAN/ULC S104, UL 437
Keying
Keyed Different
Fire Rated
3 hr.
Features
Breakaway Spindle, Anti-Saw Pin In Bolt, Security Blocking Hub, Two Piece Anti-Friction Tongue in Latch Bolt
Visual Indicator Message
Locked/Unlocked
Strike
Square Corner
Material
Brass/Steel/Zinc
Function
Privacy
Handle Type
Lever
Case Material
Brass, Steel, Zinc
Type
Rose
Pins
6
Performance Grade
1
Lockset Style
L Rhodes
ANSI Grade
1
Failure Mode
Fail Secure
Latch Bolt/Dead Bolt
Spring Latch
Lockset Function ANSI Code
F22
Lockset Type
Mechanical
Knob/Handle Material
Cast Stainless Steel, Forged Brass
UL Fire Rating
UL10C
Ligature-Resistant
Not Ligature-Resistant
Application
Commercial
Fire Rating
3 hr
Hand Orientation
Non-Handed
ANSI/BHMA Finish
Satin Chromium-Plated
Locking/Unlocking Access - Inside
Thumb Turn
Locking/Unlocking Access - Outside
Coin Turn

Description

Mortise Lockset, Style 06A, Function Privacy, Location Type Commercial, Trim Style Rose, Backset 2-3/4 In., Strike Type Square Corner, Strike Dim. 1-1/8 In. x 3-5/8 In., 3 hr. Fire Rated, Series L, Case Material Brass, Steel, Zinc, Satin Chrome Finish, Case Size 4-7/16 In. x 3-5/8 In. x 1 In., Required Door Thickness 1-3/4 In., Grade 1, Pins 6, Keying Keyed Different (KD), Keyway Type C123, Key Material Nickel Silver, Standards ANSI/BHMA A156.13-2005, Includes Hardware
