  13. Lever Lockset, Mechanical, Privacy, Grd. 1

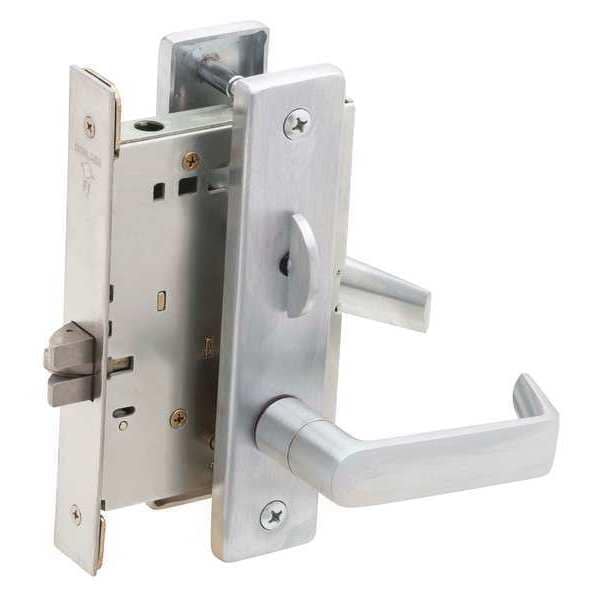

Schlage Lever Lockset, Mechanical, Privacy, Grd. 1 L9040 06L 626 - main

Lever Lockset, Mechanical, Privacy, Grd. 1

  • Mfr # L9040 06L 626

  • Zoro # G5050595

product price: $703.99
/ea
Free Shipping & Returns

Key Features

Lockset Function
Privacy
Location Type
Commercial
Electrical/Mechanical
Mechanical
Grade
1
Finish
Satin Chrome
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
L9040 06L 626
Zoro #
G5050595
UPC #
-
Country of Origin
Mexico

Dimensions

Required Door Thickness
1-3/4 in
For Door Thickness
1-3/4"
Strike Plate Lip Length
1 3/16 in
Strike Plate Width
1 1/4 in
Door Thickness - Maximum
1 3/4 in
Strike Plate Height
4 7/8 in
Door Thickness - Minimum
1 3/8 in

Details

Item
Door Lockset
Lockset Function
Privacy
Location Type
Commercial
Electrical/Mechanical
Mechanical
Grade
1
Finish
Satin Chrome
Series
L9000
Backset
2 3/4 in
Strike Dim.
1-1/8 in x 3-5/8 in
Includes
Dust Box
Ligature Resistant
No
Lockset Fire Rating
3 hr
Key Type
Not Keyed
ADA Compliant
No
Lockset Finish
Satin Chrome
Lockset Grade
1
Lockset Handle Type
Lever
Strike Type
Curved Lip
Mortise/Cylindrical
Mortise
Style
L 06L
Number of Pins
6
Keyway Type
Everest C123
Standards
ANSI/BHMA A156.13-2017, BAA/TAA, Complies with ICC A117.1, Miami-Dade NOA and Florida Building Commission Listings, Texas Department of Insurance (TDI), Title 19, California State Fire Marshal Standard), CAN/ULC S104, UL 437
Mortise / Cylindrical
Mortise
Features
Breakaway Spindle, Anti-Saw Pin In Bolt, Security Blocking Hub, Two Piece Anti-Friction Tongue in Latch Bolt
Material
Brass/Steel/Zinc
Keying
Keyed Different
Strike
Square Corner
Fire Rated
3 hr.
Type
Escutcheon
Function
Privacy
Application
Commercial
Visual Indicator Message
Locked/Unlocked
Handle Type
Lever
Case Material
Brass, Steel, Zinc
Knob/Handle Material
Cast Stainless Steel, Forged Brass
Hand Orientation
Non-Handed
Latch Bolt/Dead Bolt
Spring Latch
Performance Grade
1
Lockset Type
Mechanical
ANSI/BHMA Finish
Satin Chromium-Plated
Fire Rating
3 hr
Lockset Function ANSI Code
F22
ANSI Grade
1
Failure Mode
Fail Secure
UL Fire Rating
UL10C
Lockset Style
L Rhodes
Ligature-Resistant
Not Ligature-Resistant
Locking/Unlocking Access - Inside
Thumb Turn
Locking/Unlocking Access - Outside
Coin Turn

Description

Mortise Lockset, Escutcheon, Commercial, Series L, Style 06L, Finish Satin Chrome, Function Privacy, Keyway Type C123, Grade 1, Material Brass/Steel/Zinc, For Door Thickness 1-3/4 In, Backset 2-3/4 In, Crossbore Size 4 In, Key Type Nickel Silver, Number of Keys 2, Pins 6, Strike Square Corner, Required Door Thickness 1-3/4 In, Keying Keyed Different (KD), Standards ANSI/BHMA Certified A156.13-2005, Fire Rated 3 hr., Includes Hardware
