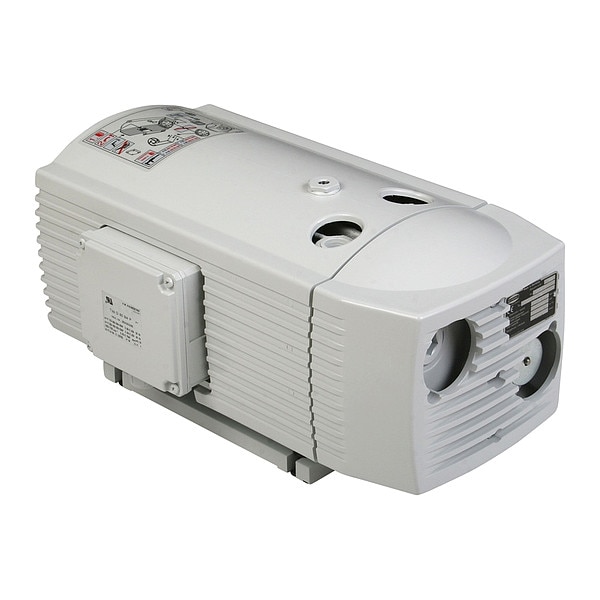

Dry running vacuum pump
- Mfr # 10.03.01.00349
- Zoro # G411632804
product price:Â
$
6,048.99
/ea
Key Features
Voltage
230/460V AC
Phase
Three
Weight
27.5 kg
Overall Length
465 mm
Application
Picking Up and Clamping Workpieces, Rapid Evacuation of Vacuum Systems
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 10.03.01.00349
- Zoro #
- G411632804
- UPC #
- -
- Country of Origin
- Germany
- Item
- Dry running vacuum pump
- Voltage
- 230/460V AC
- Phase
- Three
- Weight
- 27.5 kg
- Application
- Picking Up and Clamping Workpieces, Rapid Evacuation of Vacuum Systems
- Valve Type
- Blow-Off
- Maximum Operating Pressure
- 1,000 mbar
- Maximum Flow Rate
- 30 cu m/hr
- Output Power
- 0.9 kW
- Inlet Gender
- Female
- Pump Type
- Dry Running
- Maximum Operating Temperature
- 20 Degrees C
- Bearing Type
- Permanently Lubricated
- Sound Level
- 62 dBA, 67 dBA
- Runs Dry
- Yes
- Inlet Type
- G
- Frequency
- 60 Hz
- Maximum Vacuum
- 850 mbar
- Series
- EVE-TR
- Standards
- CSA, UL Listed
- Enclosure Rating
- IP 55
- Current Rating
- 1.8 A, 3.6 A
Dimensions
- Overall Length
- 465 mm
- Overall Height
- 292 mm
- Overall Width
- 270 mm
- Inlet Size
- 3/4 in
- Wire Rope Length
- 465 mm
- Length
- 465 mm
Description
Dry running vacuum pump, Output Power 0.9 kW, Phase Three, Voltage 230/460V AC, Maximum Flow Rate 30 cu m/hr, Maximum Vacuum 850 mbar, Inlet Size 3/4 in, Inlet Type G, Inlet Gender Female, Application Picking Up and Clamping Workpieces, Rapid Evacuation of Vacuum Systems, Maximum Operating Pressure 1,000 mbar
