Shop SCHMALZ

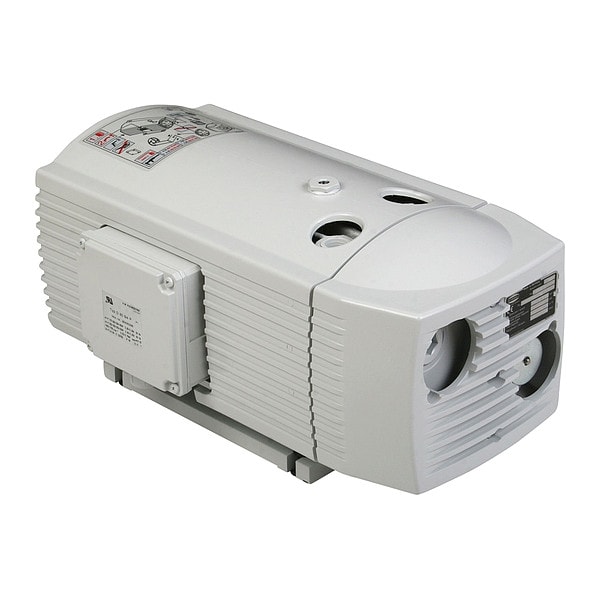

Dry running vacuum pump

  • Mfr # 10.03.01.00350

  • Zoro # G311632805

product price:
$
7,536.99
/ea
Free Shipping & Returns

Key Features

Voltage
230/460V AC
Phase
Three
Weight
40 kg
Overall Length
561 mm
Valve Type
Blow-Off
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
10.03.01.00350
Zoro #
G311632805
UPC #
-
Country of Origin
Germany

Dimensions

Overall Length
561 mm
Overall Width
270 mm
Overall Height
293 mm
Inlet Size
3/4 in
Wire Rope Length
561 mm

Details

Item
Dry running vacuum pump
Voltage
230/460V AC
Phase
Three
Weight
40 kg
Valve Type
Blow-Off
Application
Picking Up and Clamping Workpieces, Rapid Evacuation of Vacuum Systems
Maximum Operating Temperature
20 Degrees C
Maximum Operating Pressure
1,000 mbar
Maximum Flow Rate
48 cu m/hr
Runs Dry
Yes
Current Rating
2.9 A, 5.8 A
Inlet Type
G
Sound Level
67 dBA, 72 dBA
Frequency
60 Hz
Series
EVE-TR
Output Power
1.3 kW
Bearing Type
Permanently Lubricated
Pump Type
Dry Running
Standards
CSA, UL Listed
Inlet Gender
Female
Maximum Vacuum
850 mbar
Enclosure Rating
IP 55

Description

Dry running vacuum pump, Output Power 1.3 kW, Phase Three, Voltage 230/460V AC, Maximum Flow Rate 48 cu m/hr, Maximum Vacuum 850 mbar, Inlet Size 3/4 in, Inlet Type G, Inlet Gender Female, Application Picking Up and Clamping Workpieces, Rapid Evacuation of Vacuum Systems, Maximum Operating Pressure 1,000 mbar
