Spring plunger
- Mfr # 10.01.02.00608
- Zoro # G611938522
product price:Â
$
100.99
/ea
Free Shipping & Returns
Key Features
Overall Length
47.2 mm
Pad End Port Type
Metric
Pad End Port Gender
Female
Pad End Port Size
M5
Maximum Operating Temperature
80 Degrees C
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 10.01.02.00608
- Zoro #
- G611938522
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Overall Length
- 47.2 mm
- Pad End Port Size
- M5
- Outside Diameter
- 1/8 in
- Hex Size
- 7 mm, 14 mm
- Stroke Length
- 10 mm
- External Mounting Screw Size
- 1/8 in
- External Mounting Thread Size
- 1/8 in
- Vacuum End Port Size
- M5
- Wire Rope Length
- 47.2 mm
- Length
- 47.2 mm
Details
- Item
- Vacuum Buffer
- Pad End Port Type
- Metric
- Pad End Port Gender
- Female
- Maximum Operating Temperature
- 80 Degrees C
- Spring Rate
- 0.32 N/mm
- Minimum Operating Temperature
- 0 Degrees C
- Buffer Rotation
- Rotating
- Spring Force
- 4.36 N
- Weight
- 19 g
- Series
- FSTE
- Vacuum End Port Gender
- Female
- Vacuum End Port Type
- Metric
Description

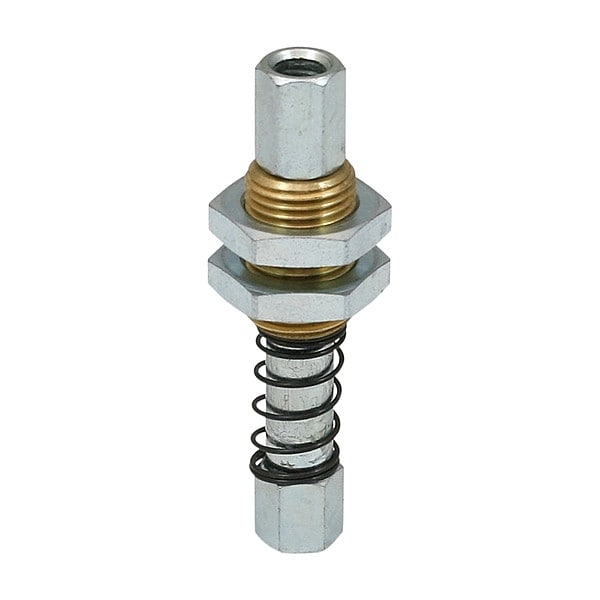

The SCHMALZ - 10.01.02.00608 is a vacuum buffer designed for integration into pneumatic vacuum systems. It stores and stabilizes vacuum pressure during intermittent or pulsed demand. This model features a rotating buffer head, offering flexibility in positioning. It operates within a temperature range from 0 to 80 Degrees C and is part of the FSTE series. Key Features:
- Rotating buffer head.
- External mounting screw and thread size: 1/8 in.
- Pad end port: Female, size M5, with metric thread type.
- Vacuum end port: Female, size M5, metric thread type.
- Spring force: 4.36 N; spring rate: 0.32 N/mm
- Stroke length: 10 mm
- Overall length of 47.2 mm and outside diameter of 1/8 in.
- Mass: 19 g
