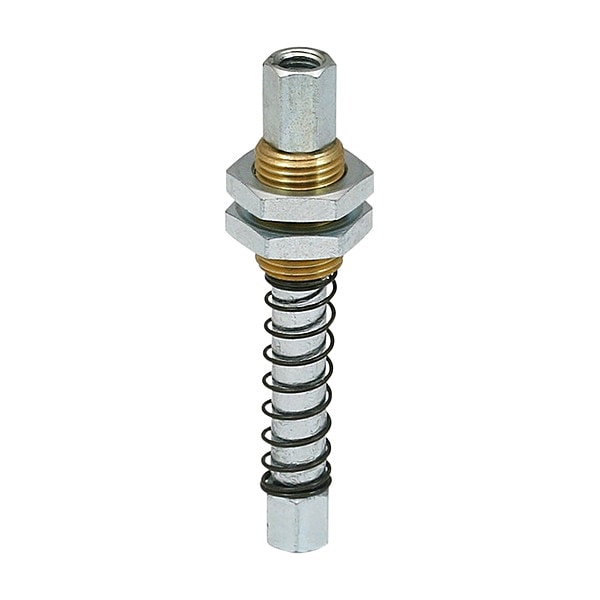

Schmalz Spring plunger 10.01.02.00609 - main

Spring plunger

  • Mfr # 10.01.02.00609

  • Zoro # G311938501

product price:  $100.99
/ea
Free Shipping & Returns

Key Features

Overall Length
59.2 mm
Spring Force
3.87 N
Outside Diameter
1/8 in
Buffer Rotation
Rotating
Stroke Length
20 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
10.01.02.00609
Zoro #
G311938501
UPC #
-
Country of Origin
Germany

Dimensions

Overall Length
59.2 mm
Outside Diameter
1/8 in
Stroke Length
20 mm
Vacuum End Port Size
M5
Pad End Port Size
M5
Hex Size
7 mm, 14 mm
External Mounting Thread Size
1/8 in
External Mounting Screw Size
1/8 in

Details

Item
Vacuum Buffer
Spring Force
3.87 N
Buffer Rotation
Rotating
Pad End Port Gender
Female
Spring Rate
0.21 N/mm
Maximum Operating Temperature
80 Degrees C
Vacuum End Port Type
Metric
Series
FSTE
Pad End Port Type
Metric
Vacuum End Port Gender
Female
Minimum Operating Temperature
0 Degrees C
Weight
25 g

Description

The SCHMALZ - 10.01.02.00609 is a vacuum buffer intended for use in pneumatic systems to maintain vacuum pressure within the system's operating range. It helps to absorb pressure fluctuations to stabilize vacuum pressure. This vacuum buffer features a rotating design which allows for swivel or rotary motion during operation. Key Features:

  • Series: FSTE
  • Rotating buffer head for rotary motion
  • External mounting screw and thread size: 1/8 in
  • Hex sizes for mounting or adjustment: 7 mm, 14 mm
  • Pad end port: Female, size M5, Metric type
  • Vacuum end port: Female, size M5, Metric type
  • Outside diameter: 1/8 in
  • Overall length: 59.2 mm
  • Operating temperature range: 0 Degrees C to 80 Degrees C
  • Spring force: 3.87 N with a spring rate of 0.21 N/mm
  • Stroke length: 20 mm
  • Weight: 25 g
