2 knock-outs for cable entry 14-14 mm || 2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm
Standards
JIS C8201-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || EN/IEC 60947-5-5 || CSA C22.2 No 14 || UL 508 || EN/IEC 60947-5-1 || JIS C8201-1
Ambient Air Temperature For Storage
-40-70°C
Shape Of Screw Head
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Contacts Material
silver alloy (Ag/Ni)
[Ith] Conventional Free Air Thermal Current
10 A EN/IEC 60947-5-1
Product Or Component Type
complete control station
Ik Degree Of Protection
IK03 EN 50102
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Device Short Name
XALD
Colour Of Cover
dark grey RAL 7016)
Operating Force
3.8 N NO changing electrical state
Electrical Durability
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
Operators Description
white ''up arrow'' 1 NO - black ''down arrow'' 1 NO
Connections - Terminals
screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1
Ip Degree Of Protection
IP66 IEC 60529 || IP67 || IP69 || IP69K
Colour Of Marking
black marking when white caps || white marking when green, red or black caps
Positive Opening
without
Control Station Application
two functions
Colour Of Base Of Enclosure
light grey RAL 7035)
Operator Profile
2 flush push-buttons
Product Certifications
UL Listed || CSA
[Ie] Rated Operational Current
6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Control Station Composition

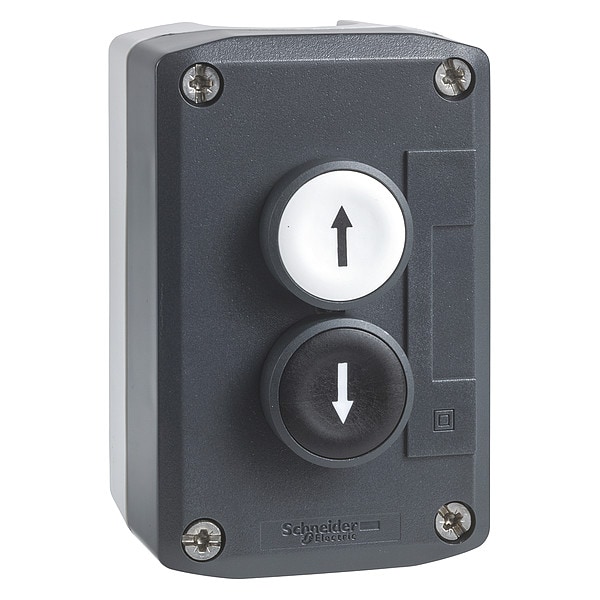

1 flush push-button, white 1 NO, black up arrow || 1 flush push-button, black 1 NO, white down arrow
[Uimp] Rated Impulse Withstand Voltage
6 kV EN/IEC 60947-1
[Ui] Rated Insulation Voltage
600 V 3)EN/IEC 60947-1
Vibration Resistance
5 gn 12-500 Hz)IEC 60068-2-6
Operating Travel
2.6 mm NO changing electrical state) || 4.3 mm total travel)
Protective Treatment
TH
Marking Location
marking on push-button
Electrical Shock Protection Class
class II IEC 60536
Short-Circuit Protection
10 A cartridge fuse gG EN/IEC 60947-5-1
Ambient Air Temperature For Operation
-40-70°C
Product Destination
for XB5 Ø 22 mm control and signalling units
Mechanical Durability
5000000 cycles
Electrical Reliability
λ < 10exp(-6) 5 V 1 mA EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA EN/IEC 60947-5-4
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Tightening Torque
0.8-1.2 N.m EN/IEC 60947-1
Contact Operation
slow-break
Enclosure Base Cover
Light Gray RAL 7035)
Rated Operational Current
6 A 120 V, AC-15, A600 EN/IEC 60947-5-1; 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1; 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1; 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1; 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1; 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1
Cover Color
Dark Gray RAL 7016)
Marking Color
Black marking when white caps; White marking when green, red or black caps
