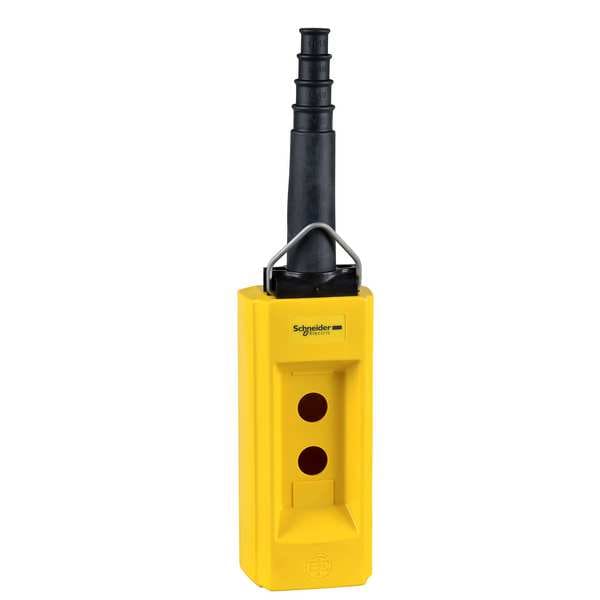

2 Button Pendant W/O Ko In Base

  • Mfr # XACB02

  • Zoro # G0862051


product price: $202.99
/ea
Free Shipping & Returns

Key Features

Color
Yellow
Standards
CSA, EN/IEC, IP65, RoHS
Material
Plastic
IP Rating
IP65
Includes
Cap Sleeve
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
XACB02
Zoro #
G0862051
UPC #
785901640486
Country of Origin
Czechia

Dimensions

Width
20.24 in
Hole Size
40 mm
Depth
4.33 in
Height
3.86 in
Overall Width
20 1/4 in
Overall Height
3 7/8 in
Rubber Sleeve Cable Entry Size - Maximum
0.87 in
Rubber Sleeve Cable Entry Size - Minimum
0.39 in
Overall Depth
4 3/8 in
Compatible Panel Cutout Diameter
22 mm

Details

Item
Pendant Enclosure
Color
Yellow
Standards
CSA, EN/IEC, IP65, RoHS
Material
Plastic
IP Rating
IP65
Includes
Cap Sleeve
Cable Entry
0.39 in to 0.87 in
Enclosure Material
glass reinforced polyester
Mechanical Durability
1000000 cycles
Vibration Resistance
15 gn 10-500 Hz)IEC 60068-2-6
Ik Degree Of Protection
IK08 EN 50102
Electrical Circuit Type
power circuit || control circuit
Device Short Name
XACB
Enclosure Type
empty enclosure
Number Of Cut-Out
2 cut-outs
Overvoltage Category
class II IEC 61140
Control Station Colour
yellow
Product Or Component Type
pendant control station
Ip Degree Of Protection
IP65 conforming to IEC 60529
Ambient Air Temperature For Operation
-25-70°C
Shock Resistance
100 gn IEC 60068-2-27
Ambient Air Temperature For Storage
-40-70°C
Protective Treatment
TH
Control Station Type
double insulated
Product Certifications
CSA type 4
Vertical Operator Cut-Out Centre
40 mm
Cable Entry Type
Rubber Sleeve
Compatible with Series
XAC
Compatible with Brand
Schneider

Description

Pendant Enclosure, Number of Holes 2, Cable Entry 0.39 in to 0.87 in, Color Yellow, Hole Size 40 mm, Material Plastic, Height 3.86 in, Width 20.24 in, Depth 4.33 in, Includes Cap Sleeve, Standards CSA, EN/IEC, IP65, RoHS
