Item
3 Phase Control Relay
Response Time
<= 130 ms (in the event of a fault)
Features
DIN Rail Mountable, Sealable Cover, Market Slimmest Form-Factor of 17, Multi Function Controller, Monitors Own Power Supply
Standards
C-Tick, CSA, GL, GOST, IEC 60255-1, UL
[Uc] Control Circuit Voltage
208...440 V
Ambient Air Temperature For Storage
-40-70°C
Maximum Switching Voltage
250 V AC || 250 V DC
Supply Frequency
50/60 Hz +/- 10 %
Run-Up Delay At Power-Up
650 ms
Utilisation Category
AC-12 IEC 60947-5-1 || AC-13 IEC 60947-5-1 || AC-14 IEC 60947-5-1 || AC-15 IEC 60947-5-1 || DC-12 IEC 60947-5-1 || DC-13 IEC 60947-5-1
Vibration Resistance
0.35 mm 5-57.6 Hz)IEC 60068-2-6 || 1 gn 57.6-150 Hz)IEC 60255-21-1
Relay Monitored Parameters
phase sequence || phase failure detection (2 or more phase cut)
Dielectric Test Voltage
2 kV AC 50 Hz, 1 min
Power Consumption In Va
0-22 VA 400 V AC 50 Hz
Electrical Durability
10000 cycles
Mechanical Durability
30000000 cycles
Operating Position
any position without derating
Voltage Detection Threshold
< 100 V AC
Measurement Range
208...440 V voltage AC
Housing Material
self-extinguishing plastic
Ip Degree Of Protection
IP20 IEC 60529 terminals) || IP30 IEC 60529 casing)
Overvoltage Category
III IEC 60664-1
Mounting Support
35 mm symmetrical DIN rail conforming to EN/IEC 60715
Local Signalling
for relay ON LED (yellow)
Shock Resistance
15 gn 11 ms IEC 60255-21-1
Voltage Range
183...484 V
Connections - Terminals
screw terminals, 1 x 0.5...1 x 4 mm² AWG 20...AWG 11) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 12) flexible with cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end
Switching Capacity In Va
1250 VA
Minimum Switching Current
10 mA 5 V DC
Product Certifications
GOST || C-tick || UL || CSA || GL
Pollution Degree
3 IEC 60664-1
Relative Humidity
95-95 % 55-55°C IEC 60068-2-30
Insulation Resistance
> 500 MOhm 500 V DC IEC 60255-5 || > 500 MOhm 500 V DC IEC 60664-1
Product Specific Application
for 3-phase supply
[Ui] Rated Insulation Voltage
400 V IEC 60664-1
Nominal Output Current
5A
Supply Voltage Limits
183-484 V AC
Electromagnetic Compatibility
emission standard for industrial environments EN/IEC 61000-6-4 || emission standard for residential, commercial and light-industrial environments EN/IEC 61000-6-3 || immunity for industrial environments EN/IEC 61000-6-2
Control Circuit Voltage Limits
12 % + 10 % Un
Non-Dissipating Shock Wave
4 kV
Ambient Air Temperature For Operation
-20-50°C
Measurement Voltage Limits
183-484 V AC
Control Circuit Frequency
50...60 Hz +/- 10 %
Contacts Type And Composition
2 C/O
Product Or Component Type

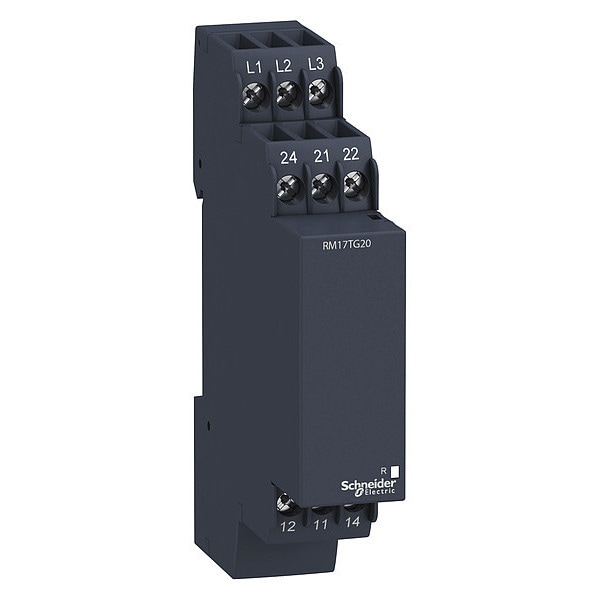

3-phase control relay
Tightening Torque
0.6-1 N.m IEC 60947-1
Operating Rate
<= 360 operations/hour full load
Control Circuit Voltage
208 to 440 V
Product Type
3 Phase Control Relay
