- Item - Relay
- Phase Monitor Relay
- Coil Volts
- 250VAC/DC
- AC Contact Rating - Relay
- 5A @ 250V
- DC Contact Rating - Relay
- 7A @ 30V
- Contact Form - Relay
- SPDT
- Mounting - Relay
- Plug In
- Item
- Relay
- Phase Unbalance
- No
- Under Voltage
- No
- Phase Loss Sensitivity
- No
- Over Voltage
- No
- Phase Reversal
- No
- Input or Control Voltage
- 183 to 528V AC
- Base Type - Plug In Relay
- Octal
- Restart
- Auto
- Standards
- C-Tick, CSA Certified, EN/IEC 60255-1, EN/IEC 61000-6-4, EU RoHS, GL, GOST, Reach Regulation, UL Listed
- Response Time
- < 200 ms (in the event of a fault)
- Contact Form
- SPDT
- Mounting Style
- DIN Rail
- Current Rating
- 5 A
- Electrical Operating Durability
- 100,000
- Maximum Operating Temperature
- 122 Degrees F
- Minimum Operating Temperature
- -4 Degrees F
- Weight
- 4.64 oz
- Number of Pins
- 6
- Overvoltage
- No
- Maximum Switching Current
- 5 A
- Contact Rating (AC)
- 5 A @ 250V
- Maximum Switching Voltage
- 250V AC/DC
- Frequency
- 50/60 Hz
- IP Rating
- IP30
- Base Shape
- Octal
- Minimum Switching Current
- 10 mA
- Housing Material
- Plastic
- Monitored Parameters
- Phase Failure, Phase Sequence, Undervoltage
- Contact Rating (DC)
- 7 A @ 30V
- Power Consumption
- 1,250 VA
- Maximum Switching Capacity
- 1,250 VA
- Restart Time Delay
- 1.5 sec
- Mechanical Operating Durability
- 30,000,000
- Input Voltage
- 183 to 528V AC
- Output Contacts
- 1 C/O
- Utilisation Category
- AC-12 IEC 60947-5-1 || AC-13 IEC 60947-5-1 || AC-14 IEC 60947-5-1 || AC-15 IEC 60947-5-1 || DC-12 IEC 60947-5-1 || DC-13 IEC 60947-5-1
- Nominal Output Current
- 5A
- Product Or Component Type
- 3-phase control relay
- [Ui] Rated Insulation Voltage
- 400 V IEC 60664-1
- Power Consumption In Va
- 0-22 VA 400 V AC 50 Hz
- Repeat Accuracy
- 0.5 % input and measurement circuit || 3 % time delay
- Connections - Terminals
screw terminals, 1 x 0.5...1 x 4 mm² AWG 20...AWG 11) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 12) flexible with cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end
- Control Circuit Frequency
- 50...60 Hz +/- 10 %
- Pollution Degree
- 3 IEC 60664-1
- Contacts Type And Composition
- 1 C/O
- Operating Position
- any position without derating
- Supply Frequency
- 50/60 Hz +/- 10 %
- Shock Resistance
- 15 gn 11 ms IEC 60255-21-1
- Reset Time
- 1500 ms time delay
- Control Circuit Voltage Limits
- 12 % + 10 % Un
- Mechanical Durability
- 30000000 cycles
- Measurement Error
- < 0.05 %/°C with temperature variation || < 1 % over the whole range with voltage variation
- Dielectric Test Voltage
- 2 kV AC 50 Hz, 1 min IEC 60255-5 || 2 kV AC 50 Hz, 1 min IEC 60664-1
- Electrical Durability
- 100000 cycles
- Tightening Torque
- 0.6-1 N.m IEC 60947-1
- Threshold Adjustment Voltage
- -2...-12 % in the range 208 V AC || -2...-17 % in the range 220 V AC || 2...20 % of Un selected || +2...+17 % in the range 480 V AC
- Mounting Support
- 35 mm symmetrical DIN rail conforming to EN/IEC 60715
- Relative Humidity
- 95-95 % 55-55°C IEC 60068-2-30

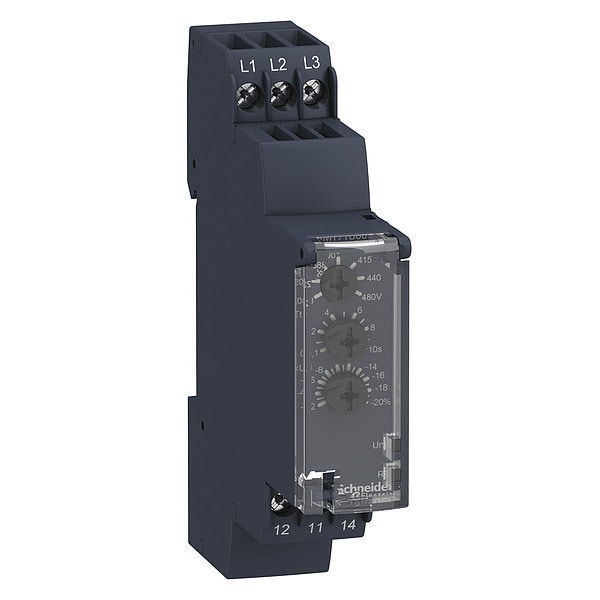

- Relay Name
- RM17TU
- Overvoltage Category
- III IEC 60664-1
- Phase Failure Sensitivity
- 0.7 Un
- Hysteresis
- 2-2 %
- [Uc] Control Circuit Voltage
- 208...480 V
- Time Delay Type
- adjustable 0.1...10 s, +/- 10 % of the full scale value
- Non-Dissipating Shock Wave
- 4 kV IEC 60255-5 || 4 kV IEC 60664-1 || 4 kV IEC 61000-4-5
- Product Certifications
- GL || GOST || UL || C-tick || CSA
- Operating Rate
- <= 360 operations/hour full load
- Supply Voltage Limits
- 183-528 V AC
- Insulation Resistance
- > 500 MOhm 500 V DC IEC 60255-5 || > 500 MOhm 500 V DC IEC 60664-1
- Relay Type
- multifunction control relay
- Vibration Resistance
- 0.35 mm 5-57.6 Hz)IEC 60068-2-6 || 1 gn 57.6-150 Hz)IEC 60255-21-1
- Ambient Air Temperature For Operation
- -20-50°C
- Measurement Range
- 208...480 V voltage AC
- Run-Up Delay At Power-Up
- 650 ms
- Maximum Measuring Cycle
- 150 ms measurement cycle as true rms value
- Ip Degree Of Protection
- IP20 IEC 60529 terminals) || IP30 IEC 60529 casing)
- Switching Capacity In Va
- 1250 VA
- Adjustment Of Asymmetry Threshold
- 5...15 % of Un selected
- Marking
- CE
- Local Signalling
- for power ON LED (green) || for relay ON LED (yellow)
- Relay Monitored Parameters
- undervoltage detection || phase sequence || phase failure detection
- Voltage Range
- 208...480 V phase to phase
- Product Specific Application
- for 3-phase supply
- Electromagnetic Compatibility
- emission standard for industrial environments EN/IEC 61000-6-4 || emission standard for residential, commercial and light-industrial environments EN/IEC 61000-6-3 || immunity for industrial environments EN/IEC 61000-6-2
- Measurement Voltage Limits
- 183-528 V AC
- Ambient Air Temperature For Storage
- -40-70°C
