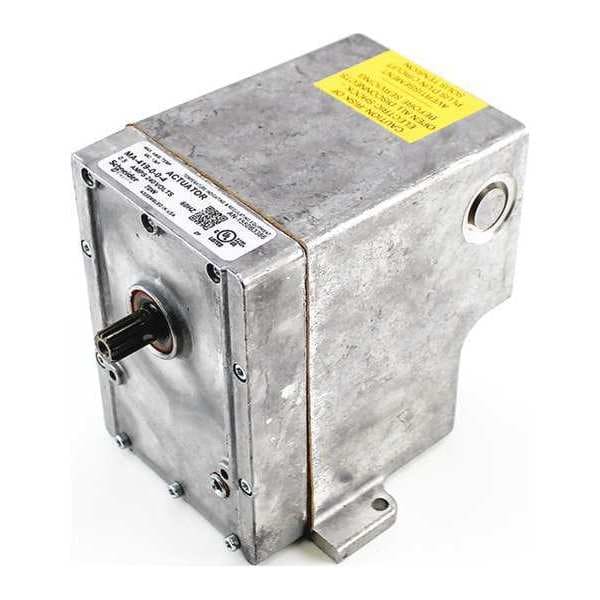

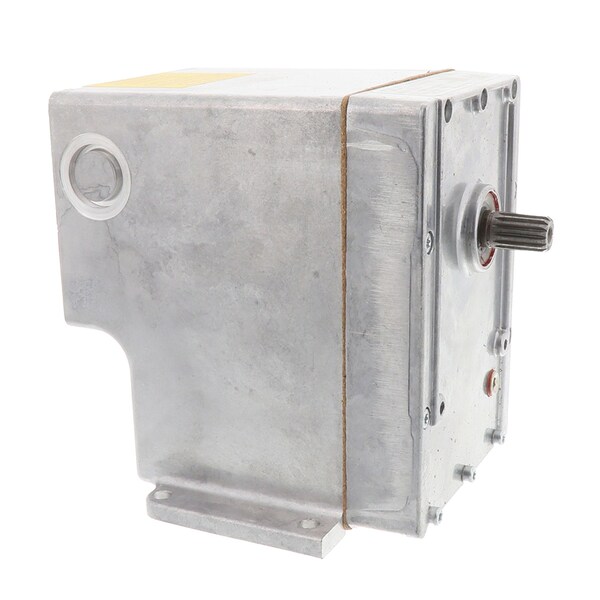

Schneider Electric Actuator, 240V, Spring Return, 2 Position MA-419 - main

Actuator, 240V, Spring Return, 2 Position

  • Mfr # MA-419

  • Zoro # G2492887

product price: $766.99
/ea
Free Shipping & Returns

Key Features

For Use With
Damper; Valve Actuators
Voltage
230V AC
Phase
3
Standards
Canadian Standard C22.2 No. 24, UL E29291, US Standard UL 873
Torque
60 in-lb
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MA-419
Zoro #
G2492887
UPC #
-
Country of Origin
United States

Dimensions

Overall Depth
6 9/16 in
Overall Width
5 3/8 in
Overall Height
5 3/4 in

Details

Item
Actuator, 240V, Spring Return, 2 Position
For Use With
Damper; Valve Actuators
Voltage
230V AC
Phase
3
Standards
Canadian Standard C22.2 No. 24, UL E29291, US Standard UL 873
Torque
60 in-lb
Compatible Valve Body Pattern
Three-Way, Two-Way
NEMA Rating
4
Electrical Connection Type
Screw Terminals
Operating Temperature - Maximum
136 Degrees F
Includes Electrical Leads
Electrical Leads Included
Frequency
60 Hz
Housing Material
Aluminum
Installation Orientation
Horizontal
Stroke Degree
180 Degrees
Compatible Valve Action
Normally Open
Auxiliary Contact Form
SPST
Mounting Style
Remote Mount
Return Action
Spring Return
Operating Temperature - Minimum
-40 Degrees F
Power Consumption
120 VA

Description

Electric Valve Actuator, Auxiliary Contact Form SPST, Compatible Valve Action Normally Open, Compatible Valve Body Pattern Three-Way, Two-Way, Electrical Connection Type Screw Terminals, Frequency 60 Hz, Housing Material Aluminum, Includes Electrical Leads Electrical Leads Included, Installation Orientation Horizontal, Mounting Style Remote Mount, NEMA Rating 4, Operating Temperature - Maximum 136 Degrees F, Operating Temperature - Minimum -40 Degrees F, Overall Depth 6 9/16 in
