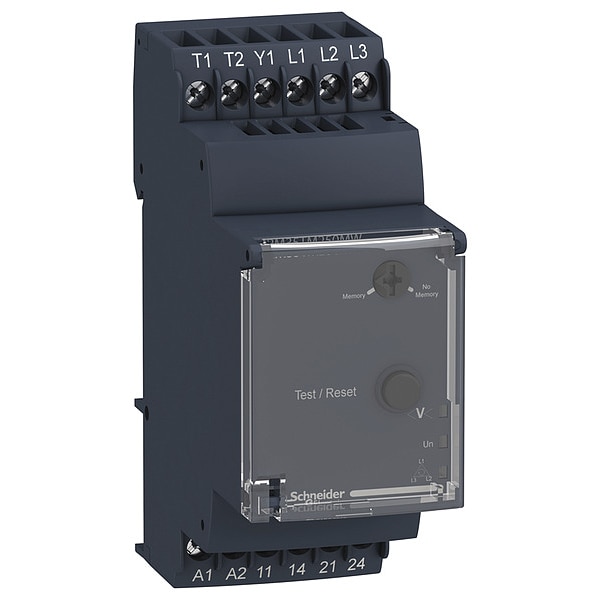

Item
Adjustable Current Sensing Relay
AC Contact Rating - Relay
5A @ 24/240V
Mounting - Relay
DIN Rail
Max. Inrush Current
5.0 A
Input Voltage
24 to 240V AC/DC
Item - Relay
Current Sensing Relay
Electrical Connection
Terminal Strip
Maximum Switching Current
5 A
Standards
C-Tick, CSA Certified, EN/IEC 60255-1, EN/IEC 61000-6-4, EU RoHS, GL, GOST, Reach Regulation, UL Listed
Minimum Switching Current
10 mA
Monitored Parameters
Overtemperature, Phase Failure, Phase Sequence, Undertemperature
Maximum Operating Temperature
122 Degrees F
Minimum Operating Temperature
-4 Degrees F
Maximum Switching Capacity
1,250 VA
Mechanical Operating Durability
30,000,000
Electrical Operating Durability
100,000
Restart Time Delay
1.5 sec
Contact Rating (DC)
5 A @ 250V
Maximum Switching Voltage
250V AC/DC
Power Consumption
1,250 VA
Contact Rating (AC)
5 A @ 24/240V
Pollution Degree
3 IEC 60664-1
Electrical Durability
10000 cycles
[Uc] Control Circuit Voltage
24 to 240 V, <= 3.6 V temperature control circuit T1-T2 terminals open)
Reset Threshold
1650 Ohm +/- 10 % temperature control circuit
[Ui] Rated Insulation Voltage
400 V IEC 60664-1
Tightening Torque
0.6-1 N.m IEC 60947-1
Relay Monitored Parameters
phase failure detection || phase sequence || test/reset button || motor temperature via PTC probe || selection (with or without memory)
Relative Humidity
95-95 % 55-55°C IEC 60068-2-30
Supply Voltage Limits
20.4-264 V AC || 20.4-264 V DC
Shock Resistance
15 gn 11 ms IEC 60255-21-1
Nominal Output Current
5A
Local Signalling
for power ON LED (green) || for phase of relay (R2) LED (yellow) || for temperature of relay (R1) LED (yellow)
Ambient Air Temperature For Storage
-40-70°C
Ip Degree Of Protection
IP20 IEC 60529 terminals) || IP30 IEC 60529 casing)
Operating Rate
<= 360 operations/hour full load
Connections - Terminals
screw terminals, 1 x 0.5 to 1 x 4 mm² AWG 20 to AWG 11) solid without cable end || screw terminals, 2 x 0.5 to 2 x 2.5 mm² AWG 20 to AWG 14) solid without cable end || screw terminals, 1 x 0.2 to 1 x 2.5 mm² AWG 24 to AWG 12) flexible with cable end || screw terminals, 2 x 0.2 to 2 x 1.5 mm² AWG 24 to AWG 16) flexible with cable end
Overvoltage Category
III IEC 60664-1
Voltage Range
176 to 528 V
Response Time
> 50 ms (input Y1 (contact Y1-T1) and push-button)
Relay Type
motor temperature control relay
Maximum Power Consumption In W
0.5 W DC
Time Delay Type
fixed 0.3 s
Tripping Threshold
3100 Ohm +/- 10 % temperature control circuit
Switching Capacity In Va
1250 VA
Short-Circuit Current
0.007 A temperature sensing circuit T1-T2 terminals short circuited)
Dielectric Test Voltage
2 kV AC 50 Hz, 1 min
Operating Position
any position without derating
Maximum Resistance
1500 Ohm temperature sensor 20°C
Measurement Range
208 to 480 V voltage AC || 0 to 20 Ohm short-circuit detection
Electromagnetic Compatibility
emission standard for industrial environments EN/IEC 61000-6-4 || emission standard for residential, commercial and light-industrial environments EN/IEC 61000-6-3 || immunity for industrial environments EN/IEC 61000-6-2
Immunity To Microbreaks
20 ms 20.4 V
Power Consumption In Va
0-4 VA 24 to 240 V AC
Product Or Component Type
3-phase control relay
Run-Up Delay At Power-Up
500 ms
Mechanical Durability
30000000 cycles
Utilisation Category
AC-12 IEC 60947-5-1 || AC-13 IEC 60947-5-1 || AC-14 IEC 60947-5-1 || AC-15 IEC 60947-5-1 || DC-12 IEC 60947-5-1 || DC-13 IEC 60947-5-1
Measurement Voltage Limits
176-528 V AC
Control Circuit Frequency
50 to 60 Hz +/- 10 %
Contacts Type And Composition
2 NO
Vibration Resistance
0.35 mm 5-57.6 Hz)IEC 60068-2-6 || 1 gn 57.6-150 Hz)IEC 60255-21-1
Non-Dissipating Shock Wave
4 kV
Product Specific Application
for 3-phase supply
Insulation Resistance
> 500 MOhm 500 V DC between supply and relay output IEC 60255-5 || > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1 || > 1 MOhm 500 V DC between supply and measurement IEC 60255-5 || > 500 MOhm 500 V DC between supply and relay output IEC 60664-1 || > 500 MOhm 500 V DC between measurement and relay output IEC 60255-5 || > 1 MOhm 500 V DC between supply and measurement IEC 60664-1
Mounting Support
35 mm symmetrical DIN rail conforming to EN/IEC 60715
Supply Frequency
50/60 Hz +/- 10 %
Product Certifications
CSA || C-tick || GOST || UL || GL
Resistance Across Terminals
602 mOhm
Reset Time
10000 ms output
Ambient Air Temperature For Operation
-20-50°C
