  13. Current Sensing Relay, 0.8to8A, 24to240VAC

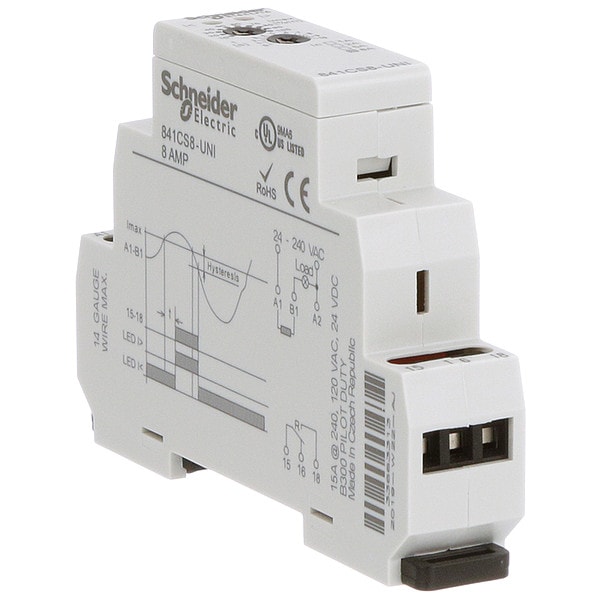

Schneider Electric Current Sensing Relay, 0.8to8A, 24to240VAC 841CS8-UNI - main

Current Sensing Relay, 0.8to8A, 24to240VAC

  • Mfr # 841CS8-UNI

  • Zoro # G2223934

product price: $94.49
/ea
Free Shipping & Returns

Key Features

Input or Control Voltage
24 to 240V AC
AC Contact Rating - Relay
15A @ 240V
DC Contact Rating - Relay
15A @ 24V
Mounting - Relay
DIN Rail
Contact Form - Relay
SPDT
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
841CS8-UNI
Zoro #
G2223934
UPC #
-
Country of Origin
Czechia

Dimensions

Body Width - Relay
3.5 in
Body Depth - Relay
0.7 in
Overall Height - Relay
2.6 in
Body Height - Relay
2.6 in
Width
0.69 in (17.6 mm)
Depth
2.52 in (64 mm)
Body Height
2.51 in
Body Depth
3.54 in
Body Width
0.69 in
Overall Depth
2.52 in
Height
3.54 in (90 mm)

Details

Item
Adjustable Current Sensing Relay
Input or Control Voltage
24 to 240V AC
AC Contact Rating - Relay
15A @ 240V
DC Contact Rating - Relay
15A @ 24V
Mounting - Relay
DIN Rail
Contact Form - Relay
SPDT
Sensing Amp Range
0.80 to 8.00A
Trip Point
0.8 to 8 A
Trip Delay
0.1 to 10 sec
Core Type - Relay
Internal
Mounting
Din Rail
Contact Form
SPDT
Electrical Connection
Terminal Strip
Max. Inrush Current
20 A
Sensor Opening
Internal
Item - Relay
Current Sensing Relay
Core Type
Internal
Status Indicator
LED Indicator
Input Voltage
24 to 240V AC
Contact Amps
15.00A
Type of Output
Relay
Current Rating
15 A
Wire Gauge
14 AWG
Trip Point Type
Adjustable
Adjustment Method
Rotary Knob
Horsepower @ 240V AC
1 hp
Maximum Switching Capacity
1.5 VA
Minimum Operating Temperature
-4 Degrees F
IP Rating
IP20
Contact Rating (AC)
15 A @ 240V
Mounting Style
DIN Rail
Standards
EU RoHS, Reach Regulation, WEEE
Maximum Operating Temperature
131 Degrees F
Frequency
50/60 Hz
Maximum Switching Voltage
12V AC
For Use With
Sensors
Monitored Parameters
Overcurrent
Power Consumption
1.5 VA
Contact Rating (DC)
15 A @ 24V
Weight
2.13 lb
Mechanical Operating Durability
30,000,000
Number of Pins
6
Contact Material
Silver Nickel
Minimum Switching Current
100 mA
Electrical Operating Durability
100,000
Dielectric Strength
4,000V
Rated Operational Current
15 A at 240 V AC-1
Product Type
Relay
Tripping Threshold
0.8...8 A
Electrical Durability
30000 cycles
Product Certifications
UL; CE; WEEE; RoHS
Local Signalling
1 LED red; 1 LED green
Mounting Support
35 mm DIN rail conforming to EN 60715
Tightening Torque
7.08 lbf.in (0.8 N.m)
IP Degree of Protection
IP20 IEC 60529 terminals); IP40 IEC 60529 front panel)
Time Delay Range
0...10 s
Rated Supply Voltage
24...240 V AC 50...60 Hz
Time Delay Type
Adjustable
AWG Gauge
AWG 14
Mechanical Durability
15000000 cycles
Product Range
Legacy
Breaking Capacity
4000 VA AC-1
Motor Power HP
0.5 hp 120 V AC; 1 hp 240 V
Sensory Type
Current sensor
Ambient Air Temperature for Storage
-22 to 158°F (-30 to 70°C)
Control Type
With adjustment knob front
Power consumption in VA
1.5 VA 24...240 V
Repeat Accuracy
+/- 1 %
Ambient Air Temperature for Operation
-4 to 131°F (-20 to 55°C)
Contacts Material
AgNi
Temperature Drift
< 0.1 %/°C

Description

Adjustable Current Sensing Relay, Contact Form SPDT, Contact Rating (AC) 15 A @ 240V, Contact Rating (DC) 15 A @ 24V, Core Type Internal, Current Rating 15 A, Input Voltage 24 to 240V AC, Monitored Parameters Overcurrent, Mounting Style DIN Rail, Number of Pins 6, Trip Point 0.8 to 8 A, Trip Point Type Adjustable, Adjustment Method Rotary Knob, Electrical Connection Terminal Strip, Status Indicator LED Indicator, Wire Gauge 14 AWG, Body Depth 3.54 in, Body Height 2.51 in, Body Width 0.69 in
