Item

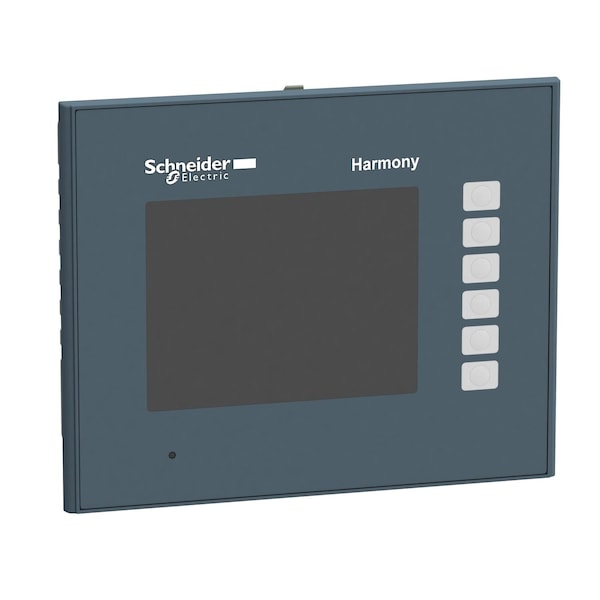

35 Color Touch Panel Qvgatft
Standards
UL 508 || EN 61131-2 || IEC 61000-6-2
Relative Humidity
10-90 % without condensation
Shock Resistance
147 m/s² 3 chocks in each direction X, Y and Z EN/IEC 61131-2
Local Signalling
status LED green, steady offline || status LED green, steady operating || status LED orange, flashing software starting up || status LED red, steady power supply (ON) || status LED clear, faded power supply (OFF)
Resistance To Electrostatic Discharge
6 kV contact discharge IEC 61000-4-2 level 3
Memory Description
flash EPROM, 64 MB
Terminal Type
touchscreen display
[Us] Rated Supply Voltage
24 V DC
Product Or Component Type
advanced touchscreen panel
Data Backed Up
128 kB internal RAM SRAM)
Ambient Air Temperature For Operation
0-50°C
Ambient Air Temperature For Storage
-20-60°C
Vibration Resistance
9.8 m/s² 9-150 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - EN/IEC 61131-2 || 3.5 mm 5-9 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - EN/IEC 61131-2
Software Designation
Vijeo Designer configuration software >= V6.1
Backlight Lifespan
50000 hours white 25°C
Battery Type
lithium internal RAM 100 days 5 day(s) 10 year(s)
Display type
backlit colour TFT LCD
Product Mounting
flush mounting
Operating Altitude
< 6561.68 ft (2000 m)
Supply Voltage Limits
19.2-28.8 V
Integrated Connection Type
COM1 serial link SUB-D 9 RS232C 2400 to 115200 bps || COM2 serial link RJ45 RS485 2400 to 115200 bps || COM2 serial link RJ45 RS485 187.5 kbps Siemens MPI || USB 2.0 type A || USB 2.0 type mini B
Touch Sensitive Zone
1024 x 1024
Fixing Mode
by 4 screw clamps
Nema Degree Of Protection
NEMA 4X front panel (indoor use)
Brightness
16 levels by touch panel || 16 levels by software
Control Button Type
6 operation defined using Vijeo Designer push-button key F1 to F6
Touch Panel
resistive film, 1000000 cycles
Downloadable Protocols
Schneider Electric Modicon Modbus || Schneider Electric Modicon Uni-TE || Schneider Electric Modicon Modbus Plus || Schneider Electric Modicon FIPWAY || Mitsubishi Melsec third party protocols || Omron Sysmac third party protocols || Rockwell Automation Allen-Bradley third party protocols || Siemens Simatic third party protocols
Display Colour
65536 colours
Type Of Cooling
natural convection
Maximum Power Consumption In W
5.2 W when power is not supplied to external devices || 4.2 W when backlight is OFF || 4.3 W when backlight is dimmed || 9.6 W
Ip Degree Of Protection
IP20 IEC 60529 rear panel) || IP65 IEC 60529 front panel)
Product Certifications
C-tick || cULus || CE || KCC || UKCA || UKEX
Display Resolution
320 x 240 pixels QVGA
Character Font
Chinese (simplified Chinese); ASCII (European characters); Japanese (ANK, Kanji); Korean; Taiwanese (traditional Chinese)
Range of Product
Harmony GTO
