- MFR #
- LC1D40AG7
- Zoro #
- G2886703
- UPC #
- 785901732112
- Country of Origin
- Indonesia
- Item

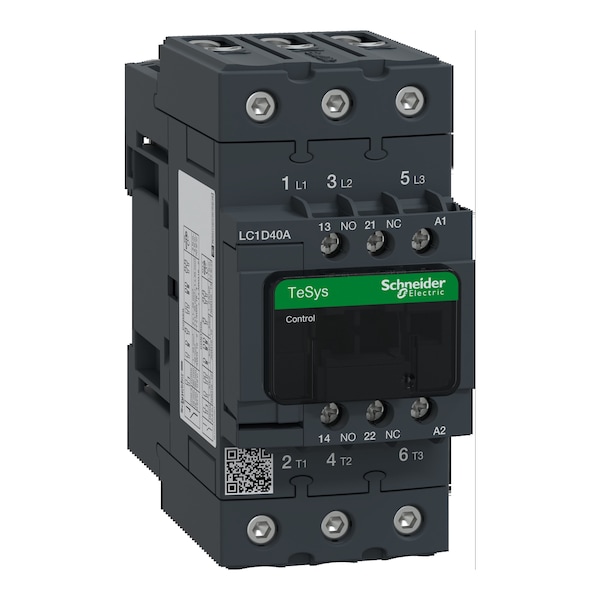

- IEC Magnetic Contactor
- Auxiliary Contact Form
- 1NC/1NO
- Coil Voltage
- 120V AC
- Number of Poles
- 3
- Full Load Amps-Inductive
- 40 A
- Full Load Amps-Resistive
- 60 A
- Reversing Capability
- Non-Reversing
- Terminal Connection Type
- Screw Clamp
- Number of Auxillary Contacts
- 2
- Standards
- CCC, CSA, CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, GOST, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, UL Listed
- HP @ 3 Phase - 575V
- 30 hp
- Enclosure NEMA Rating
- No Enclosure
- Reversing
- No
- Frame / Series / Class / Code
- TeSys
- Includes
- Everlink Power Connections
- HP @ 1 Phase - 230V
- 5
- Series
- TeSys Deca
- IP Rating
- IP20
- Signalling Circuit Frequency
- 25 to 400 Hz
- Operating Time
- 4 to 19 ms (Opening), 12 to 26 ms (Closing)
- Application
- Motor Control, Resistive Load
- Inrush VA
- 140 VA
- Watts Loss
- 4 to 5W
- Rated Making Capacity
- 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 800 A @ 440V (Power Circuit)
- Mechanical Durability
- 6 Mcycles
- Electrical Durability
- 1.4 Mcycles (60 A, AC-1, Less than 440 V); 1.5 Mcycles (40 A, AC-3, Less than 440 V); 1.5 Mcycles (40 A, AC-3e, Less than 440 V)
- Tightening Torque
- 1.7 Nm (Control Circuit), 2.5 to 8 Nm (Power Circuit)
- Insulation Resistance Range
- Greater Than 10 MOhms (Signalling Circuit)
- Fuse Amps
- 10 A (Signalling Circuit), 80 A (Type 1 Power Circuit), 80 A (Type 2 Power Circuit)
- Impedance
- 1.5 mOhm
- Impulse Withstand Voltage
- 6 kV
- Control Circuit Voltage Limits
- Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70°C 60 Hz) , Operational AC: 0.85 to 1.1 Uc (at -40 to 60°C 60 Hz), 1 to 1.1 Uc (at 60 to 70°C 60 Hz)
- Fire Rating
- UL 94 V1
- Max. Operating Watts
18.5 kW (at 380 to 400V AC 50/60 Hz AC-3), 11 kW (at 220 to 230V AC 50/60 Hz AC-3), 22 kW (at 415 to 440V AC 50/60 Hz AC-3), 22 kW (at 500V AC 50/60 Hz AC-3), 30 kW (at 660 to 690V AC 50/60 Hz AC-3), 9 kW (at 400V AC 50/60 Hz AC-4), 18.5 kW (at 380 to 400V AC 50/60 Hz AC-3e), 11 kW (at 220 to 230V AC 50/60 Hz AC-3e), 22 kW (at 415 to 440V AC 50/60 Hz AC-3e), 22 kW (at 500V AC 50/60 Hz AC-3e), 30 kW (at 660 to 690V AC 50/60 Hz AC-3e)
- Hold VA
- 13 VA
- Vibration Resistance
- 4 G (Contactor Closed), 2 G (Contactor Open)
- Includes Protective Cover
- Yes
- Operating Speed
- 3600 cycles per hr
- Net Weight
- 0.85 kg
- Overvoltage Category
- CAT III
- Rated Breaking Capacity
- 800 A @ 440V
- Switching Voltage
- 17 V (Signalling Circuit)
- Rated Short-Time Withstand Current
- 320 A (at 40°C for 10 s Power Circuit), 720 A (at 40°C for 1 s Power Circuit), 72 A (at 40°C for 10 min Power Circuit), 165 A (at 40°C for 1 min Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)
- Switching Current
- 5 mA (Signalling Circuit)
- Non-Overlap Time
- 1.5 ms
- Environmental Attributes
- Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3
- Features
- Without Built-In Suppressor Module
- Rated Insulation Volts
- 600/690V
- Shock Resistance
- 10 G for 11 ms (Contactor Open), 15 G for 11 ms (Contactor Closed)
- Horsepower @ Three Phase - 480V AC
- 30 hp
- Maximum Operating Temperature
- 140 Degrees F
- Frequency
- 50/60 Hz
- Horsepower @ Three Phase - 600V AC
- 30 hp
- NEMA Enclosure Rating
- No Enclosure
- Mounting Style
- DIN Rail, Plate
- Embedded Surge Suppressor
- No
- Full Load Current - Resistive
- 60 A
- Horsepower @ Three Phase - 240V AC
- 10 hp
- Electrical Operating Durability
- 1,400,000, 1,500,000
- Minimum Operating Temperature
- -40 Degrees F
- Phase
- Three
- Horsepower @ Three Phase - 208V AC
- 10 hp
- Number of Normally Open Main Contacts
- 3
- Horsepower @ Single Phase - 120V AC
- 3 hp
- Maximum Voltage Rating
- 690V AC
- Contactor Style
- IEC
- Full Load Current - Inductive
- 40 A
- Horsepower @ Single Phase - 240V AC
- 5 hp
- Mechanical Operating Durability
- 6,000,000
- Resistance Properties
- Fire Resistant, Insulation Resistant
- Includes Auxiliary Contacts
- Yes
- Conventional Free Air Thermal Current
- 10 A (at 60°C Signalling Circuit), 60 A (at 60°C Power Circuit)
