12 W when power is not supplied to external devices, 7 W when backlight is OFF, 8 W when backlight is dimmed, 17 W
Ambient Air Temperature For Storage
-20-60°C
Resistance To Electrostatic Discharge
6 kV contact discharge IEC 61000-4-2 level 3
Local Signalling
status LED green, steady offline, status LED green, steady operating, status LED orange, flashing software starting up, status LED red, steady power supply (ON), status LED clear, faded power supply (OFF), COM2 LED yellow, steady data is being transmitted, COM2 LED yellow, faded no data transmission, SD card LED green, steady card is inserted, SD card LED green, faded card is not inserted or is not being accessed
Display Colour
65536 colours
Display Resolution
800 x 600 pixels SVGA
Provided Equipment
1 protective cover
[Us] Rated Supply Voltage
24 V DC
Data Backed Up
512 KB internal RAM SRAM)
Operating Altitude
< 6561.68 ft (2000 m)
Enclosure Material
PPT
Supply
external source
Vibration Resistance
3.5 mm 5-9 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - IEC 61131-2, 1 gn 9-150 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - IEC 61131-2
Touch Sensitive Zone
1024 x 1024
Product Mounting
flush mounting
Operating System
Harmony
Nema Degree of Protection
NEMA 4X front panel (indoor use)
Ambient Air Temperature For Operation
0-55°C
Integrated Connection Type
COM1 serial link SUB-D 9 RS232C 2400...115200 bps, COM2 serial link RJ45 RS485 2400...115200 bps, COM2 serial link RJ45 RS485 187.5 kbps Siemens MPI, Ethernet RJ45 10BASE-T/100BASE-TX, Ethernet RJ45 IEEE 802.3, USB 2.0 type A, USB 2.0 type mini B
Relative Humidity
10-90 % without condensation
Data Storage Equipment
SD card, <= 32 GB, SDHC card, <= 32 GB
Shock Resistance
147 m/s² 3 chocks in each direction X, Y and Z IEC 61131-2
Supply Voltage Limits
19.2-28.8 V
Brightness
16 levels by touch panel, 16 levels by software

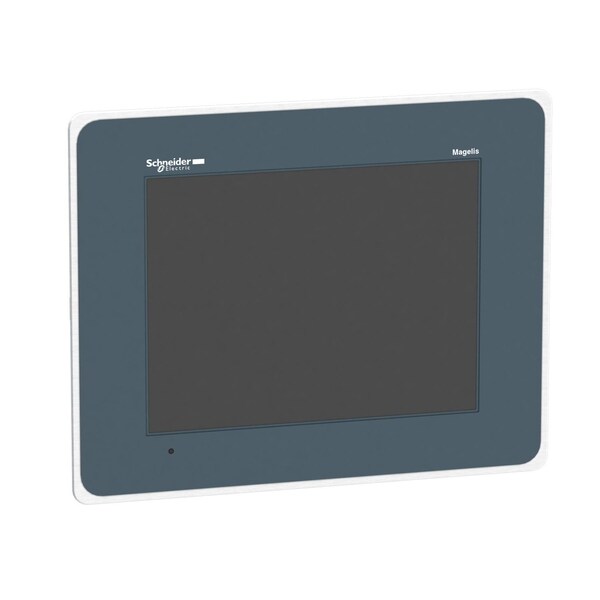

Product or Component Type
advanced touchscreen panel
Front Material
stainless steel 304
Battery Type
lithium internal RAM 100 days 5 day(s) 10 year(s)
Type of Cooling
natural convection
Fixing Mode
by 8 nuts, by 4 L brackets
Software Designation
Vijeo Designer configuration software >= V6.1
Display Type
backlit colour TFT LCD
Touch Panel
resistive film, 1000000 cycles
Backlight Lifespan
50000 hours white 25°C
Terminal Type
touchscreen display
Range of Product
Harmony GTO
Ip Degree of Protection
IP20 IEC 60529 rear panel), IP66K IEC 60529 front panel), IP66K DIN 40050-9 front panel)
Inrush Current
30 A
Product Or Component Type
advanced touchscreen panel
Display type
backlit colour TFT LCD
Ip Degree Of Protection
IP20 IEC 60529 rear panel) || IP66K IEC 60529 front panel) || IP66K DIN 40050-9 front panel)
Product Certifications
CE || C-tick || cULus || KCC || UKCA || UKEX
Downloadable Protocols
Schneider Electric Modicon Modbus,,Schneider Electric Modicon Uni-TE,,Schneider Electric Modicon Modbus Plus,,Schneider Electric Modicon FIPWAY,,Mitsubishi Melsec third party protocols,,Omron Sysmac third party protocols,,Rockwell Automation Allen-Bradley third party protocols,,Siemens Simatic third party protocols,,Schneider Electric Modicon Modbus TCP
Downloadable Protocols
Schneider Electric Modicon Modbus
Schneider Electric Modicon Uni-TE
Schneider Electric Modicon Modbus Plus
Schneider Electric Modicon FIPWAY
Mitsubishi Melsec third party protocols
Omron Sysmac third party protocols
Rockwell Automation Allen-Bradley third party protocols
Siemens Simatic third party protocols
Schneider Electric Modicon Modbus TCP
Nema Degree Of Protection
NEMA 4X front panel (indoor use)
Type Of Cooling
natural convection
Character Font
Japanese (ANK, Kanji); ASCII (European characters); Taiwanese (traditional Chinese); Chinese (simplified Chinese); Korean
