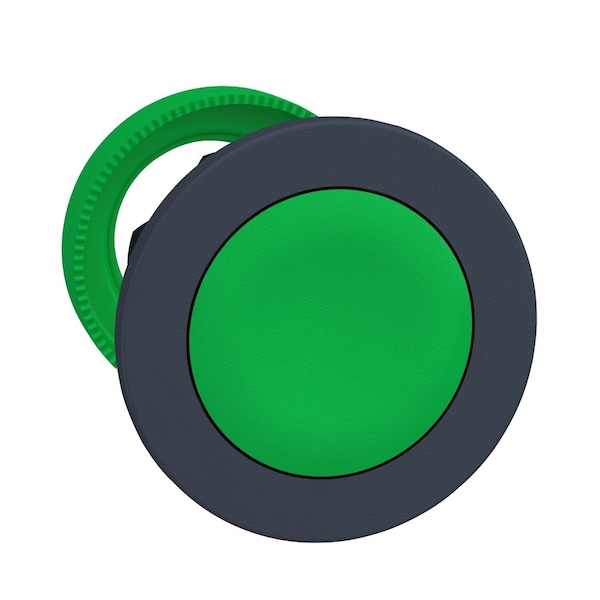

Antimicrobial Flush mounted push button head, Harmony XB5, plastic, green, 30mm, spring return, unmarked

  • Mfr # ZB5FA3

  • Zoro # G7655559

product price:
$
10.19
/ea

Key Features

Type of Operator
green flush, unmarked
Standards
UL || CSA
IP Rating
IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653.
Depth
30 mm
Height
37 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ZB5FA3
Zoro #
G7655559
UPC #
-
Country of Origin
Korea, Republic of

Dimensions

Depth
30 mm
Height
37 mm
Width
37 mm
Mounting Diameter
30.5 mm

Details

Item
Push Button Green Cap
Type of Operator
green flush, unmarked
Standards
UL || CSA
IP Rating
IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653.
Type Of Operator
spring return
Header
built-in-flush
Ip Degree of Protection
IP66 IEC 60529, IP67 IEC 60529, IP69 IEC 60529, IP69K ISO 20653, Type 13 UL 50 E, Type 12 UL 50 E, Type 4 UL 50 E, Type 4X UL 50 E
Range of Product
Harmony XB5
Ambient Air Temperature For Operation
-40-70°C
Protective Treatment
TH
Product or Component Type
head for non-illuminated push-button
Electrical Composition Code
C1 9 single front mounting, C2 9 single and double front mounting, C11 3 single front mounting, C15 1 single front mounting, SF1 3 single front mounting
Device Presentation
basic element
Device Short Name
ZB5
Ambient Air Temperature For Storage
-40-70°C
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Overvoltage Category
class II IEC 60536
Product Compatibility
ZBYF..., ZBZF32, ZBZF33, ZB5AZ
Bezel Material
dark grey plastic
Vibration Resistance
5 gn 10-500 Hz)IEC 60068-2-6, 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
Ik Degree of Protection
IK03 conforming to IEC 50102
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27, 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
Mechanical Durability
10000000 cycles
Shape of Signaling Unit Head
round

Description

Push Button Green Cap
