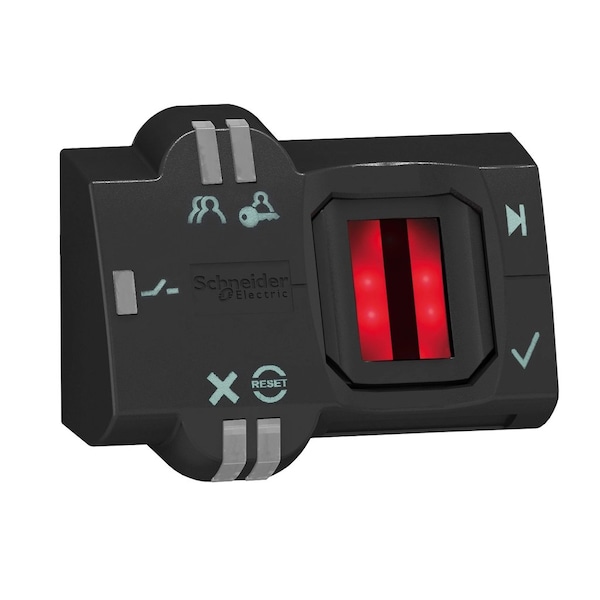

Schneider Electric Biometric Switch, Maintained, PNP, 2m Cable XB5S1B2L2 - main

Biometric Switch, Maintained, PNP, 2m Cable

  • Mfr # XB5S1B2L2

  • Zoro # G0438085

product price: $444.99
/ea
Free Shipping & Returns

Key Features

Connection
2m, 3 Wire Cable
Operating Temp.
23 Degrees to 122 Degrees F
Mounting Hole Size
22 mm
Width
2.73 in
Voltage
24V DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XB5S1B2L2
Zoro #
G0438085
UPC #
785901617716
Country of Origin
France

Dimensions

Mounting Hole Size
22 mm
Width
2.73 in
Height
2.13 in
Depth
1.53 in
Mounting Diameter
22 mm
Overall Depth
1 1/2 in
Overall Width
2 3/4 in
Panel Cutout Diameter
22 mm
Overall Height
2 1/8 in

Details

Item
Biometric Switch
Connection
2m, 3 Wire Cable
Operating Temp.
23 Degrees to 122 Degrees F
Voltage
24V DC
Housing Material
Polyamide
Circuit Type
PNP
Response Time
Less Than 1 second
IP Rating
IP20, IP65
Standards
CSA, RoHS, UL Listed
Green Environmental Attribute
Does not Contain Formaldehyde
NEMA Rating
12
Operation Type
Maintained
Max. Current
200 mA
Storage Capacity
200 Records
Electrical Connection
free wire ends 3 2 m
Series
XB5S
Type Of Operator
stay put
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Operator Profile
fingerprint reader
Bezel Material
dark grey plastic
Product Specific Application
industrial machines || materials handling
Cable Insulation Material
PvR
Maximum Switching Current
200 mA
Device Short Name
XB5S
Nema Degree Of Protection
NEMA 12
Connections - Terminals
1 pre-wired cable, 3 x 0.34 mm²
Operator Position Information
2 positions
Current Consumption
<= 70 mA no-load
Product Certifications
UL || CSA
[Us] Rated Supply Voltage
24 V DC
Protection Type
short-circuit || reverse polarity || overload protection
Local Signalling
for output state indicator 1 LED (green) || for administrator's registration mode 1 LED (orange) || for operator's registration mode 1 LED (orange) || for error 1 LED (red) || for reset 1 LED (red)
Output Type
PNP
Maximum Delay Recovery
1.5 s
Memory Usage
200 users with up to 2 fingerprints per user
Supply Voltage Limits
20-30 V DC
Function Of Module
bi-stable
Ip Degree Of Protection
IP20 EN/IEC 60529 rear face) || IP65 EN/IEC 60529 front face)
Marking
CE
Operating Position
horizontal position || flat surface installation || vertical surface installation
Ambient Air Temperature For Operation
-5-50°C
Maximum Delay Response
1.5 s
Vibration Resistance
+/- 3 mm 5-9 Hz)IEC 60068-2-6 || 1 gn 9-500 Hz)IEC 60068-2-6
Short-Circuit Protection
250 mA external fuse gG
[Ures] Residual Voltage
1 V closed state
Product Or Component Type
biometric switch
Ambient Air Temperature For Storage
-25-70°C
Enclosure Material
polyamide PA66
Maximum Delay First Up
3 s + 0.5 ms per user registered
NEMA Enclosure Rating
12
Operating Temperature - Maximum
122 Degrees F
Current - Maximum
200 mA
Memory Storage
200 Users With up to 2 Fingerprints per user
Connection Type
2 m Pre-Wired Cable (3-Wire)
Operating Temperature - Minimum
23 Degrees F
Switch Action
Maintained

Description

Biometric Switch, Operating Temp. 23 Degrees to 122 Degrees F, Mounting Hole Size 22 mm, Housing Material Polyamide, Operation Type Maintained, Connection 2m, 3 Wire Cable, NEMA Rating 12, IP Rating IP20, IP65, Voltage 24V DC, Width 2.73 in, Height 2.13 in, Depth 1.53 in, Max. Current 200 mA, Circuit Type PNP, Response Time Less Than 1 second, Storage Capacity 200 Records, Standards CSA, RoHS, UL Listed
