Shop SCHNEIDER ELECTRIC

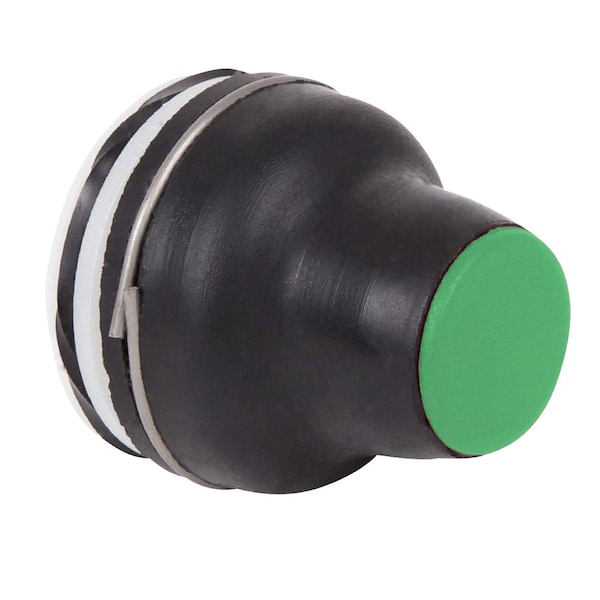

Booted head for pushbutton XAC-B - green - 4 mm, -25.+70 Degrees C

  • Mfr # XACB9113
  • Zoro # G7655726
product price:
$
11.79
/ea
Sold in multiples of 10 for $117.90

Key Features

Standards
IEC 60947-5-1 || CSA C22.2 No 14 || EN 60947-5-1
IP Rating
IP65 conforming to IEC 60529
Operator Color
green
Marking
unmarked
Ambient Air Temperature For Operation
-25-70°C
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
XACB9113
Zoro #
G7655726
UPC #
-
Country of Origin
Korea, Republic of

Details

Item
Pendant Station Booted Operator Xac
Standards
IEC 60947-5-1 || CSA C22.2 No 14 || EN 60947-5-1
IP Rating
IP65 conforming to IEC 60529
Operator Color
green
Marking
unmarked
Ambient Air Temperature For Operation
-25-70°C
Ambient Air Temperature For Storage
-40-70°C
Product or Component Type
head for push-button
Ik Degree of Protection
IK08 conforming to EN 50102
Shock Resistance
100 gn IEC 60068-2-27
Vibration Resistance
15 gn 10-500 Hz)IEC 60068-2-6
Product Compatibility
XENC...., XEND...., XESB2011, XESD2241, XENB...., XESD2251, XESD2201
Operating Travel
4 mm
Range of Product
Harmony XAC
Component Name
XACB
Operator Additional Information
booted
Electrical Shock Protection Class
class II IEC 61140

Description

Pendant Station Booted Operator Xac

Documents & Resources

Restrictions

WARNING: This product can expose you to chemicals including Nickel (Metallic), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
