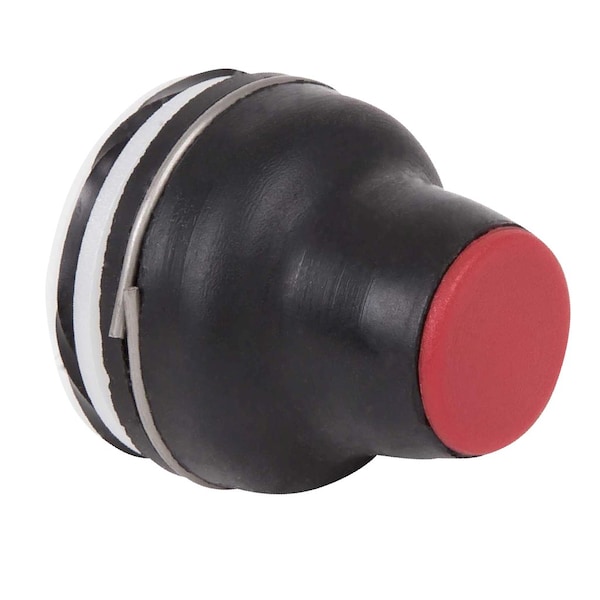

Booted head for pushbutton XAC-B - red - 4 mm, -25.+70 Degrees C
- Mfr # XACB9114
- Zoro # G7655683
product price:Â
$
9.65
/ea
Sold in multiples of 10 for
$96.50
Key Features
Standards
CSA C22.2 No 14 || IEC 60947-5-1 || EN 60947-5-1
IP Rating
IP65 conforming to IEC 60529
Operator Color
red
Shock Resistance
100 gn IEC 60068-2-27
Ambient Air Temperature For Operation
-25-70°C
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- XACB9114
- Zoro #
- G7655683
- UPC #
- -
- Country of Origin
- Korea, Republic of
Details
- Item
- Pendant Station Booted Operator Xac
- Standards
- CSA C22.2 No 14 || IEC 60947-5-1 || EN 60947-5-1
- IP Rating
- IP65 conforming to IEC 60529
- Operator Color
- red
- Shock Resistance
- 100 gn IEC 60068-2-27
- Ambient Air Temperature For Operation
- -25-70°C
- Component Name
- XACB
- Operating Travel
- 4 mm
- Product or Component Type
- head for push-button
- Electrical Shock Protection Class
- class II IEC 61140
- Ik Degree of Protection
- IK08 conforming to EN 50102
- Vibration Resistance
- 15 gn 10-500 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-70°C
- Marking
- unmarked
- Operator Additional Information
- booted
- Product Compatibility
- XENB...., XESD2251, XESD2241, XESD2201, XEND...., XESB2011, XENC....
- Range of Product
- Harmony XAC
Description
Pendant Station Booted Operator Xac
