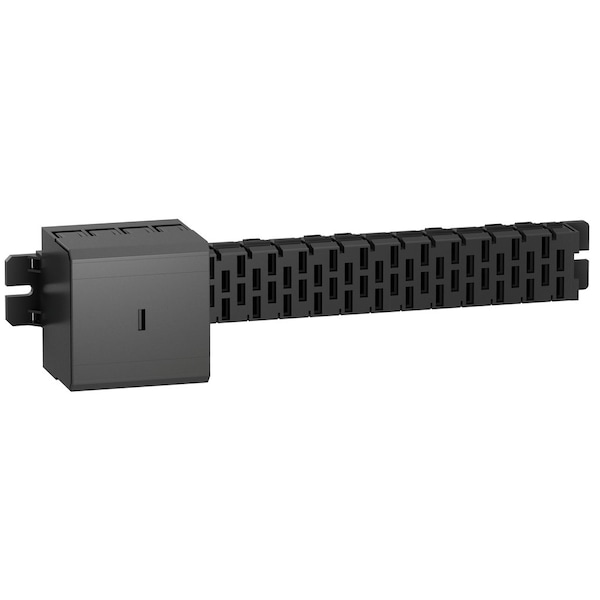

Schneider Electric Busbar, Linergy HK, 160A, 4 conductors, L992mm, for mounting in enclosure W1200mm AK5JB149 - main

Busbar, Linergy HK, 160A, 4 conductors, L992mm, for mounting in enclosure W1200mm

  • Mfr # AK5JB149

  • Zoro # G3574572

product price:  $405.99
/ea
Free Shipping & Returns

Key Features

Amps
160A
Height
992 mm
Width
81 mm
Depth
82 mm
Standards
IEC 60439
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
AK5JB149
Zoro #
G3574572
UPC #
-
Country of Origin
France

Dimensions

Height
992 mm
Width
81 mm
Depth
82 mm
Bar Width
45 mm
Enclosure/Cubicle Width
1200 mm

Details

Item
Busbar
Amps
160A
Standards
IEC 60439
Network Type
AC
Connections - Terminals
connector 2.5-70 mm2² flexible with cable end || connector 2.5-70 mm2² rigid
Mounting Position
vertical using side stop AK5BT01 on mounting plates AK5PA || horizontal
Ip Degree Of Protection
IPxx B conforming to IEC 60529
Device Application
distribution
Number Of Tap-Offs
48
Product Certifications
DNV || CSA || LROS (Lloyds register of shipping) || UL
[Ui] Rated Insulation Voltage
600 V CSA || 600 V UL || 690 V IEC 60439-1
Number Of Conductors
4
Range
Linergy
[Ie] Rated Operational Current
160 A 35DegC
[Ue] Rated Operational Voltage
400 V off-load plugging-in and unplugging, with supply switched on)IEC 60439-1 || 480 V off-load plugging-in and unplugging, with supply switched on)CSA || 480 V off-load plugging-in and unplugging, with supply switched on)UL || 600 V plugging-in and unplugging, with supply switched off)CSA || 600 V plugging-in and unplugging, with supply switched off)UL || 690 V plugging-in and unplugging, with supply switched off)IEC 60439-1
Network Frequency
50/60 Hz
Peak Current
25 kA
Protection Type
aM fuses In = 160 A, Isc = 100 kA, Ie = 160 A || gF fuses In = 160 A, Isc = 100 kA, Ie = 160 A || NS160H circuit breaker In = 160 A, Isc = 36 kA, Ie = 160 A || NS160H circuit breaker In = 160 A, Isc = 70 kA, Ie = 160 A
Flame Retardance
V0 conforming to UL 94
Tightening Torque
10 N.m
I2²T On Activation
10000000 A2².s
Fire Resistance
850DegC IEC 60695
I²T On Activation
10000000 A².s

Description

BUS BAR TRI N 160ALG988MM
