  11. Combo Busbar, 100A, 415V AC, 1 Phase

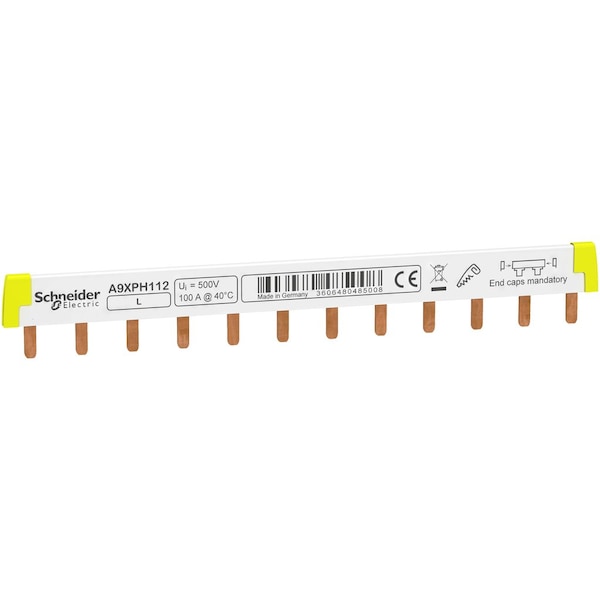

Schneider Electric Combo Busbar, 100A, 415V AC, 1 Phase A9XPH112 - main

Combo Busbar, 100A, 415V AC, 1 Phase

  • Mfr # A9XPH112

  • Zoro # G7685480

product price: $16.35
/ea

Key Features

Amps
100A
Voltage
415V AC
Number of Poles
1
Phase/Wire
1 Phase
Width
220 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
A9XPH112
Zoro #
G7685480
UPC #
-
Country of Origin
Germany

Dimensions

Width
220 mm

Details

Item
Combo Busbar
Amps
100A
Voltage
415V AC
Number of Poles
1
Phase/Wire
1 Phase
Standards
IEC 60947-7-1 || IEC 61439-2
Color
White RAL 9003)
Mounting Mode
horizontal
[Ui] Rated Insulation Voltage
500 V AC IEC 61439-2
Pollution Degree
3 IEC 60947-7-1
Range Compatibility
Acti 9 (Acti9 iC60) || Acti 9 (Acti9 iK60) || Acti 9 (Acti9 iID) || Acti 9 (Acti9 iID K) || Acti 9 (Acti9 iSW) || Acti 9 (Acti9 iSW-NA) || Multi9 (Multi9 C60)
Ip Degree Of Protection
IP20 with end-pieces and tooth covers
Lines Description
1L
Insulation
insulated
Distance Between Way
18 mm
Mounting Location
top or bottom tunnel type terminals || top or bottom double terminal
Total Number Of 18 Mm Modules
12
Fire Resistance
960DegC 30 s ) IEC 60695-2-1
Marking
L
Connection Pitch
18 mm
[Ue] Rated Operational Voltage
415 V AC
9 Mm Pitches
24
Number Of Ways
12 ways 1 L
[Ie] Rated Operational Current
100 A 40DegC
Device Presentation
cuttable
Connector Type
tooth
Range
Acti9
Enclosure Rating
IP20 with end-pieces and tooth covers

Description

Acti 9 - comb busbar - 1L - 18 mm pitch
