- MFR #
- LC1DWK12G7
- Zoro #
- G800403688
- UPC #
- -
- Country of Origin
- Czechia
- Item

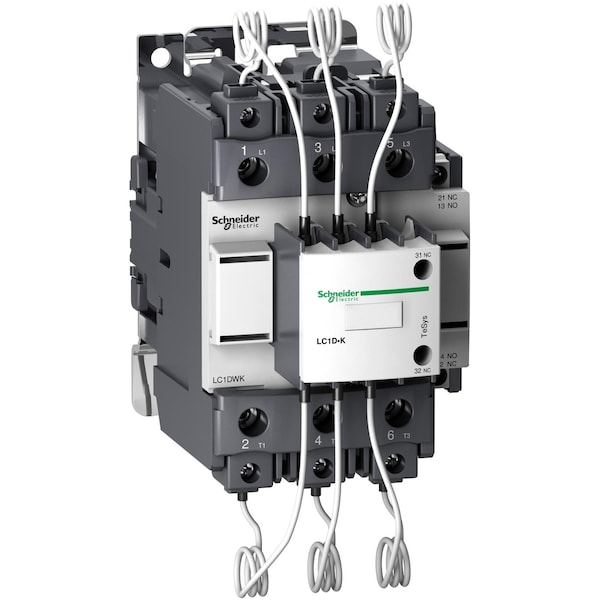

- TeSys LC1D.K capacitor duty contactor -
- Standards
- EN/IEC 60947-1 || EN/IEC 60947-4-1 || UL 60947-4-1 || CSA C22.2 No 60947-4-1
- Auxiliary Contact Composition
- 1 NO + 2 NC instantaneous
- Range
- TeSys
- [Uc] Control Circuit Voltage
- 120 V AC 50/60 Hz
- Product Certifications
- IECEE CB Scheme || UL || CSA || UKCA
- Ip Degree Of Protection
- IP20 front face IEC 60529
- [Ue] Rated Operational Voltage
- power circuit 690 V AC 50/60 Hz
- Connections - Terminals
control circuit screw clamp terminals 1 1-4 mm² solid || control circuit screw clamp terminals 2 1-4 mm² solid || control circuit screw clamp terminals 1 1-4 mm² flexible without cable end || control circuit screw clamp terminals 2 1-4 mm² flexible without cable end || control circuit screw clamp terminals 1 1-4 mm² flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end || power circuit connector 1 4-50 mm² solid || power circuit connector 2 4-25 mm² solid || power circuit connector 1 4-50 mm² flexible without cable end || power circuit connector 2 4-25 mm² flexible without cable end || power circuit connector 1 4-50 mm² flexible with cable end || power circuit connector 2 4-16 mm² flexible with cable end
- Ambient Air Temperature For Operation
- -5-60°C
- Device Application
- control
- Electrical Durability
- 300000 cycles 400 V || 200000 cycles 690 V
- Poles Description
- 3P
- Device Location In System
- inside delta interruption || line interruption
- Utilisation Category
- AC-6b
- Product Or Component Type
- capacitor duty contactor
- Pole Contact Composition
- 3 NO
- Tightening Torque
- power circuit 9 N.m connector || control circuit 1.7 N.m screw clamp terminals
- Product Name
- TeSys LC1D.K || TeSys Deca
- Reactive Power Rating
- 35 kvar 230-230 V AC 50 Hz 60°C || 63 kvar 400-400 V AC 50 Hz 60°C || 67 kvar 440-440 V AC 50 Hz 60°C || 104 kvar 690-690 V AC 50 Hz 60°C || 30 kvar 230-230 V AC 60 Hz 60°C || 60 kvar 460-460 V AC 60 Hz 60°C || 80 kvar 575-575 V AC 60 Hz 60°C
- Ambient Air Temperature For Storage
- -60-80°C
- Contactor Application
- power factor correction
- Device Short Name
- LC1DWK
- Operating Altitude
- 0 to 9842.52 ft (0 to 3000 m)
- Maximum Operating Rate
- 240 cyc/h
- Mounting Support
- DIN rail || plate
- Control Circuit Type
- AC 50/60 Hz
- Auxiliary Contacts Type
- mechanically linked 1 NO + 2 NC IEC 60947-5-1
