- Item

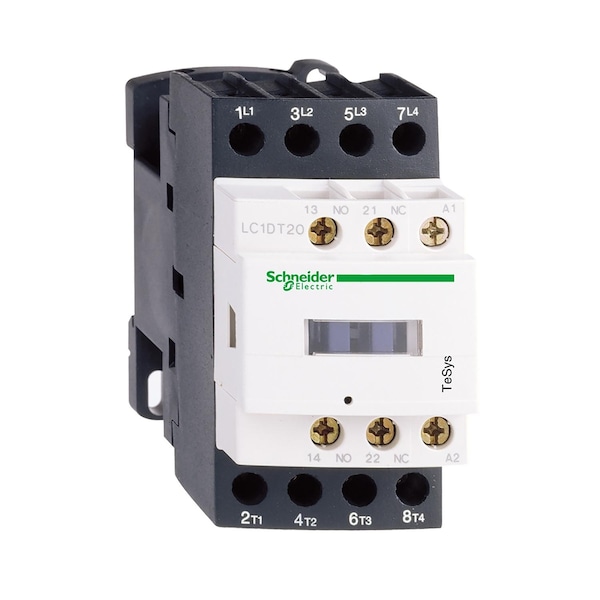

- Contactor 208V
- Standards
- EN 60947-4-1 || EN 60947-5-1 || IEC 60947-4-1 || IEC 60947-5-1 || UL 60947-4-1 || UL 60947-5-1 || CSA C22.2 No 60947-4-1 || CSA C22.2 No 60947-5-1 || GB/T 14048.4
- Power Dissipation Per Pole
- 1.56 W AC-1
- Auxiliary Contact Composition
- 1 NO + 1 NC
- [Ue] Rated Operational Voltage
- power circuit <= 690 V AC 25 to 400 Hz
- Irms Rated Making Capacity
- 250 A 440 V power circuit IEC 60947 || 140 A AC signalling circuit IEC 60947-5-1 || 250 A DC signalling circuit IEC 60947-5-1
- Safety Reliability Level
- B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- Electrical Durability
- 0.8 Mcycles 25 A AC-1 <= 440 V
- Contactor Application
- resistive load
- [Ui] Rated Insulation Voltage
- power circuit 690 V IEC 60947-4-1 || power circuit 600 V CSA || power circuit 600 V UL || signalling circuit 690 V IEC 60947-1 || signalling circuit 600 V CSA || signalling circuit 600 V UL
- Pollution Degree
- 3
- Operating Time
- 12 to 22 ms closing || 4 to 19 ms opening
- Product Or Component Type
- contactor
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947
- Mechanical Durability
- 15 Mcycles
- Maximum Operating Rate
- 3600 cyc/h 60°C
- Pole Contact Composition
- 2 NO + 2 NC
- Control Circuit Voltage Limits
- 0.3 to 0.6 Uc -40-60°C drop-out AC 50/60 Hz || 0.8 to 1.1 Uc -40-60°C operational AC 50 Hz || 0.85 to 1.1 Uc -40-60°C operational AC 60 Hz
- Permissible Ambient Air Temperature Around The Device
- -40-60°C || 60-70°C with derating
- Inrush Power In Va
- 70-70 VA 60 Hz 0.75 20°C) || 70-70 VA 50 Hz 0.75 20°C)
- Contact Compatibility
- M6
- Protective Treatment
- THIEC 60068-2-30
- Signalling Circuit Frequency
- 25 to 400 Hz
- Overvoltage Category
- III
- Ip Degree Of Protection
- IP20 front face IEC 60529
- Poles Description
- 4P
- Operating Altitude
- 0 to 9842.52 ft (0 to 3000 m)
- Non-Overlap Time
- 1.5 ms on de-energisation between NC and NO contact || 1.5 ms on energisation between NC and NO contact
- Compatibility Code
- LC1D
- [Uc] Control Circuit Voltage
- 208 V AC 50/60 Hz
- Climatic Withstand
- IACS E10 exposure to damp heat || IEC 60947-1 Annex Q category D exposure to damp heat
- Auxiliary Contacts Type
- mechanically linked 1 NO + 1 NC IEC 60947-5-1 || mirror contact 1 NC IEC 60947-4-1
- Fire Resistance
- 850°C IEC 60695-2-1
- Protective Cover
- with
- Minimum Switching Current
- 5 mA signalling circuit
- Connections - Terminals
- control circuit lugs-ring terminals 8 mm || power circuit lugs-ring terminals 8 mm
- Mounting Support
- plate || rail
- Tightening Torque
control circuit 1.7 N.m lugs-ring terminals flat Ø 6 mm M3.5 || control circuit 1.7 N.m lugs-ring terminals Philips No 2 M3.5 || power circuit 1.7 N.m lugs-ring terminals flat Ø 8 mm M3.5 || power circuit 1.7 N.m lugs-ring terminals Philips No 2 M3.5 || control circuit 1.7 N.m lugs-ring terminals pozidriv No 2 M3.5 || power circuit 1.7 N.m lugs-ring terminals pozidriv No 2 M3.5
- Coil Technology
- without built-in suppressor module
- Average Impedance
- 2.5 mOhm - Ith 25 A 50 Hz power circuit
- Utilisation Category
- AC-1 || AC-3 || AC-3e || AC-4
- [Ith] Conventional Free Air Thermal Current
- 25 A 60°C power circuit || 10 A 60°C signalling circuit
- Rated Breaking Capacity
- 250 A 440 V power circuit IEC 60947
- Heat Dissipation
- 2-3 W 50/60 Hz
- [Ie] Rated Operational Current
- 25 A 60°C) <= 440 V AC AC-1 power circuit
- Associated Fuse Rating
- 10 A gG signalling circuit IEC 60947-5-1 || 40 A gG <= 690 V type 1 power circuit || 25 A gG <= 690 V type 2 power circuit
- Device Short Name
- LC1D
- Minimum Switching Voltage
- 17 V signalling circuit
- Insulation Resistance
- > 10 MOhm signalling circuit
- Product Certifications
- UL || CSA || CCC || EAC || UKCA || CB || EU-RO-MR by DNV-GL
- Flame Retardance
- V1 conforming to UL 94
- [Icw] Rated Short-Time Withstand Current
- 105 A 40°C - 10 s power circuit || 210 A 40°C - 1 s power circuit || 30 A 40°C - 10 min power circuit || 61 A 40°C - 1 min power circuit || 100 A - 1 s signalling circuit || 120 A - 500 ms signalling circuit || 140 A - 100 ms signalling circuit
- Control Circuit Type
- AC 50/60 Hz
- Mechanical Robustness
- vibrations contactor open 2 Gn, 5 to 300 Hz) || vibrations contactor closed 4 Gn, 5 to 300 Hz) || shocks contactor open 10 Gn for 11 ms) || shocks contactor closed 15 Gn for 11 ms)
- Hold-In Power Consumption In Va
- 7.5-7.5 VA 60 Hz 0.3 20°C) || 7-7 VA 50 Hz 0.3 20°C)
- Pvc Free
- Yes
- Range of Product
- TeSys Deca
