  8. Complete body for pilot lights, Harmony XB6, red light block, with body fixing collar, integral LED, 230.240V AC

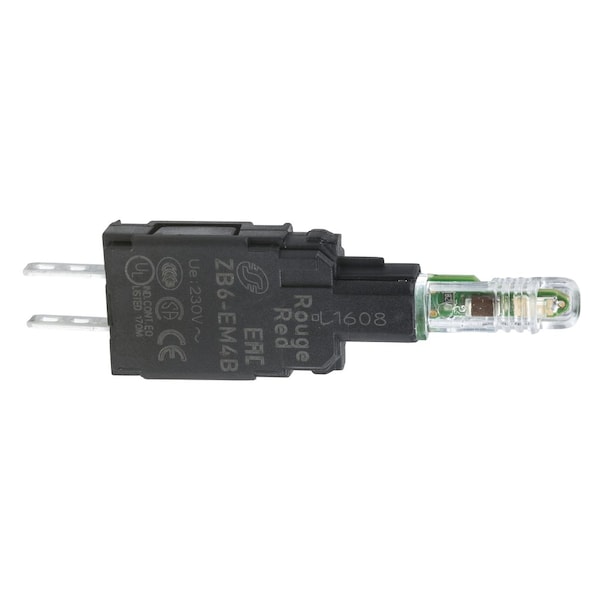

Schneider Electric Complete body for pilot lights, Harmony XB6, red light block, with body fixing collar, integral LED, 230.240V AC ZB6EM4B - main

Complete body for pilot lights, Harmony XB6, red light block, with body fixing collar, integral LED, 230.240V AC

  • Mfr # ZB6EM4B

  • Zoro # G600905917

product price:  $13.75
/ea
Sold in multiples of 5 for $68.75

Key Features

Operator Illumination
Illuminated
Head Color
Red
Head Material
Plastic
Terminal Connection
Faston
Standards
EN/IEC 60947-1, JIS C 852, EN/IEC 60947-5-5, CSA C22.2 No 14, EN/IEC 60947-5-1, UL 508, JIS C 4520
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
ZB6EM4B
Zoro #
G600905917
UPC #
-
Country of Origin
France

Dimensions

Cad Overall Depth
58 mm
Cad Overall Height
14 mm

Details

Item
Light Block for Pilot Light
Operator Illumination
Illuminated
Head Color
Red
Head Material
Plastic
Terminal Connection
Faston
Standards
EN/IEC 60947-1, JIS C 852, EN/IEC 60947-5-5, CSA C22.2 No 14, EN/IEC 60947-5-1, UL 508, JIS C 4520
Light Source Colour
red
Resistance To Fast Transients
2 kV IEC 61000-4-4
Electrical Shock Protection Class
class II IEC 61140
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Protective Treatment
TC
Product Or Component Type
complete body for pilot lights
Product Certifications
CCC || GOST || UL || CSA
Device Short Name
ZB6
Signalling Type
steady
Supply Voltage Limits
195-264 V AC
[Ui] Rated Insulation Voltage
250 V 3)EN/IEC 60947-1
Surge Withstand
1 kV in contact IEC 61000-4-5 || 2 kV in free air IEC 61000-4-5
Vibration Resistance
+/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6
Terminals Description Iso N°1
(X1-X2)PL
Bulb Base
integral LED
Connections - Terminals
Faston connectors 2.8 x 0.5 mm
Ambient Air Temperature For Storage
-40-70°C
Light Block Supply
direct
Light Source
LED
[Us] Rated Supply Voltage
230 to 240 V AC
Electromagnetic Emission
class B IEC 55011
[Uimp] Rated Impulse Withstand Voltage
4 kV EN 60947-1
Resistance To Electromagnetic Fields
10 V/m IEC 61000-4-3
Ambient Air Temperature For Operation
-25-70°C
Resistance To Electrostatic Discharge
6 kV on contact (on metal parts) IEC 61000-2-6 || 8 kV in free air (in insulating parts) IEC 61000-2-6
Operating Position
any position
Range of Product
Harmony XB6

Description

Red light block with body/fixing collar
