  8. Complete body light block assembly, Harmony XB4, metal, universal LED, body fixing collar, 230.240V AC

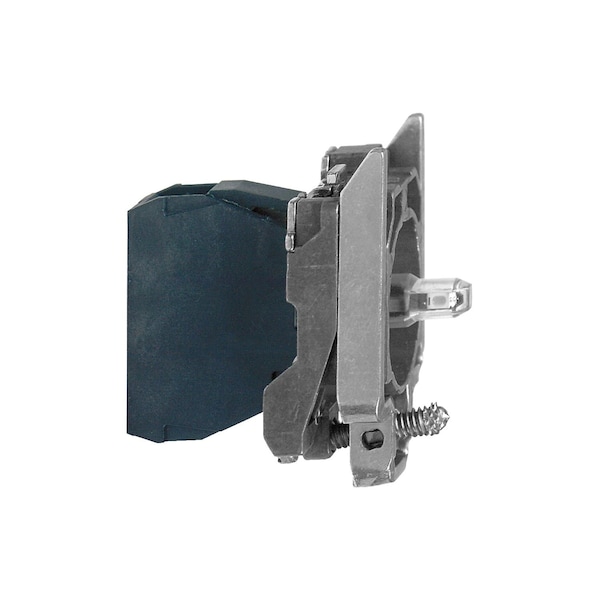

Schneider Electric Complete body light block assembly, Harmony XB4, metal, universal LED, body fixing collar, 230.240V AC ZB4BVM1 - main

Complete body light block assembly, Harmony XB4, metal, universal LED, body fixing collar, 230.240V AC

  • Mfr # ZB4BVM1

  • Zoro # G9255213

product price:  $51.85
/ea

Key Features

Standards
JIS C8201-5-1 || UL 508 || EN/IEC 60947-1 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || EN/IEC 60947-5-5 || JIS C8201-1
Cad Overall Width
30 mm
Connections - Terminals
screw clamp terminals, <= 2 x 1.5 mm² with cable end || screw clamp terminals, >= 1 x 0.22 mm² without cable end
Electrical Shock Protection Class
class I IEC 60536
Resistance To Electrostatic Discharge
6 kV on contact (on metal parts) IEC 61000-2-6 || 8 kV in free air (in insulating parts) IEC 61000-2-6
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
ZB4BVM1
Zoro #
G9255213
UPC #
-
Country of Origin
France

Dimensions

Cad Overall Width
30 mm
Cad Overall Depth
37 mm
Cad Overall Height
47 mm

Details

Item
Wht Protected Led W/Mnt Collar 230-240V
Standards
JIS C8201-5-1 || UL 508 || EN/IEC 60947-1 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || EN/IEC 60947-5-5 || JIS C8201-1
Connections - Terminals
screw clamp terminals, <= 2 x 1.5 mm² with cable end || screw clamp terminals, >= 1 x 0.22 mm² without cable end
Electrical Shock Protection Class
class I IEC 60536
Resistance To Electrostatic Discharge
6 kV on contact (on metal parts) IEC 61000-2-6 || 8 kV in free air (in insulating parts) IEC 61000-2-6
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Supply Voltage Limits
195-264 V AC
Product Certifications
GL || LROS (Lloyds register of shipping) || BV || DNV || CSA || UL Listed
Resistance To Fast Transients
2 kV IEC 61000-4-4
Device Presentation
basic sub-assemblies
Current Consumption
14 mA
Surge Withstand
1 kV IEC 61000-4-5
Electromagnetic Emission
class B IEC 55011
Light Source Colour
white
Protective Treatment
TH
Tightening Torque
0.8-1.2 N.m EN 60947-1
[Uimp] Rated Impulse Withstand Voltage
6 kV EN 60947-1
Product Or Component Type
complete body/light block assembly
Shape Of Screw Head
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Light Source
universal LED
Resistance To Electromagnetic Fields
10 V/m IEC 61000-4-3
Terminals Description Iso N°1
(X1-X2)PL
Ambient Air Temperature For Operation
-40-70°C
Ambient Air Temperature For Storage
-40-70°C
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Device Short Name
ZB4
Signalling Type
steady
[Ui] Rated Insulation Voltage
600 V 3)EN 60947-1
[Us] Rated Supply Voltage
230 to 240 V AC 50/60 Hz
Fixing Collar Material
zamak
Bulb Base
integral LED
Range of Product
Harmony XB4
Service Life
100000 h at rated voltage and 25°C

Description

Wht Protected Led W/Mnt Collar 230-240V
