- Item

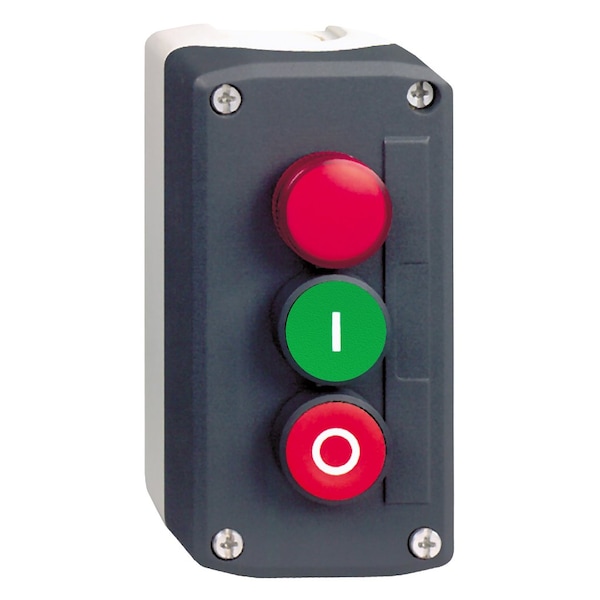

- Dark grey station - green flush/red flus
- Basic Material
- polycarbonate
- Type of Operator
- 2 flush push-buttons - 1 central pilot light
- NEMA Rating
- NEMA 13 || NEMA 4X
- Contact Rating
- slow-break
- Standards
- UL 508, EN/IEC 60947-1, EN/IEC 60947-5-4, JIS C8201-5-1, EN/IEC 60947-5-1, EN/IEC 60947-5-5, CSA C22.2 No 14, JIS C8201-1
- Housing Color
- light grey RAL 7035)
- Terminal Connection
- screw clamp terminal
- IP Rating
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Application
- Start-Stop function
- Voltage
- 600 V; 120 V AC
- Cable Entry
- 2 knock-outs for cable entry 14-14 mm, 2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm
- Lamp Type
- integrated and protected LED
- Material
- polycarbonate
- Control Station Composition
- 1 flush push-button, green 1 NO I, 1 flush push-button, red 1 NC O, 1 pilot light
- Marking Location
- marking on push-button
- Contacts Material
- silver alloy (Ag/Ni)
- Electrical Reliability
- λ < 10exp(-6) 5 V, 1 mA EN/IEC 60947-5-4, λ < 10exp(-8) 17 V, 5 mA EN/IEC 60947-5-4
- Resistance To High Pressure Washer
- 7000000 Pa 55°C 0.1 m
- Colour of Base of Enclosure
- light grey RAL 7035)
- Current Consumption
- 14 mA
- Resistance To Electrostatic Discharge
- 6 kV on contact (on metal parts) IEC 61000-4-2, 8 kV in free air (in insulating parts) IEC 61000-4-2
- [Us] Rated Supply Voltage
- 120 V AC
- Range of Product
- Harmony XALD
- Signalling Type
- steady
- Light Source
- integrated and protected LED
- [Ui] Rated Insulation Voltage
- 600 V 3)EN/IEC 60947-1
- Operators Description
- green ''I'' 1 NO - red ''O'' 1 NC
- Ip Degree of Protection
- IP66 IEC 60529, IP67, IP69, IP69K
- Mechanical Durability
- 10000000 cycles
- Service Life
- 100000 h at rated voltage and 25°C
- Colour of Marking
- black marking when white caps, white marking when green, red or black caps
- Surge Withstand
- 1 kV IEC 61000-4-5
- Overvoltage Category
- class II IEC 60536
- Colour of Cover
- dark grey RAL 7016)
- [Ith] Conventional Free Air Thermal Current
- 10 A EN/IEC 60947-5-1
- Ik Degree of Protection
- IK05 conforming to EN 50102
- Device Short Name
- XALD
- Operating Force
- 3.5 N NC changing electrical state, 3.8 N NO changing electrical state
- Product or Component Type
- complete control station
- Vibration Resistance
- 5 gn 12-500 Hz)IEC 60068-2-6
- Electromagnetic Emission
- class B IEC 55011
- Protective Treatment
- TH
- Nema Degree of Protection
- NEMA 13, NEMA 4X
- Connections - Terminals
- screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1, screw clamp terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1
- Shape of Screw Head
- cross Philips no 1, cross pozidriv No 1, slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
- Contact Operation
- slow-break
- Resistance To Electromagnetic Fields
- 10 V/m IEC 61000-4-3
- Ambient Air Temperature For Operation
- -40-70°C
- Light Source Colour
- red
- Product Destination
- for XB5 Ø 22 mm control and signalling units
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV EN/IEC 60947-1
- Short-Circuit Protection
- 10 A cartridge fuse gG EN/IEC 60947-5-1
- Control Station Application
- Start-Stop function
- Ambient Air Temperature For Storage
- -40-70°C
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Tightening Torque
- 0.8-1.2 N.m EN/IEC 60947-1
- Resistance To Fast Transients
- 2 kV IEC 61000-4-4
- Operating Travel
- 1.5 mm NC changing electrical state), 2.6 mm NO changing electrical state), 4.3 mm total travel)
- Electrical Durability
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
- Positive Opening
- with EN/IEC 60947-5-1 appendix K
- [Ie] Rated Operational Current
- 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1, 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1
- Operator Profile
- 2 flush push-buttons - 1 central pilot light
