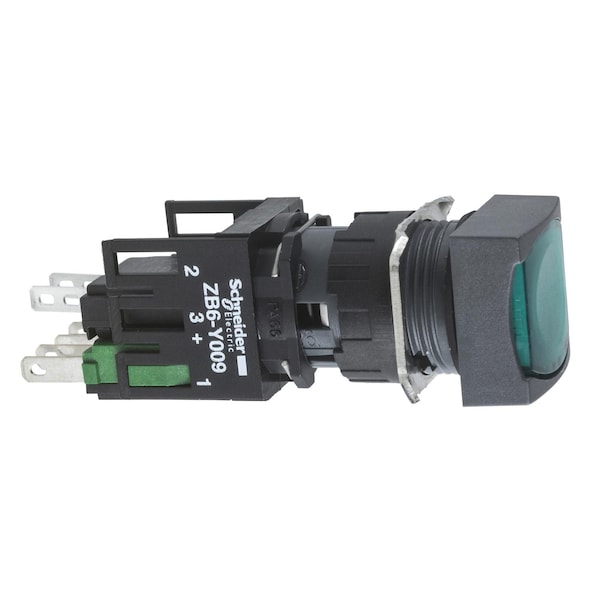

Complete illuminated push button, Harmony XB6, green square flush, 16mm, spring return, 1NO + 1NC, 12.24V

Push Button Operator

Flush

Momentary Pull / Maintained Push

Illuminated

Green

Plastic

Faston

JIS C 4520 || EN/IEC 60947-5-5 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || JIS C 852 || CSA C22.2 No 14

plastic

spring return

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

silver alloy (Ag/Ni)

250 V 3)EN/IEC 60947-1

XB6

IP65 IEC 60529

complete illuminated push-button

class B IEC 55011

1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C

3.5 N NO changing electrical state || 4.5 N NC changing electrical state

slow-break

6-30 V AC/DC

+/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6

15 mA

6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2

3 A 120 V, AC-15, B300 EN/IEC 60947-5-1 || 1.5 A 240 V, AC-15, B300 EN/IEC 60947-5-1 || 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1

LED

1 mm NO changing electrical state) || 2 mm NC changing electrical state) || 3.5 mm total travel)

1 kV direct contact IEC 61000-4-5 || 2 kV in free air IEC 61000-4-5

4 kV EN/IEC 60947-1

-25-70°C

-40-70°C

Λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4

6 A cartridge fuse gG

2 kV IEC 61000-4-4

any position

(21-22)NC || (13-14)NO

12 to 24 V AC/DC

1 NO + 1 NC

10 V/m IEC 61000-4-3

Faston connectors 2.8 x 0.5 mm

integral LED

class II IEC 61140

GOST || UL || CSA || CCC

steady

with EN/IEC 60947-5-1 appendix K

TC

square

green flush, unmarked

NEMA 13 UL 50 || NEMA 4 UL 50 || NEMA 4X UL 50 || NEMA 13 CSA C22.2 No 94 || NEMA 4 CSA C22.2 No 94 || NEMA 4X CSA C22.2 No 94

Harmony XB6
