Schneider Electric

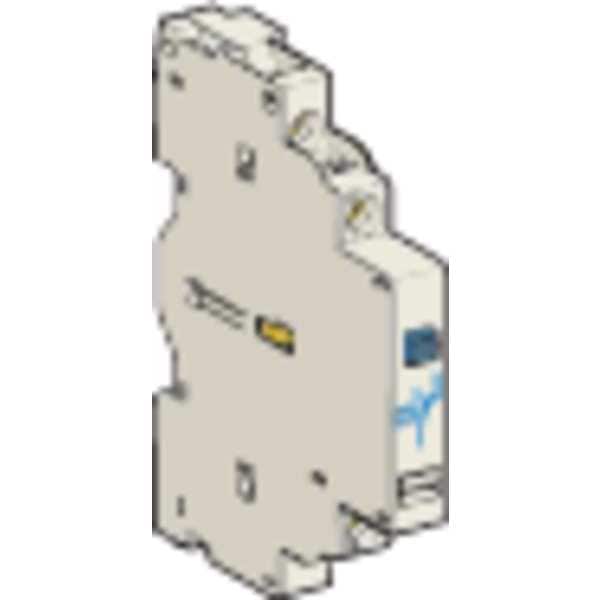

Manstarter Short Cir Contact 575Vac 1

product price: $35.65
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Features Mercury Free
  • Width 9.3 mm
  • Depth 66 mm
  • Height 89 mm
  • Standards UKCA
See all product information

Product Information

Dimensions

Width 9.3 mm
Depth 66 mm
Height 89 mm

Details

Item Manstarter Short Cir Contact 575Vac 1
Features Mercury Free
Standards UKCA
Weight 0.055 kg
Operating Voltage 24 to 240V AC; 24 to 60V DC
Product Or Component Type Auxiliary contact block
Pole Contact Composition 1 C/O
Minimum Switching Current 5 mA
Rated Operational Power in W 120 W 240 V DC-13 100000 cycles; 140 W 110 V DC-13 100000 cycles; 140 W 24 V DC-13 100000 cycles; 180 W 60 V DC-13 100000 cycles; 240 W 48 V DC-13 100000 cycles; 15 W 48 V DC-13 1000 cycles; 24 W 24 V DC-13 1000 cycles; 9 W 60 V DC-13 1000 cycles
Auxiliary Contacts Operation Short-circuit signal 1 C/O
Product Compatibility GV2L; GV2ME; GV2RT; GV3L; GV2P; GV3P; GV2LE
Tightening Torque 12.39 lbf.in (1.4 N.m) screw clamp terminals
Rated Operational Power in VA 36 VA 24 V AC-14 1000 cycles 1.5 A; 48 VA 48 V AC-14 1000 cycles 1 A; 72 VA 110 to 127 V AC-14 1000 cycles 0.5 A; 72 VA 230 to 240 V AC-14 1000 cycles 0.3 A
Protection Type GB2CB to circuit breaker; GG fuse 10 A
Mounting Location Left side
Rated Insulation Voltage 690 V IEC 60947-1; 300 V UL 508; 300 V CSA C22.2 No 14
Rated Operational Voltage 24 to 240 V AC; 24 to 60 V DC
Environmental Characteristic Normal environment
Color Dark Gray
Minimum Switching Voltage 17 V
Range Compatibility TeSys; TeSys GV3 GV3P circuit breaker; TeSys GV3 GV3L circuit breaker
Mechanical Durability 100000 cycles
Conventional Free Air Thermal Current 2.5 A for fault signalling

Description

Manstarter Short Cir Contact 575Vac 1
