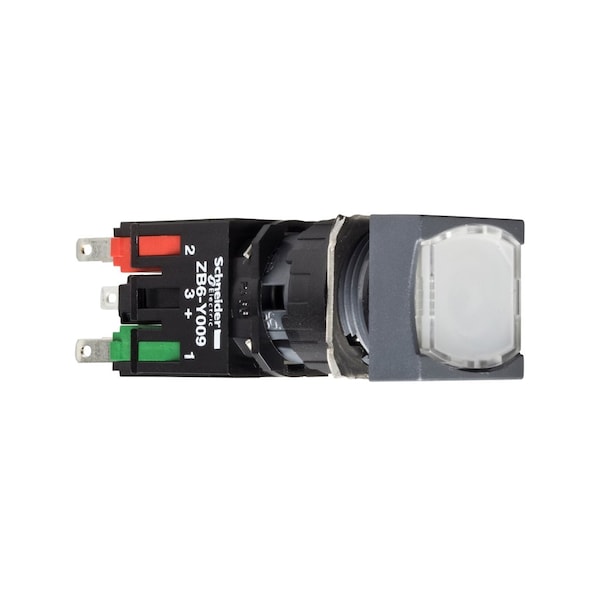

Complete illuminated push button, Harmony XB6, white square flush, 16mm, spring return 1NO 12.24V

  • Mfr # XB6CW1B1B

  • Zoro # G010769758

product price:  $31.49
/ea

Key Features

Push Button Style
Flush
Action
Momentary Pull / Maintained Push
Operator Illumination
Illuminated
Panel Cutout Diameter
16 mm
Head Color
White
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
XB6CW1B1B
Zoro #
G010769758
UPC #
-
Country of Origin
Mexico

Dimensions

Panel Cutout Diameter
16 mm
Width
18 mm
Height
18 mm
Mounting Diameter
16 mm

Details

Item
Illuminated Push Button
Push Button Style
Flush
Action
Momentary Pull / Maintained Push
Operator Illumination
Illuminated
Head Color
White
Head Material
Plastic
Terminal Connection
Faston
Standards
IEC 60947-1, IEC 60947-5-1, CSA C22.2 No 14, JIS C 4520, JIS C 852, IEC 60947-5-5
Type of Operator
spring return
Bezel Material
plastic
Operating Travel
1 mm NO changing electrical state), 3.5 mm total travel)
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Protective Treatment
TC
Connections - Terminals
Faston connectors 2.8 x 0.5 mm
[Ie] Rated Operational Current
3 A 120 V, AC-15, B300 IEC 60947-5-1, 1.5 A 240 V, AC-15, B300 IEC 60947-5-1, 0.1 A 250 V, DC-13, R300 IEC 60947-5-1, 0.22 A 125 V, DC-13, R300 IEC 60947-5-1
Shape of Signaling Unit Head
square
Positive Opening
with IEC 60947-5-1 appendix K
Ambient Air Temperature For Storage
-40-70°C
Signalling Type
steady
Electrical Shock Protection Class
class II IEC 61140
Resistance To Fast Transients
2 kV IEC 61000-4-4
Surge Withstand
1 kV direct contact IEC 61000-4-5, 2 kV in free air IEC 61000-4-5
Ip Degree of Protection
IP65 IEC 60529
Supply Voltage Limits
6-30 V AC/DC
Contacts Type And Composition
1 NO
Resistance To Electrostatic Discharge
6 kV on contact (on metal parts) IEC 61000-4-2, 8 kV in free air (in insulating parts) IEC 61000-4-2
Vibration Resistance
+/- 3 mm 2-500 Hz)IEC 60068-2-6, 5 gn 2-500 Hz)IEC 60068-2-6
[Uimp] Rated Impulse Withstand Voltage
4 kV IEC 60947-1
Operating Force
3.5 N NO changing electrical state
Electromagnetic Emission
class B IEC 55011
Current Consumption
15 mA
Operator Profile
white flush, unmarked
[Us] Rated Supply Voltage
12...24 V AC/DC
Device Short Name
XB6
Bulb Base
integral LED
Electrical Durability
1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Contact Operation
slow-break
Range of Product
Harmony XB6
Operating Position
any position
Ambient Air Temperature For Operation
-25-70°C
Nema Degree of Protection
NEMA 13 UL 50, NEMA 4 UL 50, NEMA 4X UL 50, NEMA 13 CSA C22.2 No 94, NEMA 4 CSA C22.2 No 94, NEMA 4X CSA C22.2 No 94
Product or Component Type
complete illuminated push-button
Contacts Material
silver alloy (Ag/Ni)
[Ui] Rated Insulation Voltage
250 V 3)IEC 60947-1
Electrical Reliability
λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4
Short-Circuit Protection
6 A cartridge fuse gG
Resistance To Electromagnetic Fields
10 V/m IEC 61000-4-3
Light Source
LED
Terminals Description Iso N°1
(13-14)NO

Description

WHITE ILLUMINATED PUSHBUT TO N DIAM 16 F

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
