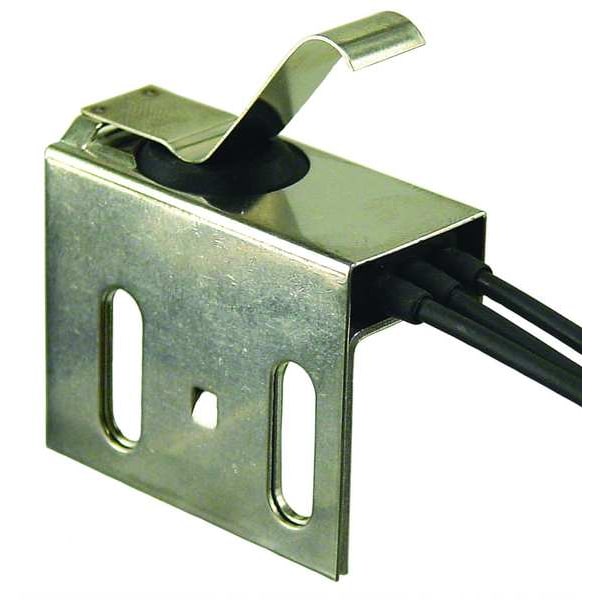

Water Proof Limit Switch, Leaf, Lever, SPDT, 5A at 120V AC, Actuator Location: Top

  • Mfr # E1092-555

  • Zoro # G2444732

product price:
$
62.39
/ea

Key Features

Basic Actuator Style - Limit Switch
Lever
Actuator Style - Limit Switch
Leaf, Lever
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
5A at 120V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
E1092-555
Zoro #
G2444732
UPC #
-
Country of Origin
United States
Item
Water Proof Limit Switch
Basic Actuator Style - Limit Switch
Lever
Actuator Style - Limit Switch
Leaf, Lever
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
5A at 120V
DC Contact Rating - Limit Switch
5A at 28V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Side Flange
Number of Poles
1
NEMA Rating
No Nema Rating
DC Contact Rating
5 A @ 28 V
Boot Sealed Actuator - Limit Switch
No
Stem Thread - Limit Switch
No Stem
Voltage Rating
120VAC/28VDC
Body Material
Stainless Steel
Body Style (Limit Switch)
Miniature
Contact Form - Limit Switch
SPDT
Travel
0.69 in Maximum
Actuator Location
Top
Operating Temp. Range
-40 Degrees to 185 Degrees F
Mounting Hole - Limit Switch
(2) 0.22 in x 0.50 in Slot
Roller Material
Stainless Steel
Series
E1
Arm Material
Stainless Steel
Actuator Location (Limit Switch)
Top
Actuator Style (Limit Switch)
Lever, Leaf
Mounting Hole Spacing - Limit Switch
1.00 in
Basic Actuator Style (Limit Switch)
Lever
AC Contact Rating
5 A @ 120 V
Movement
One Way Vertical and Direction Horizontal
Actuator Style
Roller Lever Plunger
IP Rating
IP68
Contact Form
SPDT
Boot Sealed Actuator (Limit Switch)
No
Limit Switch Style
Water Proof Limit Switch
Electrical Connection
Flying Leads
Amps
5
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Boot Sealed Actuator
No Boot Included
Number of Mounting Holes
2
Mounting Hole Vertical Center to Center Distance
13 mm
Mounting Hole Horizontal Center to Center Distance
25 mm
Roller Adjustability
Fixed
Operating Temperature - Minimum
-40 Degrees F
NEMA Enclosure Rating
No Enclosure
Includes Actuator
Actuator Included
Hazardous Location Specification
Not Rated
Operating Temperature - Maximum
185 Degrees F
Operating Force - Maximum
48 ozf
Directional Movement
Linear
Total Travel
0.87 in
Roller Position
Top
Arm Adjustability
Fixed
Action
Momentary
Mounting Style
Side Flange

Description

Limit Switch, Actuator Style - Limit Switch Leaf, Lever, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 5A @ 120V, DC Contact Rating - Limit Switch 5A @ 28V, Contact Form- Switches SPDT, Actuator Length - Limit Switch 0.81 in, Body Height - Limit Switch 1.53 in, Body Width - Limit Switch 1.75 in, Body Depth - Limit Switch 0.97 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating No NEMA Rating, Mounting - Limit Switch Side Flange
