  15. Complete pilot light, Harmony XB6, square red, plastic, 16mm, integral LED, 12.24V

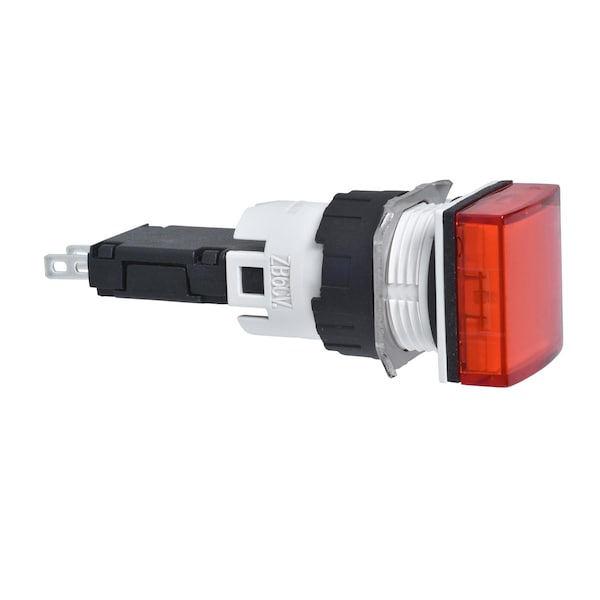

Schneider Electric Complete pilot light, Harmony XB6, square red, plastic, 16mm, integral LED, 12.24V XB6CV4BB - main

Complete pilot light, Harmony XB6, square red, plastic, 16mm, integral LED, 12.24V

  • Mfr # XB6CV4BB

  • Zoro # G0593385

product price: $22.59
/ea

Key Features

Voltage
12 to 24V AC/DC
Color
Red
Lamp Type
LED
Shape
Square
Contact Form
(+ -)PL
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XB6CV4BB
Zoro #
G0593385
UPC #
785901357223
Country of Origin
Mexico

Dimensions

Length
57 mm
Height
18 mm
Width
18 mm
Depth
2.24 in (57 mm)
Mounting Diameter
0.63 in (16 mm)

Details

Item
Push Button Light Module 240Vac 15A Xb6
Voltage
12 to 24V AC/DC
Color
Red
Lamp Type
LED
Shape
Square
Contact Form
(+ -)PL
Terminal Connection
Faston Connector
Bezel
Plastic
Standards
EN/IEC 60947-5-1; EN/IEC 60947-5-5; UL 508; JIS C 852; JIS C8201-5-1; CSA C22.2 No 14; EN/IEC 60947-1; JIS C8201-1; CCC; UL; GOST; CSA
NEMA Rating
13, 4, 4X
IP Rating
IP65
Type
Steady Signal
Supply Voltage Limits
6 to 30 V AC/DC
IP Degree Of Protection
IP65 IEC 60529
Product Certifications
CSA; CCC; GOST; UL
Ambient Air Temperature For Operation
-13 to 158°F (-25 to 70°C)
Surge Withstand
1 kV direct contact IEC 61000-4-5; 2 kV in free air IEC 61000-4-5
Rated Insulation Voltage
250 V 2)EN/IEC 60947-1
Connections - Terminals
Faston connectors 2.8 x 0.5 mm
Product Or Component Type
Complete pilot light
Protective Treatment
TC
Rated Supply Voltage
12 to 24 V AC/DC
Resistance To Electromagnetic Fields
9.14 V/m (10 V/m) IEC 61000-4-3
Operating Position
Any position
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27; 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
NEMA Degree Of Protection
NEMA 13 UL 50; NEMA 4 UL 50; NEMA 4X UL 50; NEMA 13 CSA C22.2 No 94; NEMA 4 CSA C22.2 No 94; NEMA 4X CSA C22.2 No 94
Electromagnetic Emission
Class B EN 55011
Resistance To Electrostatic Discharge
6 kV on contact (on metal parts) IEC 61000-4-2; 8 kV in free air (in insulating parts) IEC 61000-4-2
Signalling Type
Steady
Vibration Resistance
+/- 3 mm 2 to 500 Hz)IEC 60068-2-6; 5 gn 2 to 500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage
-40 to 158°F (-40 to 70°C)
Light Block Supply
Direct
Electrical Shock Protection Class
Class II IEC 61140
Resistance To Fast Transients
2 kV IEC 61000-4-4
Bulb Base
Integral LED
Current Consumption
15 mA
Rated Impulse Withstand Voltage
4 kV EN/IEC 60947-1
Device Short Name
XB6
[Us] Rated Supply Voltage
12...24 V AC/DC
Range of Product
Harmony XB6

Description

Push Button Light Module 240Vac 15A Xb6
