  15. Complete pilot light, Harmony XB6, square yellow, plastic, 16mm, integral LED, 12.24V

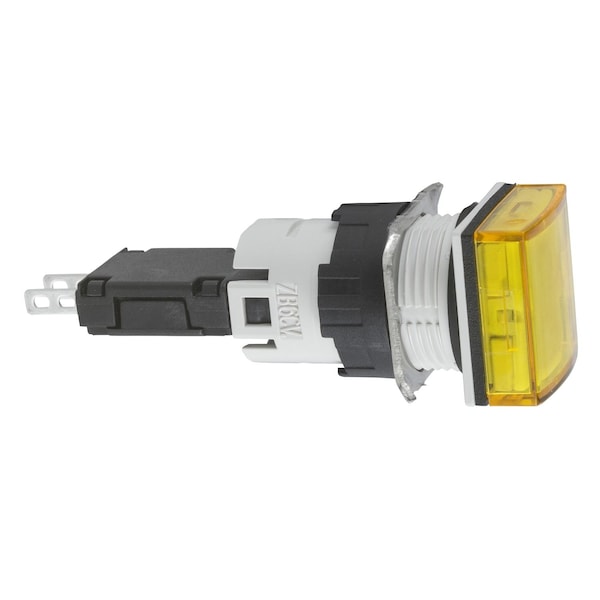

Schneider Electric Complete pilot light, Harmony XB6, square yellow, plastic, 16mm, integral LED, 12.24V XB6CV5BB - main

Complete pilot light, Harmony XB6, square yellow, plastic, 16mm, integral LED, 12.24V

  • Mfr # XB6CV5BB

  • Zoro # G0857398

product price: $22.59
/ea

Key Features

Voltage
12 to 24V AC/DC
Color
Yellow
Lamp Type
LED
Shape
Square
Terminal Connection
Faston Connector
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XB6CV5BB
Zoro #
G0857398
UPC #
785901357230
Country of Origin
Mexico

Dimensions

Width
18 mm
Height
18 mm
Length
57 mm
Depth
2.24 in (57 mm)
Mounting Diameter
0.63 in (16 mm)

Details

Item
Push Button Light Module 240Vac 15A Xb6
Voltage
12 to 24V AC/DC
Color
Yellow
Lamp Type
LED
Shape
Square
Terminal Connection
Faston Connector
Contact Form
(+ -)PL
Bezel
Plastic
IP Rating
IP65
NEMA Rating
13, 4, 4X
Standards
EN/IEC 60947-5-1; EN/IEC 60947-5-5; UL 508; JIS C 852; JIS C8201-5-1; CSA C22.2 No 14; EN/IEC 60947-1; JIS C8201-1; CCC; UL; GOST; CSA
Type
Steady Signal
NEMA Degree Of Protection
NEMA 13 UL 50; NEMA 4 UL 50; NEMA 4X UL 50; NEMA 13 CSA C22.2 No 94; NEMA 4 CSA C22.2 No 94; NEMA 4X CSA C22.2 No 94
Product Certifications
CSA; UL; GOST; CCC
Resistance To Electrostatic Discharge
6 kV on contact (on metal parts) IEC 61000-4-2; 8 kV in free air (in insulating parts) IEC 61000-4-2
Resistance To Fast Transients
2 kV IEC 61000-4-4
Ambient Air Temperature For Storage
-40 to 158°F (-40 to 70°C)
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27; 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Product Or Component Type
Complete pilot light
Protective Treatment
TC
Light Block Supply
Direct
Bulb Base
Integral LED
Rated Supply Voltage
12 to 24 V AC/DC
Resistance To Electromagnetic Fields
9.14 V/m (10 V/m) IEC 61000-4-3
IP Degree Of Protection
IP65 IEC 60529
Rated Insulation Voltage
250 V 2)EN/IEC 60947-1
Electrical Shock Protection Class
Class II IEC 61140
Current Consumption
15 mA
Ambient Air Temperature For Operation
-13 to 158°F (-25 to 70°C)
Surge Withstand
1 kV direct contact IEC 61000-4-5; 2 kV in free air IEC 61000-4-5
Signalling Type
Steady
Vibration Resistance
+/- 3 mm 2 to 500 Hz)IEC 60068-2-6; 5 gn 2 to 500 Hz)IEC 60068-2-6
Electromagnetic Emission
Class B EN 55011
Rated Impulse Withstand Voltage
4 kV EN/IEC 60947-1
Supply Voltage Limits
6 to 30 V AC/DC
Operating Position
Any position
Connections - Terminals
Faston connectors 2.8 x 0.5 mm
Device Short Name
XB6
[Us] Rated Supply Voltage
12...24 V AC/DC
Range of Product
Harmony XB6

Description

Push Button Light Module 240Vac 15A Xb6
