Shop SCHNEIDER ELECTRIC

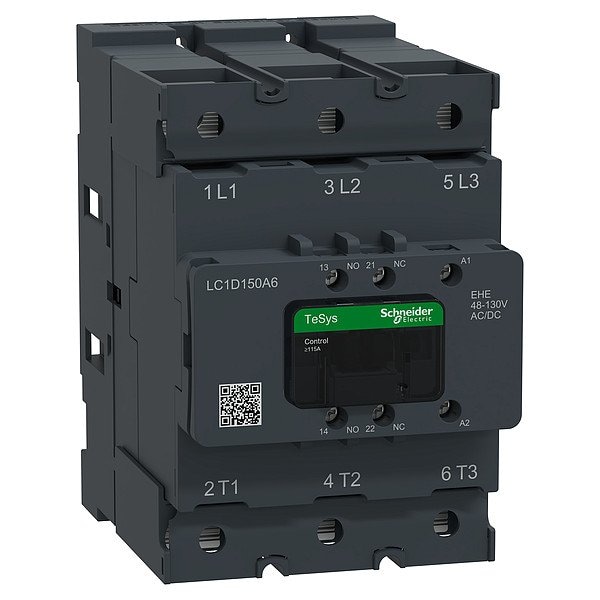

CTR Deca 150A 3P 48-130V ACDC Lug

  • Mfr # LC1D150A6EHE

  • Zoro # G222841693

product price:
$
1,050.99
/ea
Free Shipping & Returns

Key Features

Minimum Operating Temperature
-40 Degrees F
Terminal Connection Type
Box Lugs
Series
Tesys Deca
Includes Auxiliary Contacts
Yes
Standards
CB Scheme, CCC, CE, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, cULus, EN/IEC 60947-4-1, EN/IEC 60947-5-1, EU-RO-MR by DNV-GL, GB/T 14048.4, GB/T 14048.5, JIS C8201-4-1, JIS C8201-5-1, UKCA, UL 60947-4-1, UL 60947-5-1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LC1D150A6EHE
Zoro #
G222841693
UPC #
-
Country of Origin
Multiple

Dimensions

Overall Height
5.98 in
Overall Depth
6.1 in
Overall Width
3.9 in

Details

Minimum Operating Temperature
-40 Degrees F
Terminal Connection Type
Box Lugs
Series
Tesys Deca
Includes Auxiliary Contacts
Yes
Standards
CB Scheme, CCC, CE, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, cULus, EN/IEC 60947-4-1, EN/IEC 60947-5-1, EU-RO-MR by DNV-GL, GB/T 14048.4, GB/T 14048.5, JIS C8201-4-1, JIS C8201-5-1, UKCA, UL 60947-4-1, UL 60947-5-1
Embedded Surge Suppressor
Yes
Resistance Properties
Fire Resistant, Insulation Resistant, Shock Resistant, Vibration Resistant
Coil Voltage
48-130V AC/DC
Number of Normally Open Main Contacts
3
Maximum Voltage Rating
440V
Frequency
50/60 Hz
Number of Poles
3
Mechanical Operating Durability
8,000,000
Electrical Operating Durability
500,000, 850,000
Maximum Operating Temperature
140 Degrees F
Mounting Style
Plate
Number of Auxillary Contacts
2
Full Load Current - Resistive
Not Rated
Reversing Capability
Non-Reversing
Full Load Current - Inductive
150 A
Phase
Three
NEMA Enclosure Rating
No Enclosure
Auxiliary Contact Form
1NO/1NC
Contactor Style
IEC
Item
IEC Contactor

Description

IEC Contactor, Auxiliary Contact Form 1NO/1NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 48-130V AC/DC, Number of Poles 3, Full Load Current - Inductive 150 A, Full Load Current - Resistive Not Rated, Reversing Capability Non-Reversing, Overall Height 5.98 in, Overall Width 3.9 in, Terminal Connection Type Box Lugs, Frame Size Not Applicable, Mounting Style Plate, Series Tesys Deca, Number of Auxillary Contacts 2, Contactor Style IEC, Phase Three

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
