Shop SCHNEIDER ELECTRIC

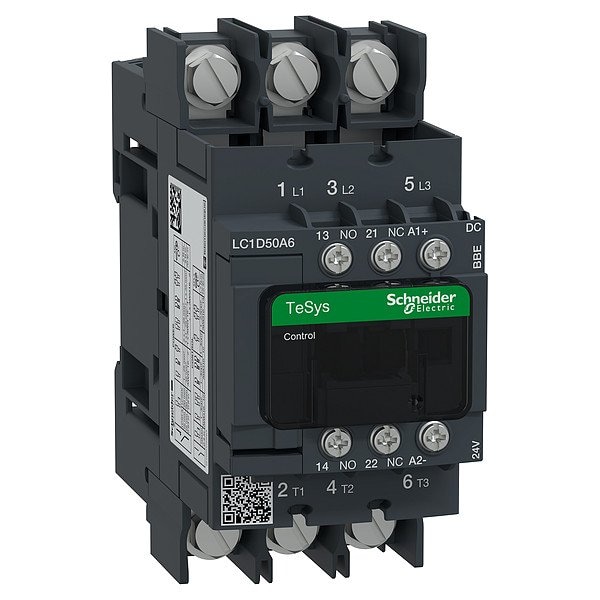

CONT 3P 50A AC3 NO+NC 24V DC LUGS

  • Mfr # LC1D50A6BBE

  • Zoro # G822823778

product price:
$
432.99
/ea
Free Shipping & Returns

Key Features

Includes Auxiliary Contacts
Yes
Terminal Connection Type
Box Lugs
Phase
Three
Series
Tesys Deca
Frequency
50/60 Hz
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LC1D50A6BBE
Zoro #
G822823778
UPC #
-
Country of Origin
Multiple

Dimensions

Overall Height
4.8 in
Overall Width
2.17 in
Overall Depth
4.72 in

Details

Includes Auxiliary Contacts
Yes
Terminal Connection Type
Box Lugs
Phase
Three
Series
Tesys Deca
Frequency
50/60 Hz
Minimum Operating Temperature
-40 Degrees F
Auxiliary Contact Form
1NO/1NC
Mechanical Operating Durability
6,000,000
Electrical Operating Durability
500,000, 850,000
Horsepower @ Three Phase - 480V AC
40 hp
NEMA Enclosure Rating
No Enclosure
Resistance Properties
Fire Resistant, Insulation Resistant, Shock Resistant, Vibration Resistant
Item
IEC Contactor
Standards
CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS (Lloyds Register of Shipping), UKCA, UL 60947-4-1, UL Listed
Reversing Capability
Non-Reversing
Number of Normally Open Main Contacts
3
Maximum Voltage Rating
480V AC
Full Load Current - Resistive
Not Rated
Coil Voltage
24V DC
Number of Auxillary Contacts
2
Contactor Style
IEC
Full Load Current - Inductive
50 A
Maximum Operating Temperature
140 Degrees F
Embedded Surge Suppressor
Yes
Number of Poles
3

Description

IEC Contactor, Auxiliary Contact Form 1NO/1NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 24V DC, Number of Poles 3, Full Load Current - Inductive 50 A, Full Load Current - Resistive Not Rated, Reversing Capability Non-Reversing, Overall Height 4.8 in, Overall Width 2.17 in, Terminal Connection Type Box Lugs, Frame Size Not Applicable, Series Tesys Deca, Number of Auxillary Contacts 2, Contactor Style IEC, Horsepower @ Three Phase - 480V AC 40 hp, Phase Three
