Shop SCHNEIDER ELECTRIC

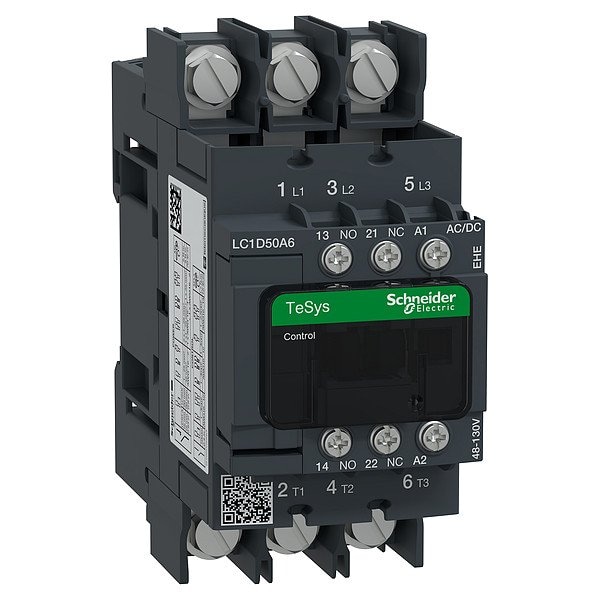

CONT 3P 50A AC3 NO+NC 48-130V ACDC LUGS

  • Mfr # LC1D50A6EHE

  • Zoro # G722823557

product price:
$
569.99
/ea
Free Shipping & Returns

Key Features

Phase
Three
Includes Auxiliary Contacts
Yes
Electrical Operating Durability
500,000, 850,000
Number of Auxillary Contacts
2
Auxiliary Contact Form
1NO/1NC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LC1D50A6EHE
Zoro #
G722823557
UPC #
-
Country of Origin
Multiple

Dimensions

Overall Height
4.8 in
Overall Depth
4.72 in
Overall Width
2.17 in

Details

Phase
Three
Includes Auxiliary Contacts
Yes
Electrical Operating Durability
500,000, 850,000
Number of Auxillary Contacts
2
Auxiliary Contact Form
1NO/1NC
Reversing Capability
Non-Reversing
Series
Tesys Deca
Maximum Operating Temperature
140 Degrees F
Terminal Connection Type
Box Lugs
Full Load Current - Resistive
Not Rated
Minimum Operating Temperature
-40 Degrees F
Coil Voltage
48-130V AC/DC
NEMA Enclosure Rating
No Enclosure
Maximum Voltage Rating
480V AC
Resistance Properties
Fire Resistant, Insulation Resistant, Shock Resistant, Vibration Resistant
Standards
CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS (Lloyds Register of Shipping), UKCA, UL 60947-4-1, UL Listed
Number of Normally Open Main Contacts
3
Full Load Current - Inductive
50 A
Mechanical Operating Durability
6,000,000
Horsepower @ Three Phase - 480V AC
40 hp
Number of Poles
3
Item
IEC Contactor
Frequency
50/60 Hz
Embedded Surge Suppressor
Yes
Contactor Style
IEC

Description

IEC Contactor, Auxiliary Contact Form 1NO/1NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 48-130V AC/DC, Number of Poles 3, Full Load Current - Inductive 50 A, Full Load Current - Resistive Not Rated, Reversing Capability Non-Reversing, Overall Height 4.8 in, Overall Width 2.17 in, Terminal Connection Type Box Lugs, Frame Size Not Applicable, Series Tesys Deca, Number of Auxillary Contacts 2, Contactor Style IEC, Horsepower @ Three Phase - 480V AC 40 hp
