Shop SCHNEIDER ELECTRIC

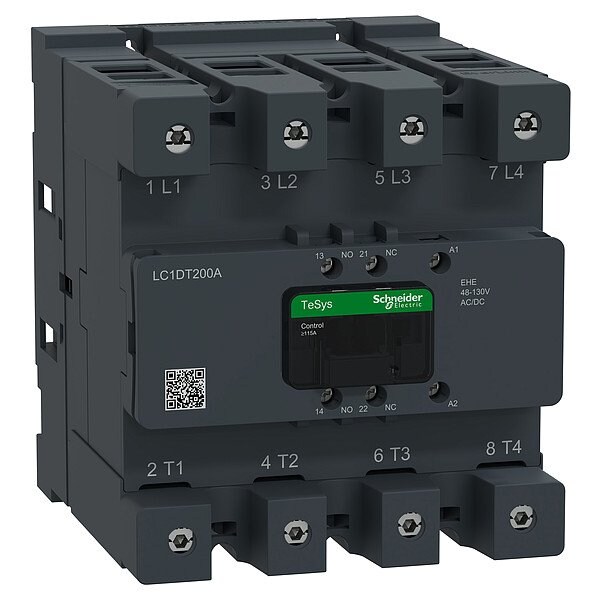

CTR Deca 200A 4P 48-130V ACDC EvLk

  • Mfr # LC1DT200AEHE

  • Zoro # G822841550

product price:
$
1,015.99
/ea
Free Shipping & Returns

Key Features

Includes Auxiliary Contacts
Yes
Maximum Operating Temperature
140 Degrees F
Number of Auxillary Contacts
2
Full Load Current - Resistive
Not Rated
Reversing Capability
Non-Reversing
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LC1DT200AEHE
Zoro #
G822841550
UPC #
-
Country of Origin
Multiple

Dimensions

Overall Width
5.2 in
Overall Depth
6.1 in
Overall Height
5.98 in

Details

Includes Auxiliary Contacts
Yes
Maximum Operating Temperature
140 Degrees F
Number of Auxillary Contacts
2
Full Load Current - Resistive
Not Rated
Reversing Capability
Non-Reversing
Minimum Operating Temperature
-40 Degrees F
Embedded Surge Suppressor
Yes
NEMA Enclosure Rating
No Enclosure
Standards
CB Scheme, CCC, CE, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, cULus, EN/IEC 60947-4-1, EN/IEC 60947-5-1, EU-RO-MR by DNV-GL, GB/T 14048.4, GB/T 14048.5, JIS C8201-4-1, JIS C8201-5-1, UKCA, UL 60947-4-1, UL 60947-5-1
Number of Poles
4
Mechanical Operating Durability
8,000,000
Series
Tesys Deca
Contactor Style
IEC
Number of Normally Open Main Contacts
4
Auxiliary Contact Form
1NO/1NC
Item
IEC Contactor
Electrical Operating Durability
380,000
Phase
Single
Maximum Voltage Rating
440V
Frequency
50/60 Hz
Coil Voltage
48-130V AC/DC
Mounting Style
Plate
Terminal Connection Type
Screw Terminals
Full Load Current - Inductive
200 A
Resistance Properties
Fire Resistant, Insulation Resistant, Shock Resistant, Vibration Resistant

Description

IEC Contactor, Auxiliary Contact Form 1NO/1NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 48-130V AC/DC, Number of Poles 4, Full Load Current - Inductive 200 A, Full Load Current - Resistive Not Rated, Reversing Capability Non-Reversing, Overall Height 5.98 in, Overall Width 5.2 in, Terminal Connection Type Screw Terminals, Frame Size Not Applicable, Mounting Style Plate, Series Tesys Deca, Number of Auxillary Contacts 2, Contactor Style IEC, Phase Single
