Shop SCHNEIDER ELECTRIC

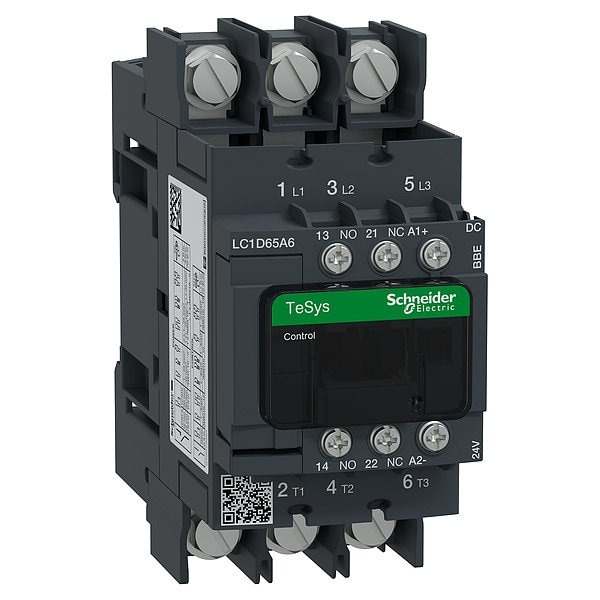

CONT 3P 65A AC3 NO+NC 24V DC LUGS

  • Mfr # LC1D65A6BBE

  • Zoro # G122823959

product price:
$
549.99
/ea
Free Shipping & Returns

Key Features

Number of Auxillary Contacts
2
Minimum Operating Temperature
-40 Degrees F
Phase
Three
NEMA Enclosure Rating
No Enclosure
Mechanical Operating Durability
6,000,000
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
LC1D65A6BBE
Zoro #
G122823959
UPC #
-
Country of Origin
Multiple
Number of Auxillary Contacts
2
Minimum Operating Temperature
-40 Degrees F
Phase
Three
NEMA Enclosure Rating
No Enclosure
Mechanical Operating Durability
6,000,000
Reversing Capability
Non-Reversing
Includes Auxiliary Contacts
Yes
Coil Voltage
24V DC
Resistance Properties
Fire Resistant, Insulation Resistant, Shock Resistant, Vibration Resistant
Series
Tesys Deca
Electrical Operating Durability
500,000, 850,000
Standards
CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS (Lloyds Register of Shipping), UKCA, UL 60947-4-1, UL Listed
Frequency
50/60 Hz
Full Load Current - Inductive
65 A
Maximum Operating Temperature
140 Degrees F
Horsepower @ Three Phase - 480V AC
40 hp
Contactor Style
IEC
Number of Normally Open Main Contacts
3
Terminal Connection Type
Box Lugs
Embedded Surge Suppressor
Yes
Item
IEC Contactor
Full Load Current - Resistive
Not Rated
Number of Poles
3
Maximum Voltage Rating
480V AC
Auxiliary Contact Form
1NO/1NC

Description

IEC Contactor, Auxiliary Contact Form 1NO/1NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 24V DC, Number of Poles 3, Full Load Current - Inductive 65 A, Full Load Current - Resistive Not Rated, Reversing Capability Non-Reversing, Overall Height 4.8 in, Overall Width 2.17 in, Terminal Connection Type Box Lugs, Frame Size Not Applicable, Series Tesys Deca, Number of Auxillary Contacts 2, Contactor Style IEC, Horsepower @ Three Phase - 480V AC 40 hp, Phase Three
