Shop SCHNEIDER ELECTRIC

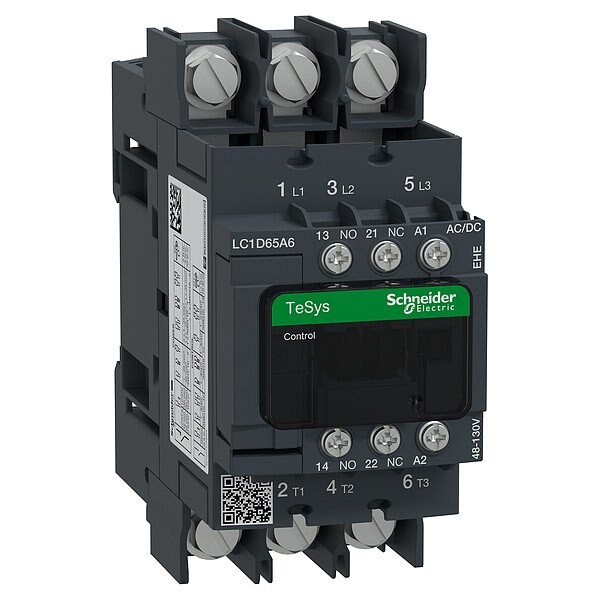

CONT 3P 65A AC3 NO+NC 48-130V ACDC LUGS

  • Mfr # LC1D65A6EHE

  • Zoro # G822823495

product price:
$
469.99
/ea
Free Shipping & Returns

Key Features

Frequency
50/60 Hz
Maximum Operating Temperature
140 Degrees F
Overall Height
4.8 in
Mounting Style
DIN Rail, Plate
Maximum Voltage Rating
480V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LC1D65A6EHE
Zoro #
G822823495
UPC #
-
Country of Origin
Brazil

Dimensions

Overall Height
4.8 in
Overall Depth
4.72 in
Overall Width
2.17 in

Details

Frequency
50/60 Hz
Maximum Operating Temperature
140 Degrees F
Mounting Style
DIN Rail, Plate
Item
IEC Contactor
Maximum Voltage Rating
480V AC
Series
Tesys Deca
Contactor Style
IEC
Full Load Current - Resistive
Not Rated
Horsepower @ Three Phase - 480V AC
40 hp
Standards
CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS (Lloyds Register of Shipping), UKCA, UL 60947-4-1, UL Listed
Coil Voltage
48-130V AC/DC
Minimum Operating Temperature
-40 Degrees F
Phase
Three
Number of Normally Open Main Contacts
3
Terminal Connection Type
Box Lugs
Number of Auxillary Contacts
2
Mechanical Operating Durability
6,000,000
Number of Poles
3
Includes Auxiliary Contacts
Yes
Resistance Properties
Fire Resistant, Insulation Resistant, Shock Resistant, Vibration Resistant
Embedded Surge Suppressor
Yes
NEMA Enclosure Rating
No Enclosure
Auxiliary Contact Form
1NO/1NC
Reversing Capability
Non-Reversing
Electrical Operating Durability
500,000, 850,000
Full Load Current - Inductive
65 A

Description

IEC Contactor, Auxiliary Contact Form 1NO/1NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 48-130V AC/DC, Number of Poles 3, Full Load Current - Inductive 65 A, Full Load Current - Resistive Not Rated, Reversing Capability Non-Reversing, Overall Height 4.8 in, Overall Width 2.17 in, Terminal Connection Type Box Lugs, Frame Size Not Applicable, Mounting Style DIN Rail, Plate, Series Tesys Deca, Number of Auxillary Contacts 2, Contactor Style IEC
